Effect of Moisture on the Behaviour of an Extruded Clay Paste

Abstract:

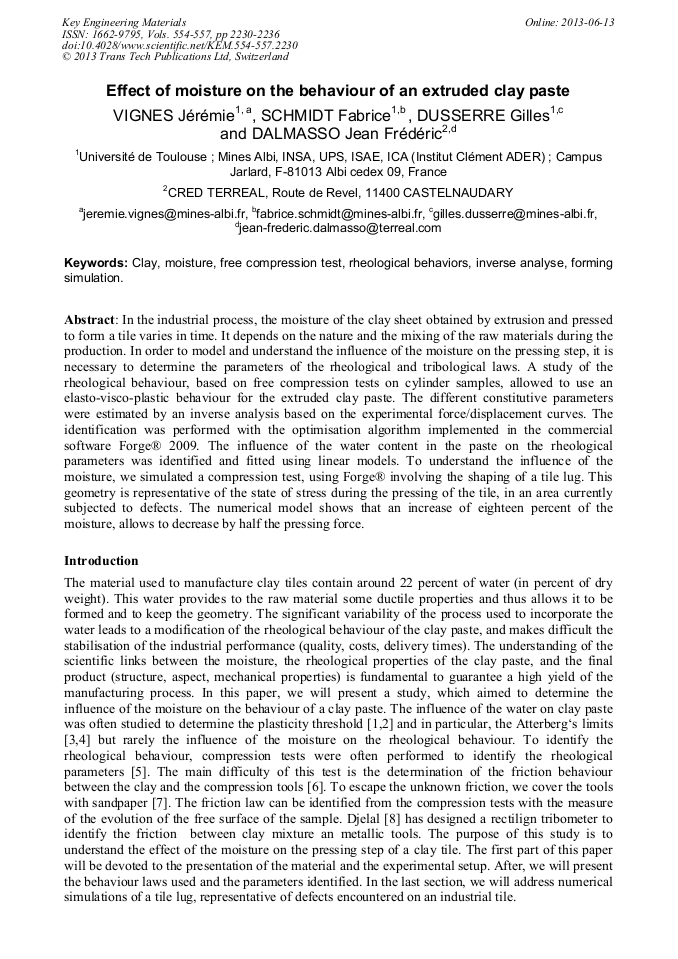

Article Preview

In the industrial process, the moisture of the clay sheet obtained by extrusion and pressed to form a tile varies in time. It depends on the nature and the mixing of the raw materials during the production. In order to model and undersand the influence of the moisture on the pressing step, it is necessary to determine the parameters of the rheological and tribological laws. A study of the rheological behaviour, based on free compression tests on cylinder samples, allowed to use an elasto-visco-plastic behaviour for the extruded clay paste. The different constitutive parameters were estimated by an inverse analysis based on the experimental force/displacement curves. The identification was performed with the optimisation algorithm implemented in the commercial software Forge® 2009. The influence of the water content in the paste on the rheological parameters was identified and fitted using linear models. The friction factor was measured from tests on a rectilign tribometer. To understand the influence of the moisture, we simulated a compression test, using Forge® involving the shaping of a tile lug. This geometry is representative of the state of stress during the pressing of the tile, in an area currently sujected to defects. The numerical model show that an increase of eighteen percent of the moisture allows to decrease by half the pressing force.

Info:

Periodical:

Key Engineering Materials (Volumes 554-557)

Edited by:

Ricardo Alves de Sousa and Robertt Valente

Pages:

2230-2236

Citation:

J. Vignes et al., "Effect of Moisture on the Behaviour of an Extruded Clay Paste", Key Engineering Materials, Vols. 554-557, pp. 2230-2236, 2013

Online since:

June 2013

Export:

Price:

$38.00

[1] M. J. Ribiero, J. M. Ferreira, J. A. Labrincha, Plastic behaviour of different ceramic pastes processed by extrusion, Applied Clay Science, 31, pp.515-519, (2005).

DOI: https://doi.org/10.1016/j.ceramint.2004.06.016

[2] B. Baran, T. Ertürk, Y. Sarikaya, T. Alemdaroglu, Workability test method for metals applied to examine a workability measure (plastic limit) for clays, Applied clay science, 20, P53-63.

DOI: https://doi.org/10.1016/s0169-1317(01)00042-4

[3] C. De Oliveira Modesto, A. M. Bermandin, Determination of the clay plasticity: Indentation method versus Pfefferkorm method, Applied Clay Science, 40, pp.15-18, (2008).

DOI: https://doi.org/10.1016/j.clay.2007.06.007

[4] F. A. de Andrade, H. A. Al-Qureshi, D. Hotza, Measuring and Modelling the Plasticity of Clays, Materials Research, 13, pp.395-399, (2010).

DOI: https://doi.org/10.1590/s1516-14392010000300019

[5] Y. Gayou, E. Padayodi, K. E. Atcholi, D. Mezzane, M. A. Fremy, P. Saint Gregoire, Etude comparative du comportement mécanique des matrices de quatre types d'argile, (2008).

[6] E. Foudrinier, Etude numérique et expérimentale du procédé d'extrusion de pâtes argileuses, Thesis, Ecole Nationale des Mines de Paris, (2007).

[7] J. Vignes, F. Schmidt, G. Dusserre, O. De Almeida, J. F. Dalmasso, Numerical simulation of clay tiles compression, Key Engineering Materials, 504-506, pp.1403-1408, (2012).

DOI: https://doi.org/10.4028/www.scientific.net/kem.504-506.1403

[8] C. Djelal, Designing and perfecting a tribometer for study of friction of a concentrated clay water mixture against a metallic surface, Materials and structures, 34, pp.51-58, (2001).

DOI: https://doi.org/10.1007/bf02482200

[9] F. Moore, Rheology of ceramics systems. Maclaren and Sons, London, pp.51-57.

[10] M.G. Cockroft, D.J. Latham, Ductility and workability of metals, Journal of the institute of metals, pp.33-39, (1968).
