Effect of Cryogenic Treatment on the Mechanical Properties of 18Ni-300 Grade Maraging Steel Built Using the Direct Metal Laser Sintering (DMLS) Technology

Abstract:

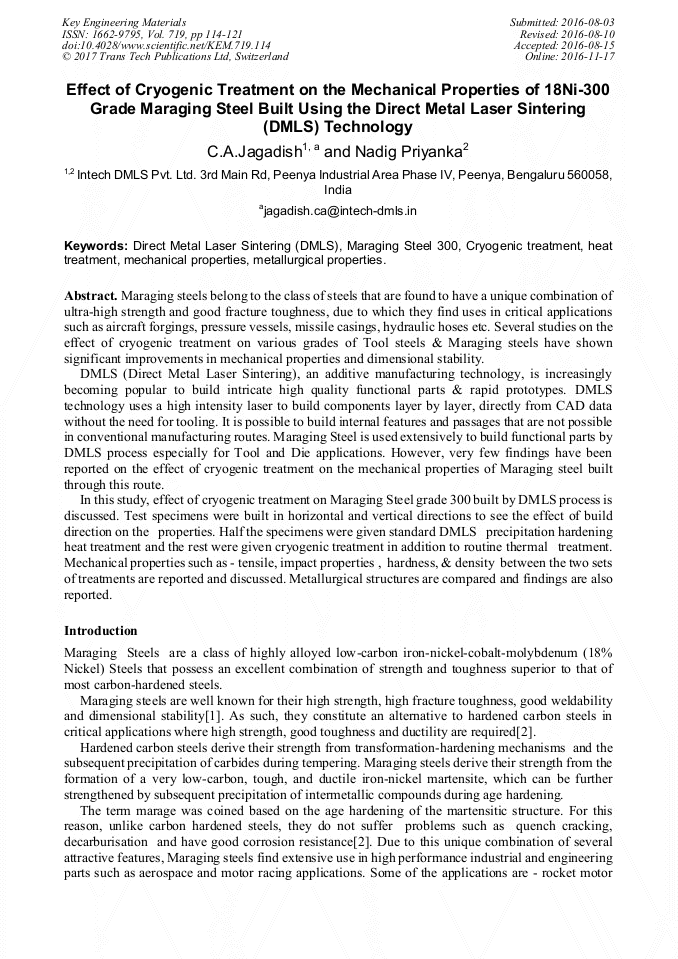

Article Preview

Maraging steels belong to the class of steels that are found to have a unique combination of ultra-high strength and good fracture toughness, due to which they find uses in critical applications such as aircraft forgings, pressure vessels, missile casings, hydraulic hoses etc. Several studies on the effect of cryogenic treatment on various grades of Tool steels & Maraging steels have shown significant improvements in mechanical properties and dimensional stability.DMLS (Direct Metal Laser Sintering), an additive manufacturing technology, is increasingly becoming popular to build intricate high quality functional parts & rapid prototypes. DMLS technology uses a high intensity laser to build components layer by layer, directly from CAD data without the need for tooling. It is possible to build internal features and passages that are not possible in conventional manufacturing routes. Maraging Steel is used extensively to build functional parts by DMLS process especially for Tool and Die applications. However, very few findings have been reported on the effect of cryogenic treatment on the mechanical properties of Maraging steel built through this route. In this study, effect of cryogenic treatment on Maraging Steel grade 300 built by DMLS process is discussed. Test specimens were built in horizontal and vertical directions to see the effect of build direction on the properties. Half the specimens were given standard DMLS precipitation hardening heat treatment and the rest were given cryogenic treatment in addition to routine thermal treatment. Mechanical properties such as - tensile, impact properties , hardness, & density between the two sets of treatments are reported and discussed. Metallurgical structures are compared and findings are also reported.

Info:

Periodical:

Edited by:

Prof. Alan Kin Tak Lau and Prof. Zengtao Chen

Pages:

114-121

Citation:

C.A. Jagadish and N. Priyanka, "Effect of Cryogenic Treatment on the Mechanical Properties of 18Ni-300 Grade Maraging Steel Built Using the Direct Metal Laser Sintering (DMLS) Technology", Key Engineering Materials, Vol. 719, pp. 114-121, 2017

Online since:

November 2016

Export:

Price:

$41.00

* - Corresponding Author

[1] Latrobe specialty steel company Marvac 300 vim-var data sheet, technical report (2009).

[2] Reardon, A.C. (2011b) Metallurgy for the Non-Metallurgist, Second edition.

[3] Bhavar, V., Kattire, P. and Pawar, P. (2014) A Review on Powder Bed Fusion Technology of Additive Manufacturing, 4th International conference and exhibition on Additive Manufacturing Technologies-AM-(2014).

[4] T. M. Mower and M. J. Long, Mechanical behavior of additive manufactured, powder-bed laser-fused materials, Materials Science and Engineering: A, vol. 651, p.198–213, Jan. (2016).

DOI: https://doi.org/10.1016/j.msea.2015.10.068

[5] A. Akhbarizadeh, A. Shafyei, and M. A. Golozar, Effects of cryogenic treatment on wear behavior of D6 tool steel, Materials & Design, vol. 30, no. 8, p.3259–3264, (2016).

DOI: https://doi.org/10.1016/j.matdes.2008.11.016

[6] He, Y., Yang, K., Qu, W., Kong, F. and Su, G. (2002) Strengthening and toughening of a 2800-MPa grade maraging steel, Materials Letters, 56(5), p.763–769.

DOI: https://doi.org/10.1016/s0167-577x(02)00610-9

[7] ASM International, A. (2016 b)Related assets: Available at: http: /goo. gl/iOoVBd (Accessed: 16/June/2016).

[8] Podgornik, B., Paulin, I., Zajec, B., Jacobson, S. and Leskovšek, V. (2016) Deep cryogenic treatment of tool steels, Journal of Materials Processing Technology, 229, p.398–406.

DOI: https://doi.org/10.1016/j.jmatprotec.2015.09.045

[9] Akhbarizadeh, A., Javadpour, S., Amini, K. and Yaghtin, A.H. (2013) Investigating the effect of ball milling during the deep cryogenic heat treatment of the 1. 2080 tool steel, Vacuum, 90, p.70–74.

DOI: https://doi.org/10.1016/j.vacuum.2012.09.023

[10] Niu, H.J. and Chang, I.T.H. (1999) Selective laser sintering of gas and water atomized high speed steel powders, Scripta Materialia, 41(1), p.25–30.

DOI: https://doi.org/10.1016/s1359-6462(99)00089-5

[11] Kempen, K., Yasa, E., Thijs, L., Kruth, J. - P. and Van Humbeeck, J. (2011) Microstructure and mechanical properties of selective laser melted 18Ni-300 steel, Physics Procedia, 12, p.255–263.

DOI: https://doi.org/10.1016/j.phpro.2011.03.033
