Comparative Rheology Techniques for Assessment of MIM Titanium Metal Powder Feedstocks

Abstract:

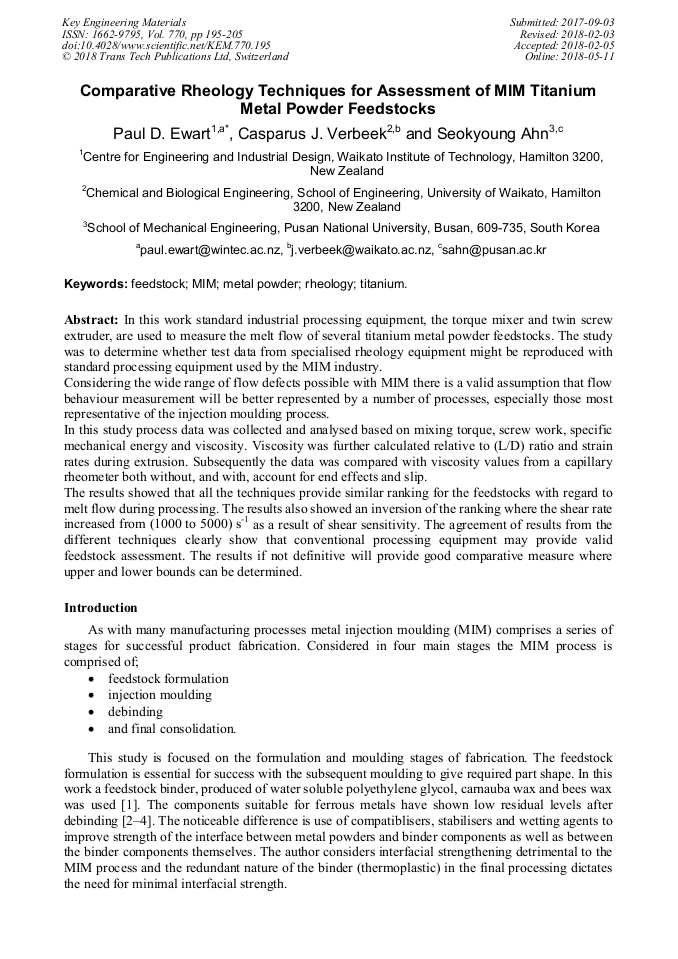

Article Preview

In this work standard industrial processing equipment, the torque mixer and twin screw extruder, are used to measure the melt flow of several titanium metal powder feedstocks. The study was to determine whether test data from specialised rheology equipment might be reproduced with standard processing equipment used by the MIM industry.Considering the wide range of flow defects possible with MIM there is a valid assumption that flow behaviour measurement will be better represented by a number of processes, especially those most representative of the injection moulding process.In this study process data was collected and analysed based on mixing torque, screw work, specific mechanical energy and viscosity. Viscosity was further calculated relative to (L/D) ratio and strain rates during extrusion. Subsequently the data was compared with viscosity values from a capillary rheometer both without, and with, account for end effects and slip.The results showed that all the techniques provide similar ranking for the feedstocks with regard to melt flow during processing. The results also showed an inversion of the ranking where the shear rate increased from (1000 to 5000) s-1 as a result of shear sensitivity. The agreement of results from the different techniques clearly show that conventional processing equipment may provide valid feedstock assessment. The results if not definitive will provide good comparative measure where upper and lower bounds can be determined.

Info:

Periodical:

Edited by:

Huiping Tang, Ma Qian, Yong Liu, Peng Cao and Gang Chen

Pages:

195-205

Citation:

P. D. Ewart et al., "Comparative Rheology Techniques for Assessment of MIM Titanium Metal Powder Feedstocks", Key Engineering Materials, Vol. 770, pp. 195-205, 2018

Online since:

May 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] P. Ewart, S. Ahn, D. Zhang, and S.J. Park, Encapsulation of titanium powders during binder removal from a metal injection moulded part, in: Adv. Powder Metall. Part. Mater. - 2011, Proc. 2011 Int. Conf. Powder Metall. Part. Mater. PowderMet 2011, (2011).

[2] R. German and A. Bose, Injection Molding of Metals and Ceramics,, Metal Powder Industries Federation, Princeton (1997).

[3] J. Grohowski and J. Strauss, Effect of Atmosphere Pressure on Thermal Debinding Rate Behavior, in: Ed. by MPIF, PIM Compil. II. Molding, Debinding, Sinter., Metal Powder Industries Federation, Princeton, NJ (2007).

[4] J.M. Adames, Characterization of Polymeric Binders for Metal Injection Molding (MIM) Process, The University of Akron, (2007).

[5] S. Park, Y. Wu, D. Heaney, X. Zou, G. Gai, and R. German, Metall. Mater. Trans. A Phys. Metall. Mater. Sci., 40, 215–222 (2008).

[6] G. Larsen, Z. Cheng, T. Barriere, B. Liu, and J. Gelin, Simulation of Micro Injection Moulding with Emphasis on the Formulation of Feedstock Viscosity: Use of Nonequilibrium Molecular Dynamics for the Determination of Viscosity of Multi-body Fluid., in: 14th Int. ESAFORM Conf. Mater. Form., (2011).

[7] J. Hidalgo, A. Jiménez-Morales, T. Barriere, J. Gelin, and J. Torralba, Powder Technol., 273, (2015).

[8] B. Hausnerova, Polimery, 55, (2010).

[9] M. Sardarian, O. Mirzaee, and A. Habibolahzadeh, J. Mater. Process. Technol., 243, (2017).

[10] P. Ewart, D. Zhang, and S. Ahn, Removal of the water soluble binder components from titanium and titanium alloy powder compacts produced by MIM,, (2012).

[11] ThermoPRISM, (2002).

[12] Shimadzu, C228-E006A, (n.d.).

[13] J. Grohowski and J. Strauss, Effect of Atmosphere Pressure on Thermal Debinding Behavior, in: Ed. by MPIF, PIM Compil. II. Molding, Debinding, Sinter., Metal Powder Industries Federation, Princeton, NJ (2007), p.105–111.

[14] A. Marquez, J. Quijano, and M. Gaulin, Polym. Eng. Sci., 36, (1996).

[15] P. Buskirk, Using your plasticorder measuring head to determine melt viscosity.,, Brabender GmbH, Duisburg (1990).

[16] A. Einstein, Ann. Phys., 17, 549–560 (1905).

[17] P.C. Knight, Powder Technol., 119, 14–25 (2001).

[18] R. German, Final Report; on the Workshop on Scientific Issues for Medical and Dental Applications of Micro/Nano Powder Injection Molding – Molding, Sintering, Modeling, and Commercial Applications,, Lake Buena Vista (Orlando), Florida, USA (2009).

[19] G. Parfitt and H. Barnes, The dispersion of fine particles in liquid media, in: Ed. by N. Harnby, M. Edwards, and A. Neinow, Mix. Process Ind., Second, Butterworth-Heinemann, Woburn, MA (2000), p.19.

[20] T. Domenech, E. Peuvrel-Disdier, and B. Vergnes, Compos. Sci. Technol., 75, 7–14 (2013).
