Kinetical Investigations on Lamellar CalciumAluminateChromateHydrates with High Speed Detector

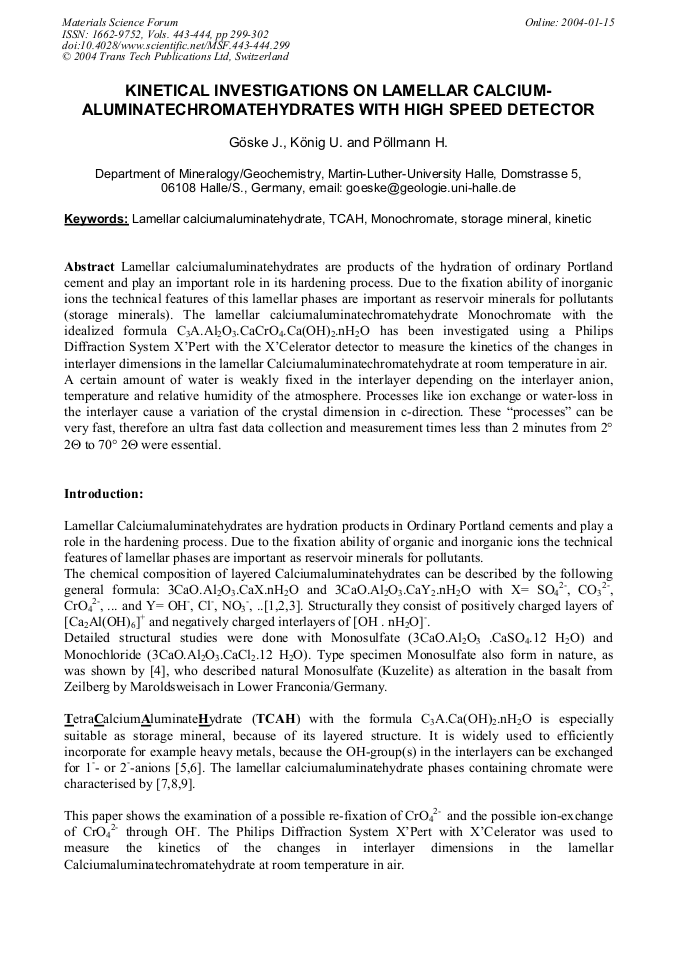

Article Preview

Lamellar calciumaluminatehydrates are products of the hydration of ordinary Portland cement and play an important role in its hardening process. Due to the fixation ability of inorganic ions the technical features of this lamellar phases are important as reservoir minerals for pollutants (storage minerals). The lamellar calciumaluminatechromatehydrate Monochromate with the idealized formula C3A.Al2O3.CaCrO4.Ca(OH)2.nH2O has been investigated using a Philips Diffraction System X'Pert with the X'Celerator detector to measure the kinetics of the changes in interlayer dimensions in the lamellar calciumaluminatechromatehydrate at room temperature in air. A certain amount of water is weakly fixed in the interlayer depending on the interlayer anion, temperature and relative humidity of the atmosphere. Processes like ion exchange or water-loss in the interlayer cause a variation of the crystal dimension in c-direction. These "processes" can be very fast, therefore an ultra fast data collection and measurement times less than 2 minutes from 2° 2Θ to 70° 2Θ were essential.



Materials Science Forum (Volumes 443-444)

Edited by:

Yvonne Andersson, Eric J. Mittemeijer and Udo Welzel




J. Göske et al., "Kinetical Investigations on Lamellar CalciumAluminateChromateHydrates with High Speed Detector", Materials Science Forum, Vols. 443-444, pp. 299-302, 2004

Online since:

January 2004




[1] H. Pöllmann et al., N. Jb. Miner. Mh. 9 (1997), pp.423-432.

[2] W. Feitknecht, H.W. Buser, Helv. Chimica Acta 34 (1951), pp.128-142.

[3] H. -J. Kuzel, N. Jb. Miner. Mh. (8) (1971), pp.363-374.

[4] H. Pöllmann, PhD-thesis (1984), Erlangen.

[5] R. Allmann, N. Jb. Miner. Mh. (3) (1977), pp.136-144.

[6] A. Terzis et al., Z. Krist. 181 (1987), pp.29-34.

[7] J. Göske et al., Paar Physica Application Note A31/A04-A (1997).

[8] S. Auer et al., Eur. J. Min. Beih. 1, Vol. 2 (1991), p.8.

[9] S. Auer, PhD-thesis (1992), Erlangen.

[10] J. Göske, PhD-thesis (1998), Halle (Saale) C3A. CaCrO4. 14H2O C3A . 1/2Ca(OH)2. 1/2CaCrO4. 14-18 H2O.
