Characterization of Crystalline Silicon via XRPD

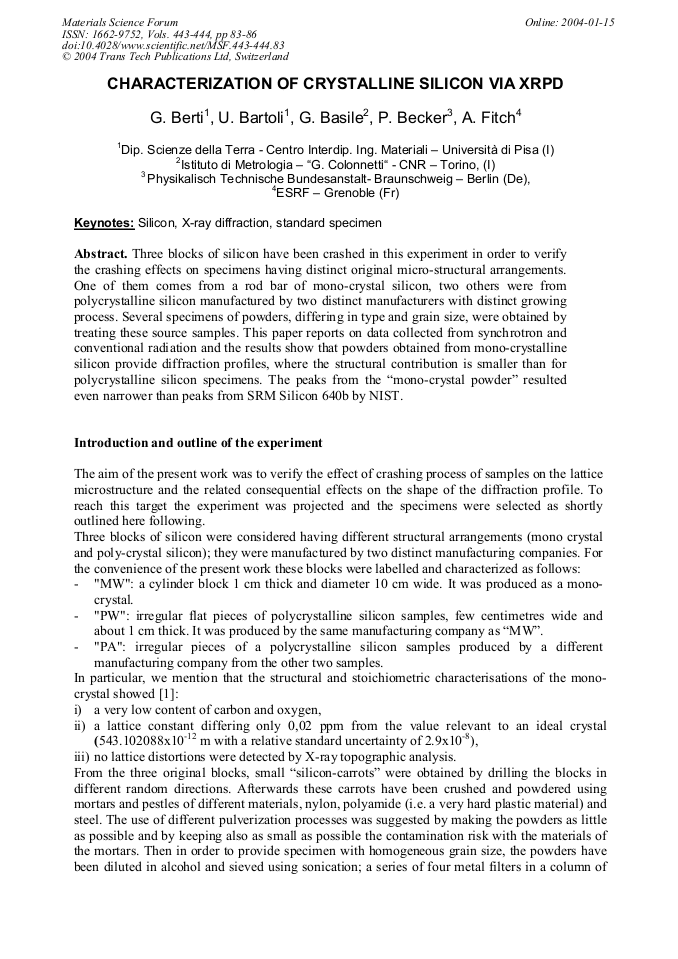

Article Preview

Three blocks of silicon have been crashed in this experiment in order to verify the crashing effects on specimens having distinct original micro-structural arrangements. One of them comes from a rod bar of mono-crystal silicon, two others were from polycrystalline silicon manufactured by two distinct manufacturers with distinct growing process. Several specimens of powders, differing in type and grain size, were obtained by treating these source samples. This paper reports on data collected from synchrotron and conventional radiation and the results show that powders obtained from mono-crystalline silicon provide diffraction profiles, where the structural contribution is smaller than for polycrystalline silicon specimens. The peaks from the 'mono-crystal powder' resulted even narrower than peaks from SRM Silicon 640b by NIST.



Materials Science Forum (Volumes 443-444)

Edited by:

Yvonne Andersson, Eric J. Mittemeijer and Udo Welzel




G. Berti et al., "Characterization of Crystalline Silicon via XRPD", Materials Science Forum, Vols. 443-444, pp. 83-86, 2004

Online since:

January 2004




[1] G. Basile, P. Becker, A. Bergamin, H. Bettin: IEEE Trans. Instr. and Meas. 44 (1995), p.538.

[2] G. Berti, M. Bertoli, E. Burattini, G. Cappuccio, R. Menichini and S. Simeoni: Mater. Sci. Forum 133-136 (1993), p.753.

DOI: 10.4028/

[3] U. Bartoli: “Metodi standard per misure di diffrazione a raggi X” Thesis Dep. of Physics – Univ. of Pisa, (2001).

[4] A. N. Fitch: Mater. Sci. Forum 228-231 (1996), p.219.

[5] G. Berti: Powder Diffraction 16 (2001), p.6.

[6] G. Berti: Mater. Sci. Forum 347-349 (2000), p.309.

[20] [40] [60] [80] 100 14, 55 14, 6 14, 65 14, 7 14, 75 2�2�2�2� Intensity MWm30 NIST640b diff.

[20] [40] [60] [80] 100 14, 55 14, 6 14, 65 14, 7 14, 75 2�2�2�2� Intensity MWf20 NIST640b diff.
