Numerical Analysis on the Dissimilar Channel Angular Pressing by Multi-Pass Rolling

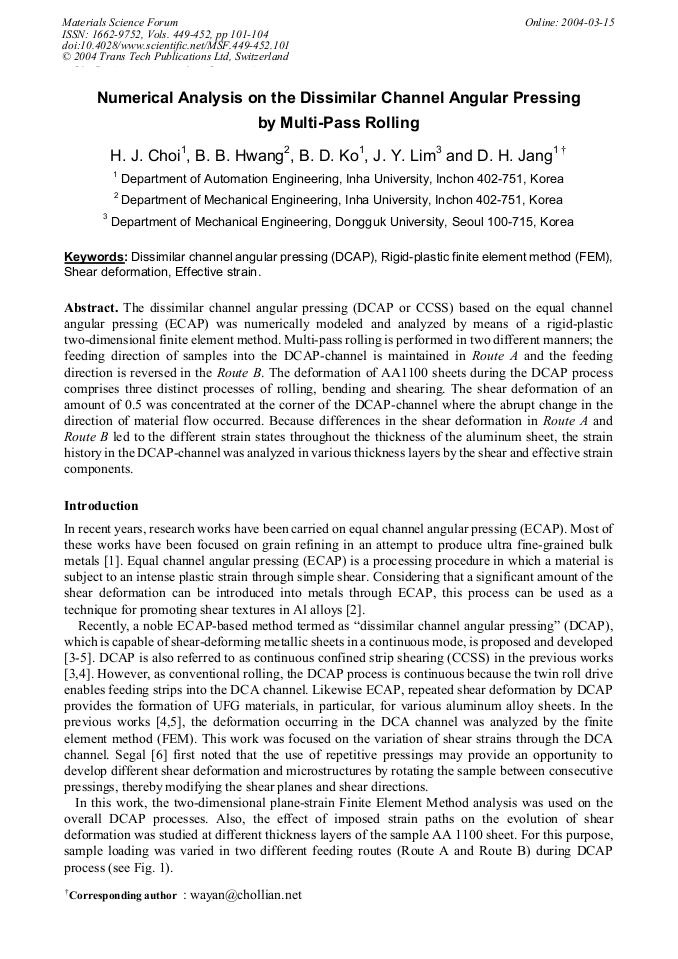

Article Preview

The dissimilar channel angular pressing (DCAP or CCSS) based on the equal channel angular pressing (ECAP) was numerically modeled and analyzed by means of a rigid-plastic two-dimensional finite element method. Multi-pass rolling is performed in two different manners; the feeding direction of samples into the DCAP-channel is maintained in Route A and the feeding direction is reversed in the Route B. The deformation of AA1100 sheets during the DCAP process comprises three distinct processes of rolling, bending and shearing. The shear deformation of an amount of 0.5 was concentrated at the corner of the DCAP-channel where the abrupt change in the direction of material flow occurred. Because differences in the shear deformation in Route A and Route B led to the different strain states throughout the thickness of the aluminum sheet, the strain history in the DCAP-channel was analyzed in various thickness layers by the shear and effective strain components.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




H. J. Choi et al., "Numerical Analysis on the Dissimilar Channel Angular Pressing by Multi-Pass Rolling", Materials Science Forum, Vols. 449-452, pp. 101-104, 2004

Online since:

March 2004




[1] Y. Iwahashi, Z. Horita, M. Nemoto and T. G. Langdon: Acta Mater. Vol. 45 (1997), p.4733.

[2] J.H. Han, H.K. Seok, Y.H. Chung, M.C. Shin and J.C. Lee: Mater. Sci. Eng. Vol. A323 (2002), p.342.

[3] J.C. Lee, H.K. Seok, J.H. Han and Y.H. Chung: Mater. Res. Bull. Vol. 36 (2001), p.997.

[4] H. J. Choi, K. R. Lee, B. B. Hwang and M. Y. Huh: Trans. Mater. Process. Vol. 12, No. 1 (2003), p.43.

[5] G. H. Bae, G. H. Kwon, S. W. Chae, S. I. Kwun, M. H. Kim and S. K. Hwang: J. KSPE Vol. 19, No. 8 (2002), p.187.

[6] V. M. Segal: Mater. Sci. Eng., Vol. A197 (1995), p.157.

[7] SFTC: DEFORM-2D Version 7. 0 Users Manual, (SFTC Inc, 2000).

[8] O. Engler, M. Y. Huh, and C. N. Tomé: Metall. Mater. Trans. Vol. A31 (2000), p.2299.

[9] Y.H. Chung, J.P. Ahn, H.D. Kim, B.B. Hwang, O. Engler and M.Y. Huh: Mater. Sci. Forum Vol. 40896-412 (2002), p.1495.

[10] T. C. Firbank, P. R. Lancaster: Int. J. Mech. Sci. Vol. 7 (1965), p.84.
