Antireflection Layer Coatings on the Si Solar Cell Using SiO2 and Si3N4

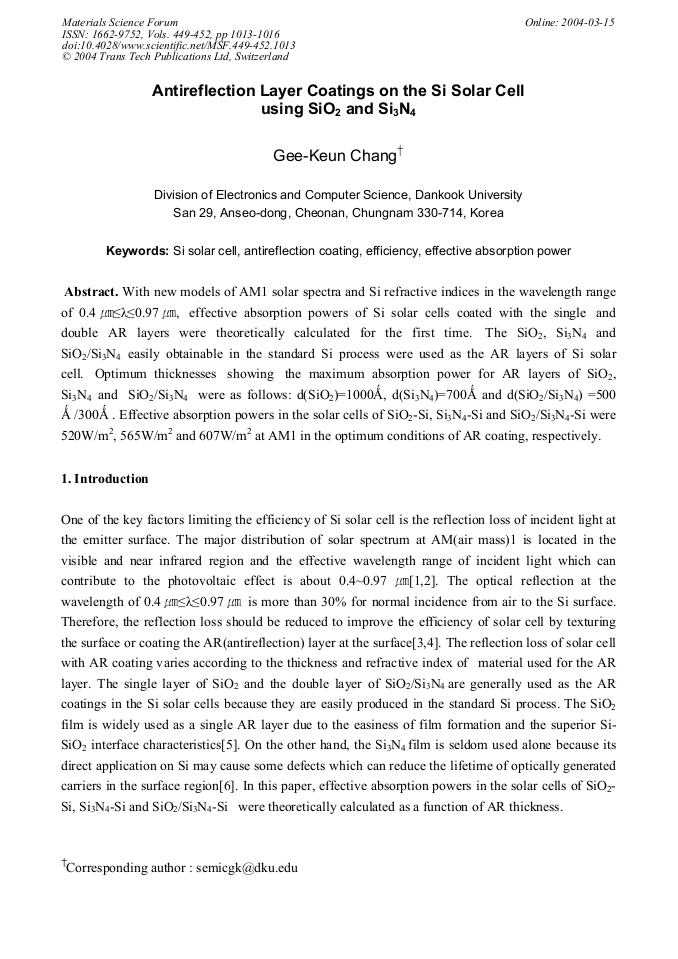

Article Preview

With new models of AM1 solar spectra and Si refractive indices in the wavelength range of 0.4  0.97  , effective absorption powers of Si solar cells coated with the single and double AR layers were theoretically calculated for the first time. The SiO2, Si3N4 and SiO2/Si3N4 easily obtainable in the standard Si process were used as the AR layers of Si solar cell. Optimum thicknesses showing the maximum absorption power for AR layers of SiO2, Si3N4 and SiO2/Si3N4 were as follows: d(SiO2)=10001, d(Si3N4)=7001 and d(SiO2/Si3N4) =500 1 /3001 . Effective absorption powers in the solar cells of SiO2-Si, Si3N4-Si and SiO2/Si3N4-Si were 520W/m2, 565W/m2 and 607W/m2 at AM1 in the optimum conditions of AR coating, respectively



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




G. K. Chang "Antireflection Layer Coatings on the Si Solar Cell Using SiO2 and Si3N4", Materials Science Forum, Vols. 449-452, pp. 1013-1016, 2004

Online since:

March 2004





[1] S.M. Sze: Physics of Semiconductor Devices (John Willey & Sons, Inc., 1981).

[2] E.S. Yang: Microelectronic Devices (McGraw-Hill Book Company, 1988).

[3] R.A. Arndt, J.F. Allison, J.G. Haynos, and A. Meulenberg Jr.: Conf. Rec. 11th IEEE Photovoltaic Spec. Conf., IEEE, New York (1975), p.40.

[4] P.A. Iles: J. Vac. Sci. Technol., Vol. 14 (1977), p.1100.

[5] Richard Williams: J. Vac. Sci. Technol., Vol. 14 (1977), p.1106.

[6] I. Magdo and A. Bogh: J. Electochem. Soc., Vol. 125 (1987), p.932.

[7] H.J. Hovel: Semiconductors and Semimetals, Vol. 11 : Solar Cells (Academic Press, 1975).

[8] L.F. Drummeter, Jr. and G. Hass: Physics of Thin Films Advanced inResearch and Development (Academic Press, 1964).

[9] D.E. Aspnes: Properties of Silicon (INSPEC, The Institution of Electrical Engineers, London and New York 1988). Fig. 4. Effective absorption power in the SiO2 /Si3N4-Si cell for Si3N4 thicknesses of 0. 01um, 0. 03um and 0. 05um as a function of SiO2 thickness. Fig. 5. Effective absorption power in the SiO2 /Si3N4-Si cell for SiO2 thicknesses of 0. 03um, 0. 05um and 0. 07um as a function of Si3N4 thickness.

DOI: 10.1016/0042-207x(89)91134-2
