A Study on the Process Design of Cold-Forged Automobile Parts

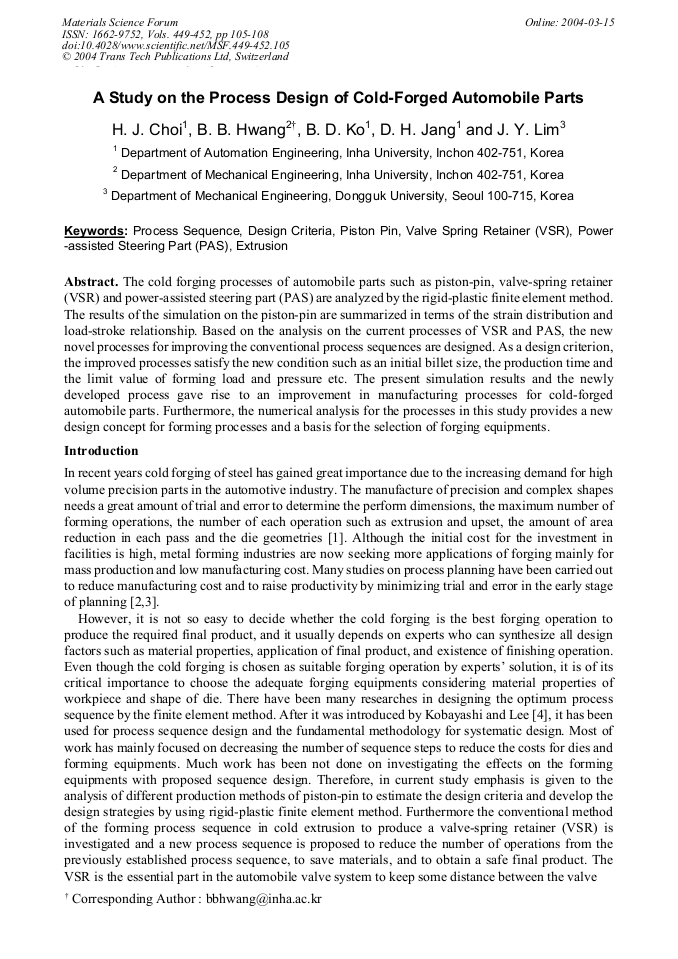

Article Preview

The cold forging processes of automobile parts such as piston-pin, valve-spring retainer(VSR) and power-assisted steering part (PAS) are analyzed by the rigid-plastic finite element method. The results of the simulation on the piston-pin are summarized in terms of the strain distribution and load-stroke relationship. Based on the analysis on the current processes of VSR and PAS, the new novel processes for improving the conventional process sequences are designed. As a design criterion, the improved processes satisfy the new condition such as an initial billet size, the production time and the limit value of forming load and pressure etc. The present simulation results and the newly developed process gave rise to an improvement in manufacturing processes for cold-forged automobile parts. Furthermore, the numerical analysis for the processes in this study provides a new design concept for forming processes and a basis for the selection of forging equipments.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




H. J. Choi et al., "A Study on the Process Design of Cold-Forged Automobile Parts", Materials Science Forum, Vols. 449-452, pp. 105-108, 2004

Online since:

March 2004




[1] S. Roy, S. Ghosh and R. Shivpuri: Int. J. Mach. Tool. Vol. 37 (1997), p.29.

[2] N. Akgerman and T. Altan: No. 72-110 (SME Technical Paper 1972).

[3] G. B. Yu and T. A. Dean: Int. J. Mach. Tool Des. Res. Vol. 25 (1985) p.1.

[4] C. H. Lee and S. Kobyashi: Trans, ASME, J. Of Engrg. for Ind. Vol. 95 (1973), p.865.

[5] J. K. Kim, B. B. Hwang and H. Y. Lee: Proc. of PCM96, Korea Association of Machinary Industry (1996), p.299.

[6] K. Sevenler, P. S. Raghupath and T. Altan: Forming-Sequence Design for Multi-stage Cold Forging (1987) p.121.

[7] H. S. Oh, H. J. Choi and B. B. Hwang: Proc. of PCM96, Korea Association of Machinary Industry (1996), p.590.

[8] D. H. Jang, T. K. Ryou, D. Y. Yoon and B. B. Hwang: J. Mat. Pro. Tech. Vol. 116 (2001).
