Modification of the Recrystallization Texture by Means of Cross Rolling in Ferritic Stainless Steel Sheets

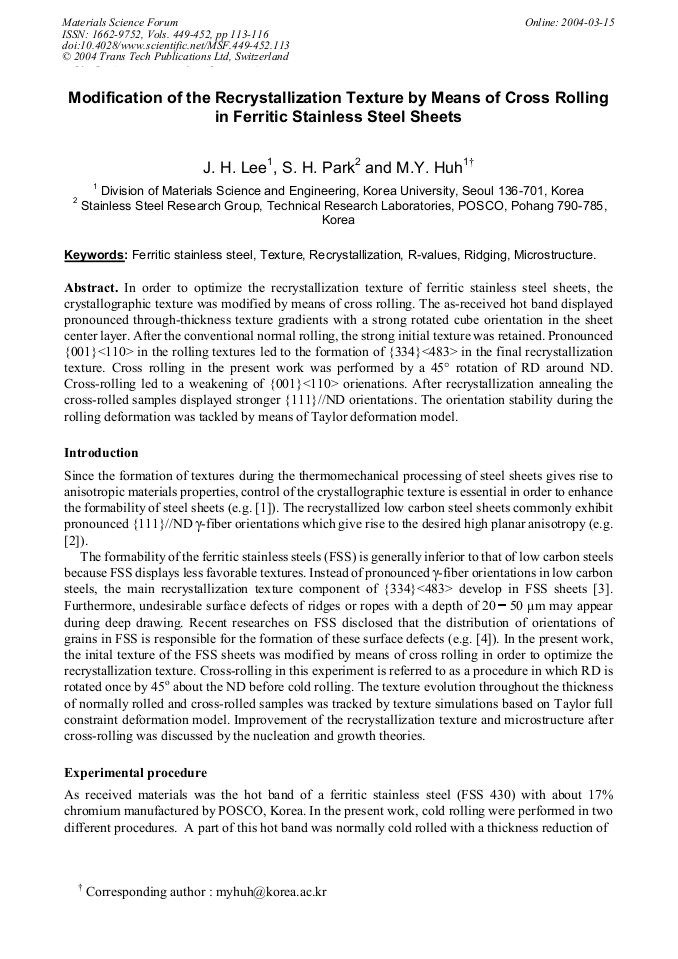

Article Preview

In order to optimize the recrystallization texture of ferritic stainless steel sheets, the crystallographic texture was modified by means of cross rolling. The as-received hot band displayed pronounced through-thickness texture gradients with a strong rotated cube orientation in the sheet center layer. After the conventional normal rolling, the strong initial texture was retained. Pronounced{001}<110> in the rolling textures led to the formation of {334}<483> in the final recrystallization texture. Cross rolling in the present work was performed by a 45° rotation of RD around ND. Cross-rolling led to a weakening of {001}<110> orienations. After recrystallization annealing the cross-rolled samples displayed stronger {111}//ND orientations. The orientation stability during the rolling deformation was tackled by means of Taylor deformation model.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




J. H. Lee et al., "Modification of the Recrystallization Texture by Means of Cross Rolling in Ferritic Stainless Steel Sheets", Materials Science Forum, Vols. 449-452, pp. 113-116, 2004

Online since:

March 2004




[1] W.B. Hutchinson: Int. Met. Rev. Vol. 29 (1984), p.25.

[2] R.K. Ray, J.J. Jonas and R.E. Hook: Int. Met. Rev. Vol. 39 (1994), p.129.

[3] M.Y. Huh and O. Engler: Mater. Sci. Eng. Vol. A308 (2001), p.74.

[4] S.H. Park, K.Y. Kim, Y.D. Lee and C.G. Park: ISIJ Inter. Vol. 42 (2002), p.100.

[5] V. Randle and O. Engler: Introduction to Texture Analysis, Macrotexture, Microtexture and Orientation Mapping (Gordon and Breach, Amsterdam 2000).

DOI: 10.1201/9781420063660

[6] H.J. Bunge: Texture Analysis in Materials Science (Butterworths London 1982). Journal Title and Volume Number (to be inserted by the publisher).

[7] O. Engler, M.Y. Huh and C.N. Tomé: Met. and Mater. Trans. Vol. 31A (2000), p.2299.

[8] J. Hirsch and K. Lücke: Acta Metall. Vol. 36 (1988), p.2883.
