Creep Analysis of Cr-Mo Steels Using a Dislocation Based Constitutive Modelling

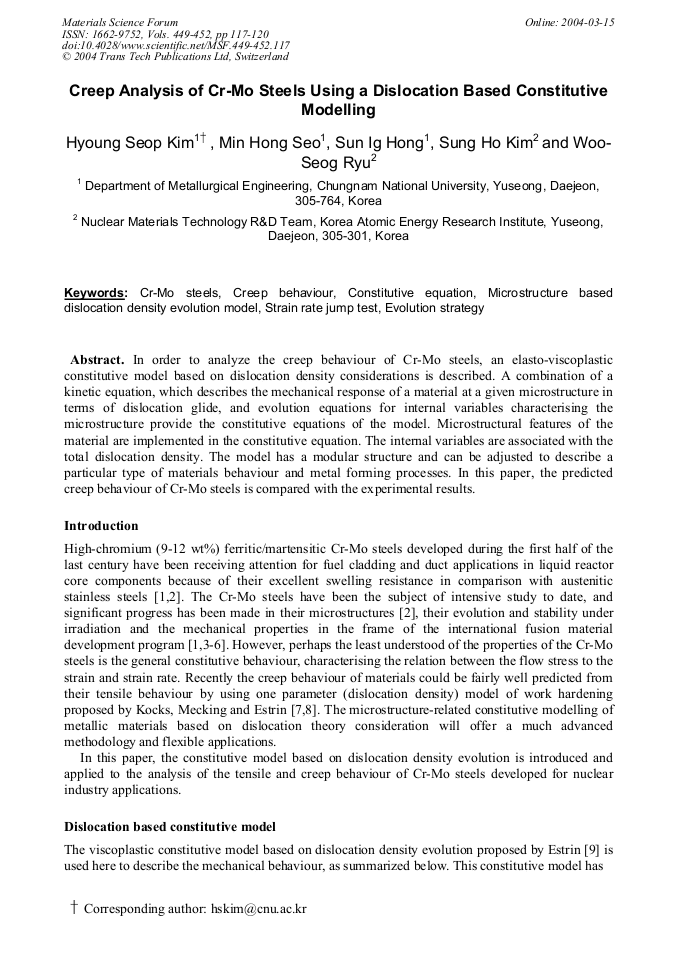

Article Preview

In order to analyze the creep behaviour of Cr-Mo steels, an elasto-viscoplastic constitutive model based on dislocation density considerations is described. A combination of a kinetic equation, which describes the mechanical response of a material at a given microstructure in terms of dislocation glide, and evolution equations for internal variables characterising the microstructure provide the constitutive equations of the model. Microstructural features of the material are implemented in the constitutive equation. The internal variables are associated with the total dislocation density. The model has a modular structure and can be adjusted to describe a particular type of materials behaviour and metal forming processes. In this paper, the predicted creep behaviour of Cr-Mo steels is compared with the experimental results.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




H. S. Kim et al., "Creep Analysis of Cr-Mo Steels Using a Dislocation Based Constitutive Modelling", Materials Science Forum, Vols. 449-452, pp. 117-120, 2004

Online since:

March 2004




[1] R.L. Klueh and D.R. Harries: High-Chromium Ferritic and Martensitic Steels for Nuclear Applications, ASTM, West Conshihocken (2001) p.1.


[2] S.H. Kim, W.S. Ryu and I.H. Kuk: J. Kor. Nucl. Soc. 31 (1999) 561.

[3] P. Spätig, N. Baluc and M. Victoria: Mat. Sci. Eng. A309-310 (2001) 425.

[4] M. Victoria, D. Gavillet, P. Spätig, F. Rezai-Aria and S. Rossmann: J. Nucl. Mater. 233-237 (1996) 326.


[5] S. Hygihara and N. Miyazaki: Metal. Mater. Inter. 4 (1998) 295.

[6] S. Murakami, Y. Liu, T. Hirano and M. Mizuno: Metal. Mater. Inter. 4 (1998) 503.

[7] M.E. Abd El-Azim: J. Nucl. Mater. 231 (1996) 146.

[8] Y. Estrin and H. Mecking: Acta Metall. 32 (1984) 57.

[9] Y. Estrin: in Unified Constitutive Laws of Plastic Deformation, eds. A.S. Krausz and K. Krausz, Academic Press, Ch. 2, Academic Press, (1996).


[10] H.S. Kim, Y. Estrin, E. Gutmanas and C.K. Rhee: Mater. Sci. Eng. A307 (2001) 67.

[11] H.S. Kim, M.B. Bush and Y. Estrin: Mater. Sci. Eng. A276 (2000) 175.

[12] S.H. Kim, W.S. Ryu and U.H. Kuk: J. Kor. Nucl. Soc. 31 (1999) 561.

[13] H. Braasch and Y. Estrin: ASME, MD 43 (1993) 47.

[14] Y.H. Zhu: Metal. Mater. Inter. 4 (1998) 878.

[15] C.Y. Jo, D.H. Kim, S.M. Seo, I.S. Kim, S. Choe and D. Knowlesi: Metal. Mater. Inter. 6 (2000) 117.

[16] H.Y. Kim, J. Matsuda and K. Maruyama: Met. Mater. Inter. 9 (2003) 255.

[17] H.S. Cho, S.W. Nam and Y-W. Kim, Met. Mater. Inter. 4 (1998) 33.

[18] Y.S. Lee, D.W. Kim, D.Y. Lee and W.S. Ryu, Met. Mater. Inter. 7 (2001) 107.

[19] Y.I. Kwon and B.S. Kim, Met. Mater. Inter. 4 (2001) 311.

[20] S-C. Ur, S. Suh and P. Nash, Met. Mater. Inter. 8 (2002) 333.
