Property of TiNi Shape Memory Foils Produced by Ultrafine Laminates Method

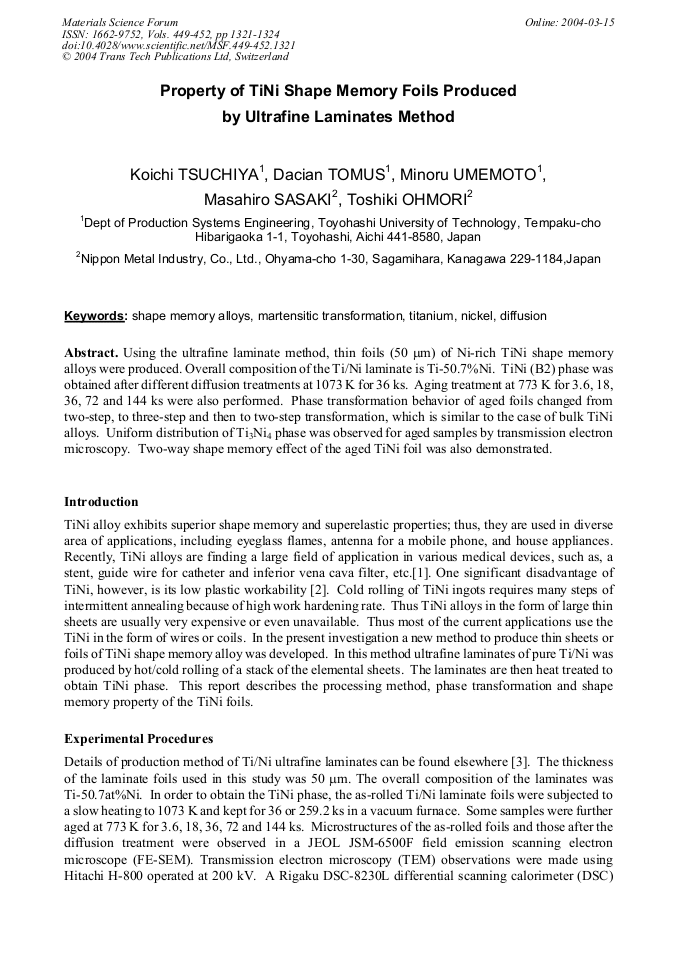

Article Preview

Using the ultrafine laminate method, thin foils (50 µm) of Ni-rich TiNi shape memory alloys were produced. Overall composition of the Ti/Ni laminate is Ti-50.7%Ni. TiNi (B2) phase was obtained after different diffusion treatments at 1073 K for 36 ks. Aging treatment at 773 K for 3.6, 18, 36, 72 and 144 ks were also performed. Phase transformation behavior of aged foils changed from two-step, to three-step and then to two-step transformation, which is similar to the case of bulk TiNi alloys. Uniform distribution of Ti3Ni4 phase was observed for aged samples by transmission electron microscopy. Two-way shape memory effect of the aged TiNi foil was also demonstrated.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




K. Tsuchiya et al., "Property of TiNi Shape Memory Foils Produced by Ultrafine Laminates Method", Materials Science Forum, Vols. 449-452, pp. 1321-1324, 2004

Online since:

March 2004




[1] T. Duerig, A. Pelon and D. Stöckel: Mater. Sci. Eng. Vol. A273-275 (1999) 149.

[2] Y. Suzuki, Fabrication of Shape Memory Alloys, p.133, Cambridge University Press, Cambridge, U. K., (1998).

[3] D. Tomus, K. Tsuchiya, M. Inuzuka, M. Sasaki, D. Imai, T. Ohmori and M. Umemoto: Scripta Mater. Vol. 48 (2003) 489.


[4] D. Tomus, K. Tsuchiya, Nagano T, A. Hosokawa, T. Ohmori, M. Sasaki, Y. Todaka and M. Umemoto: Mater. Trans. Vol. 47 (2003) to be publiished.

[5] D. Favier, Y. Liu and P. G. McCormick: Scrip. Metall. Mater. Vol. 28 (1993) 669.

[6] L. Bataillard and R. Gotthardt: J. Phys. Vol. 5 (1995) 647.

[7] J. Khalil-Allafi, X. Ren and G. Eggeler: Acta Mater. Vol. 50 (2002) 793.

[8] J. Khalil-Allafi, A. Dolouhy and G. Eggeler: Acta Mater. Vol. 50 (2002) 4255. Fig. 4 Two-way shape memory of aged TiNi foil.
