Effect of Bubbling on the Primary Silicon in Hypereutectic Al-Si Alloy


Article Preview

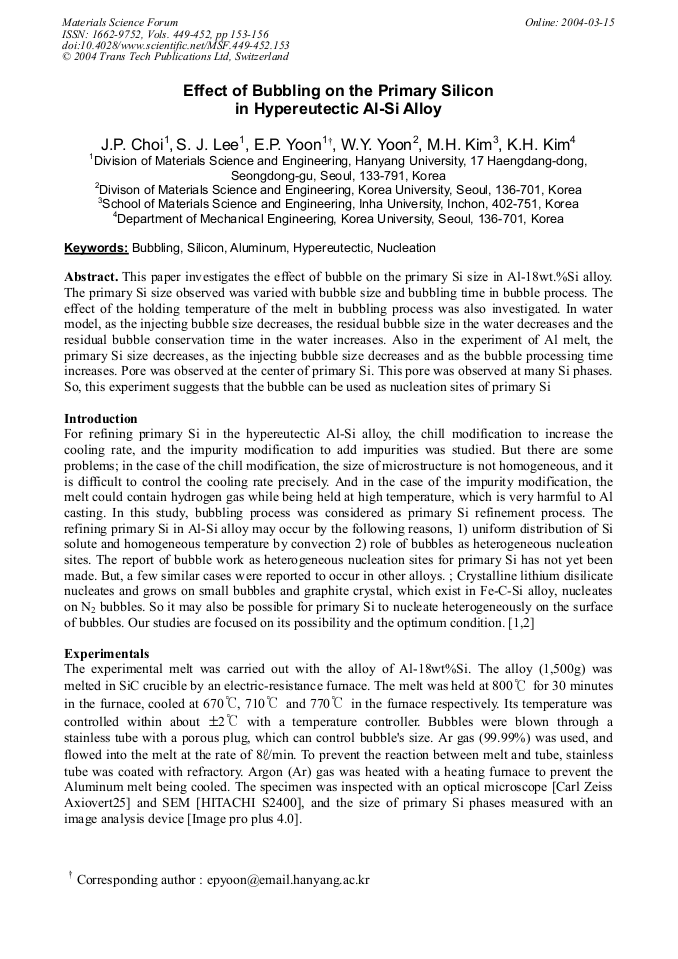

This paper investigates the effect of bubble on the primary Si size in Al-18wt.%Si alloy. The primary Si size observed was varied with bubble size and bubbling time in bubble process. The effect of the holding temperature of the melt in bubbling process was also investigated. In water model, as the injecting bubble size decreases, the residual bubble size in the water decreases and the residual bubble conservation time in the water increases. Also in the experiment of Al melt, the primary Si size decreases, as the injecting bubble size decreases and as the bubble processing time increases. Pore was observed at the center of primary Si. This pore was observed at many Si phases. So, this experiment suggests that the bubble can be used as nucleation sites of primary Si.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




J. P. Choi et al., "Effect of Bubbling on the Primary Silicon in Hypereutectic Al-Si Alloy", Materials Science Forum, Vols. 449-452, pp. 153-156, 2004

Online since:

March 2004




[1] Mark. J. D, Phillip. D.J. : American Mineralogist Vol. 83 (1998), p.1008.

[2] DUCTILE IRON : The AGNE publisher, p.76.

[3] Merton C. Fleming : Solidification Processing McGraw-Hill. Inc., p.207.

[4] W. Kurz, D.J. Fisher : Fundamental of Solidification Trans. Tech. Publications., p.22.
