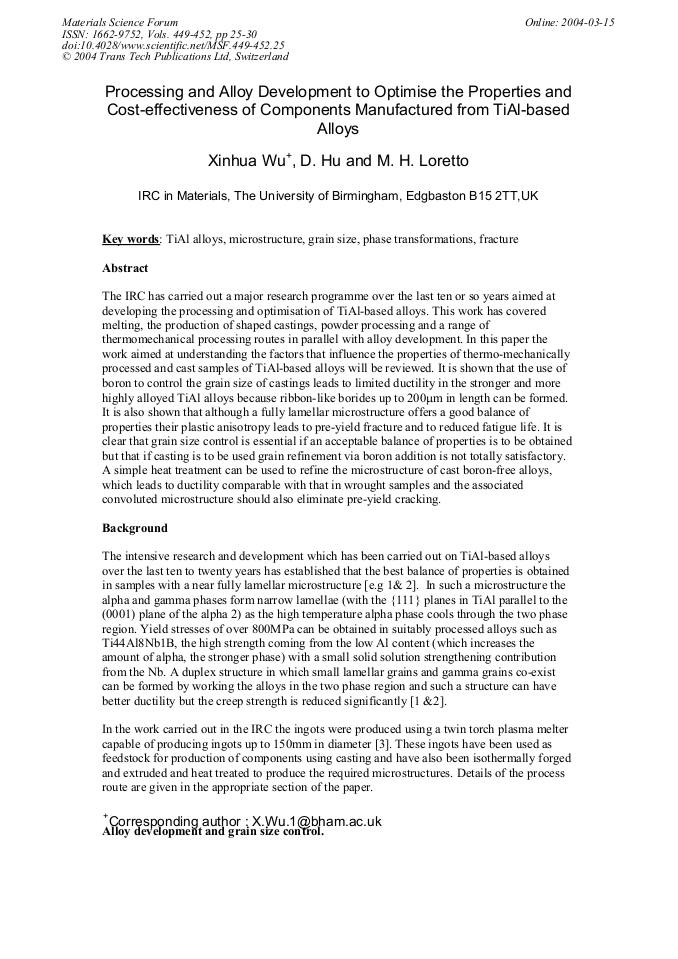

Processing and Alloy Development to Optimise the Properties and Cost-Effectiveness of Components Manufactured from TiAl-Based Alloys


Article Preview

The IRC has carried out a major research programme over the last ten or so years aimed at developing the processing and optimisation of TiAl-based alloys. This work has covered melting, the production of shaped castings, powder processing and a range of thermomechanical processing routes in parallel with alloy development. In this paper the work aimed at understanding the factors that influence the properties of thermo-mechanically processed and cast samples of TiAl-based alloys will be reviewed. It is shown that the use of boron to control the grain size of castings leads to limited ductility in the stronger and more highly alloyed TiAl alloys because ribbon-like borides up to 200µm in length can be formed. It is also shown that although a fully lamellar microstructure offers a good balance of properties their plastic anisotropy leads to pre-yield fracture and to reduced fatigue life. It is clear that grain size control is essential if an acceptable balance of properties is to be obtained but that if casting is to be used grain refinement via boron addition is not totally satisfactory. A simple heat treatment can be used to refine the microstructure of cast boron-free alloys, which leads to ductility comparable with that in wrought samples and the associated convoluted microstructure should also eliminate pre-yield cracking.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




X. H. Wu et al., "Processing and Alloy Development to Optimise the Properties and Cost-Effectiveness of Components Manufactured from TiAl-Based Alloys", Materials Science Forum, Vols. 449-452, pp. 25-30, 2004

Online since:

March 2004




[1] Y Kim and DM Dimiduk 1991 JOM 43 (8) 40.

[2] D M Dimiduk 1999 Mat Science and Engineering A263 281.

[3] B Godfrey, A L Dowson and M H Loretto 1995 Gamma titanium aluminides (TMS Warrendale) Eds Y W Kim, R Wagner and M Yamaguchi] 467.

[4] B J Inkson, C B Boothroyd and C J Humphreys 1993 J de Physique 1V 397.

[5] D Hu 2003 Intermetallics 10, 851.

[6] T T Cheng 1999 Intermetallics 8 29.

[7] A B Godfrey PhD thesis 1996 The University of Birmingham.

[8] A Denquin, S Naka and T Khan Proc Ti 92 Science and Technology (Froes and Caplan) Warrendale Pennsylvania TMS. p.1017.

[9] X D Zhang, S Godfrey, M Weaver, M Strangwood, P Threadgill, M J Kaufman, and M H Loretto Acta materia 1996 44, 3723.

DOI: 10.1016/1359-6454(95)00453-x

[10] D Hu and R R Botten, Intermetallics 2002, v10 (7), 701.

[11] A B Godfrey, D Hu and M H Loretto Phil Mag A 1998 77(20) 287.

[12] J M K Wiezorek, X D Zhang, A B Godfrey, D Hu, M H Loretto and H L Fraser. Scripta mater 1998 38(5) 811.

[13] R Botten, Xinhua Wu, D Hu and M H Loretto Acta materia 2001, 49, 1687.

[14] Xinhua Wu, D Hu, R Botten and M H Loretto, Acta materia 2001, 49, 1693.

[15] Xinhua Wu, D Hu, M Preuss, P Withers and M H Loretto (to be published).

[16] H Inui, A Nakamura, M H Oh and M Yamaguchi Acta materia, 1992, 40, 3095.

[17] A B Godfrey, D Hu and M H Loretto 1997 Proc Intnl Symposium on designing, processing and properties of advanced engineering materials. Toyahashi Japan 37.

[18] M Morris Intermetallics 1997 5(5) 327.

[19] F Appel (private communication).
