Preparation of W-C-B Composites by Reactive Resistance-Heated Hot Pressing

Abstract:

Article Preview

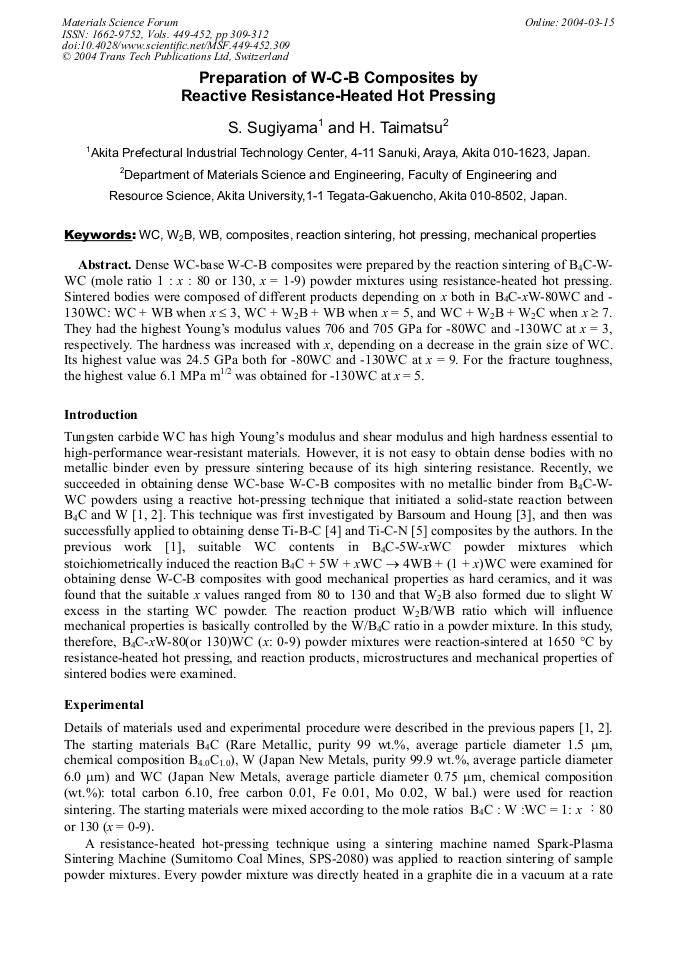

Dense WC-base W-C-B composites were prepared by the reaction sintering of B4C-WWC (mole ratio 1 : x : 80 or 130, x = 1-9) powder mixtures using resistance-heated hot pressing. Sintered bodies were composed of different products depending on x both in B4C-xW-80WC and - 130WC: WC + WB when x ≤ 3, WC + W2B + WB when x = 5, and WC + W2B + W2C when x ≥7. They had the highest Young's modulus values 706 and 705 GPa for -80WC and -130WC at x = 3, respectively. The hardness was increased with x, depending on a decrease in the grain size of WC. Its highest value was 24.5 GPa both for -80WC and -130WC at x = 9. For the fracture toughness, the highest value 6.1 MPa m1/2 was obtained for -130WC at x = 5.

Info:

Periodical:

Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi

Pages:

309-312

Citation:

S. Sugiyama and H. Taimatsu, "Preparation of W-C-B Composites by Reactive Resistance-Heated Hot Pressing", Materials Science Forum, Vols. 449-452, pp. 309-312, 2004

Online since:

March 2004

Export:

Price:

$38.00

[1] S. Sugiyama and H. Taimatsu: Mater. Trans. JIM Vol. 43 (2002), p.1197.

[2] S. Sugiyama and H. Taimatsu: Euro. Ceram. Soc. Vol. 24 (2004), p.871.

[3] M. W. Barsoum and B. Houng: J. Amer. Ceram. Soc. Vol. 76 (1993)� p.1445.

[4] S. Sugiyama, K. Asari and H. Taimatsu: J. Ceram. Soc. Jpn. Vol. 108 (2000)� p.747.

[5] S. Sugiyama, K. Asari and H. Taimatsu: J. Jpn. Soc. Powder and Powder Metall. Vol. 47 (2000)� p.308.

[6] C. B. Ponton and R. D. Rawlings: Mater. Sci. Technol., Vol. 5 (1989), p.865.

[7] E. Rudy: Compendium of Phase Diagram Data (Technical Report AFML-TR-65-2 Part V, 1969, p.655).

[8] Powder Diffraction files (JCPDS International Center for Diffraction Data, Pennsylvania, 1994, No. 251047, No. 350738).

[9] H. E. Exner: Int. Metals Review Vol. 24 (1979), p.149.

[10] P. Schwartzkopf and R. Kieffer: Cemented Carbides (Macmillan, New York 1960, p.136).

[11] N. J. Petch: J. Iron Steel Inst. Vol. 174 (1953), p.25.

[12] S. C. Carnigglia: J. Am. Ceram. Soc. Vol. 55 (1972), p.243.

[13] R. W. Rice: Ceramics in Severe Environments (W. W. Kreigel and H. Palmour III eds., Plenum, New York 1971, p.195).

[14] A. G. Evans and E. A. Charles: J. Am. Ceram. Soc. Vol. 59 (1976), p.371.

[15] J. Lankford: J. Mater. Sci. Lett. Vol. 1 (1982), p.493.

[16] K. Niihara, R. Morena and D. P. H. Hasselman: J. Mater. Sci. Lett. Vol. 1 (1982), p.13. 4 5 6 7 Fracture toughness, Kc / (MPa m1/2) 0 2 4 6 8 10 x Fig. 6 Fracture toughness of the sintered bodies for B4C-xW-80WC and -130WC. 130WC 80WC.

Fetching data from Crossref.
This may take some time to load.
