Dry Oxidation Behavior of Epitaxial Si0.7Ge0.3 Films

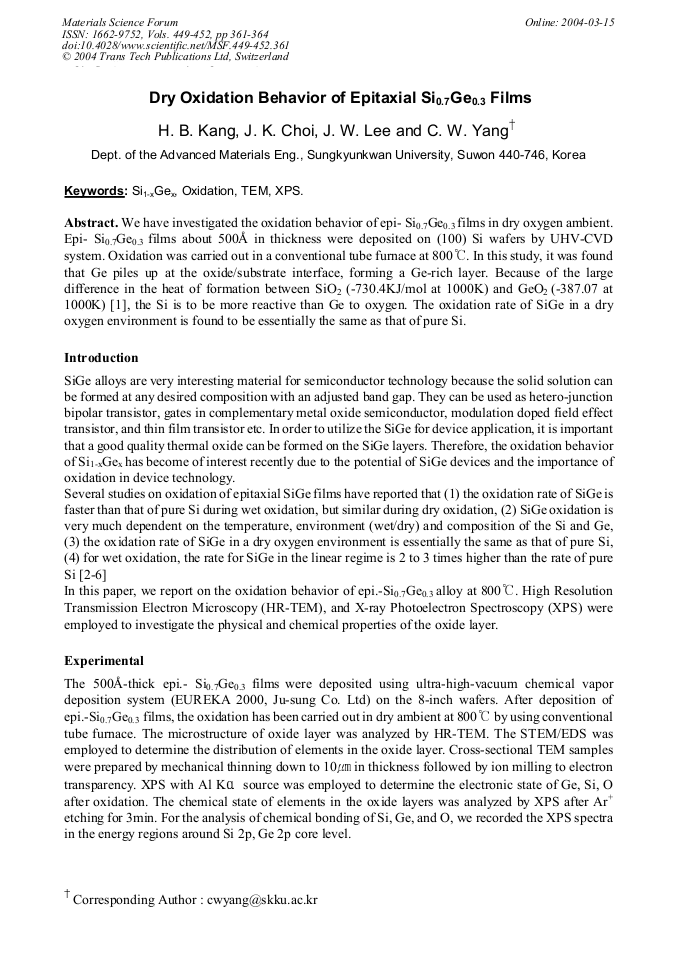

Article Preview

We have investigated the oxidation behavior of epi-Si0.7Ge0.3 films in dry oxygen ambient. Epi- Si0.7Ge0.3 films about 500Å in thickness were deposited on (100) Si wafers by UHV-CVD system. Oxidation was carried out in a conventional tube furnace at 800 °C . In this study, it was found that Ge piles up at the oxide/substrate interface, forming a Ge-rich layer. Because of the large difference in the heat of formation between SiO2(-730.4KJ/mol at 1000K) and GeO2(-387.07 at 1000K) [1], the Si is to be more reactive than Ge to oxygen. The oxidation rate of SiGe in a dry oxygen environment is found to be essentially the same as that of pure Si.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




H.B. Kang et al., "Dry Oxidation Behavior of Epitaxial Si0.7Ge0.3 Films", Materials Science Forum, Vols. 449-452, pp. 361-364, 2004

Online since:

March 2004




[1] Ihan Barin, Thermochemical Data of pure Substances, VCH, New York, (1989).

[2] F. K. LeGoues, R. Rosenberg, T. Nguten, F. Himpsel, and B. S. Meyerson, J. Appl. Phys. Vol. 65, (1989), p.1724.

[3] D. K. Nayak, K. kamijoo, J. S. Park, J. C. S. Woo and K. L. Wang, Appl. Phys. Lett. Vol. 57, (1990), p.369.

[4] D. Fathy, O. W. Holland, and C. W. White, Appl. Phys. Lett., Vol. 51, (1987), p.1337.

[5] F. K. LeGoues, R. Rosenberg, B. S. Meyerson, Appl. Phys. Lett., Vol. 54, (1989), p.13.

[6] J. Eugene, F. K. LeGoues, V. P. Kesan, S. S. Lyer and F. M. d’Heurle, Appl. Phys. Lett., Vol. 59, (1991).

[7] G. L. McVay, A. R. DuCharme, Phys. Rev. B, Vol. 9, (1974), p.627.
