Deposition of Copper Thin Films on Titanium Nitride Layer Prepared by Flow Modulation CVD Technology

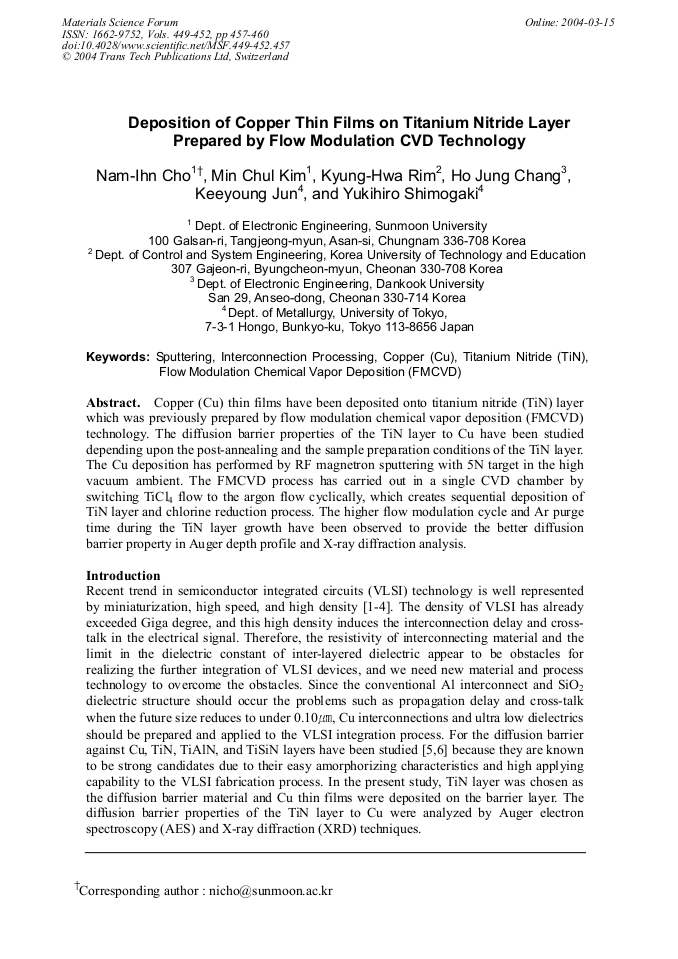

Article Preview

Copper (Cu) thin films have been deposited onto titanium nitride (TiN) layer which was previously prepared by flow modulation chemical vapor deposition (FMCVD technology. The diffusion barrier properties of the TiN layer to Cu have been studied depending upon the post-annealing and the sample preparation conditions of the TiN layer. The Cu deposition has performed by RF magnetron sputtering with 5N target in the high vacuum ambient. The FMCVD process has carried out in a single CVD chamber by switching TiCl4 flow to the argon flow cyclically, which creates sequential deposition of TiN layer and chlorine reduction process. The higher flow modulation cycle and Ar purge time during the TiN layer growth have been observed to provide the better diffusion barrier property in Auger depth profile and X-ray diffraction analysis.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




N. I. Cho et al., "Deposition of Copper Thin Films on Titanium Nitride Layer Prepared by Flow Modulation CVD Technology", Materials Science Forum, Vols. 449-452, pp. 457-460, 2004

Online since:

March 2004




[1] S.W. Lee, F.G. Shi, and S.D. Lopatin, J. Electronic Materials Vol. 32, (2003), p.27.

[2] N.I. Cho, H.G. Nam, Y. Choi, and J.S. Yang, Microelectronic Engineering Vol. 66 (2003), p.415.

[3] G. Schindler, G. Steinlesberger, M. Engelhardt, and W. Steinhogl, Solid-State Electronics Vol. 47 (2003), p.1233.


[4] N. I. Cho and Y. Sul, Material Sec. Eng. Vol. B72 (2000), p.184.

[5] P. Mott, M. Proust, J. Torres, Y. Gobil, Y. Morand, J. Palleau, R. Pantel, and M. Juhel, Microelectronic Engineering Vol. 74 (2000), p.369.


[6] K. Chen, Y. Yu, H. Mu, E.Z. Luo, B. Sundaravel, S.P. Wong, and I.H. Wilson, Surface and Coating Technology Vol. 151 (2002), p.434.

[7] H. Hamamura, H. Komiyama, and Y. Shimogaki, Jpn. J. Appl. Phys. Vol. 40 (2001), p.1517.
