Effect of Annealing on the Microstructures and Mechanical Properties of Mo3Si-Mo5Si3 Eutectic


Article Preview

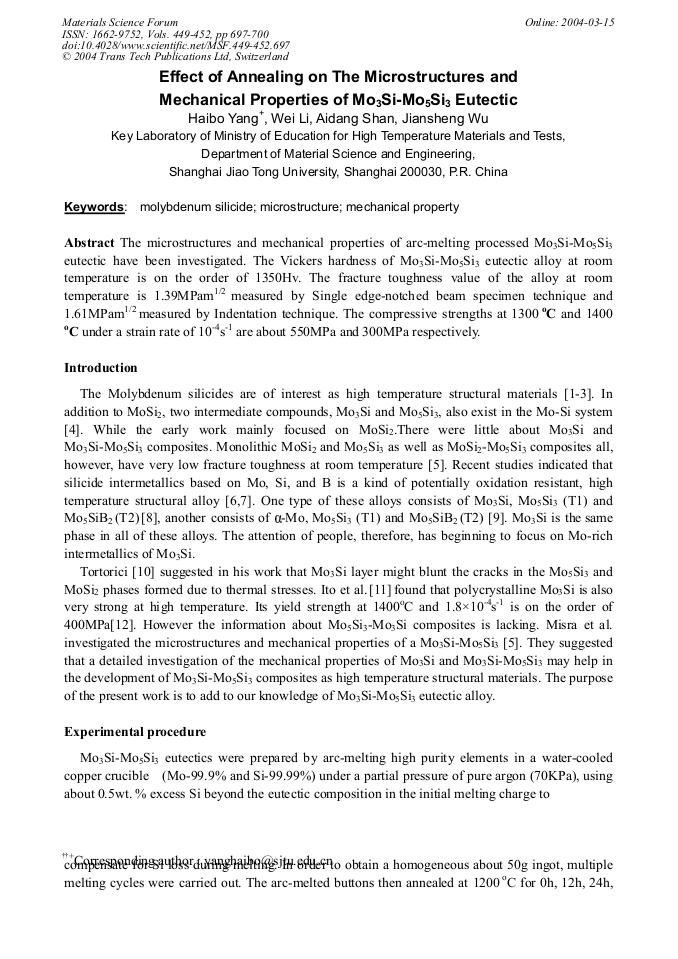

The microstructures and mechanical properties of arc-melting processed Mo3Si-Mo5Si3 eutectic have been investigated. The Vickers hardness of Mo3Si-Mo5Si3 eutectic alloy at room temperature is on the order of 1350Hv. The fracture toughness value of the alloy at room temperature is 1.39MPam1/2 measured by Single edge-notched beam specimen technique and 1.61MPam1/2 measured by Indentation technique. The compressive strengths at 1300 oC and 1400 oC under a strain rate of 10-4s-1 are about 550MPa and 300MPa respectively.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




H. B. Yang et al., "Effect of Annealing on the Microstructures and Mechanical Properties of Mo3Si-Mo5Si3 Eutectic", Materials Science Forum, Vols. 449-452, pp. 697-700, 2004

Online since:

March 2004




[1] R. Gibala, A. K. Ghosh, D. C. Van Aken, D. J. Srolovitz, A. Basu, H. Chang, D. P. Mason, and W. Yang: Mater. Sci. Eng., Vol. A155 (1992), p.147.

[2] J. J. Petrovic and R. E. Honnell: Ceramics Eng. Sci. Proc., Vol. 11 (1990), p.734.

[3] J. Cook, R. Mahapatra, E. Lee, A. Kahn and J. Waldman: Ceramics Eng. Sci. Proc., Vol. 12 (1991), p.1656.

[4] A. B. Gokhale and G. J. Abbaschian: Journal of Phase Equilibria, Vol. 12 (1991), p.493.

[5] A. Misra, J. J. Petrovic and T. E. Mitchell: Scripta Materialia, Vol. 40 (1999), p.191.

[6] K. Ihara, K. Ito, K. Tanaka and M. Yamaguchi: Mater. Sic. Eng., Vol. A329-331 (2002), p.222.

[7] J. H. Schneibel and J. A. Sekhar: Mater. Sci. Eng., Vol. A340 (2003), p.204.

[8] J. H. Schneibel, C. T. Liu, L. Heatherly and M. J. Kramer: Scr. Mater., Vol. 38 (1998), p.1169.

[9] J. H. Schneibel, M. J. Kramer, O. Unal and R. N. Wright: Inermetallics, Vol. 9 (2001), p.25.

[10] P. C. Tortorici and M. A. Dayananda: Mater. Sci. Eng., Vol. A261 (1999), p.64.

[11] K. Ito, K. Ihara, K. Tanaka, M. Fujikura and M. Yamaguchi: Intermetallics, Vol. 9 (2001), p.591.

[12] I. Rosales and J. H. Schneibel: Intermetallics, Vol. 8 (2000), p.885.

[13] G. R. Anstis, P. Chantikul, B. R. Lawn and D. B. Marshall: J. Am. Ceram. Soc., Vol. 64 (1981), p.533.
