Properties of Tin Oxide Films Prepared by MOCVD

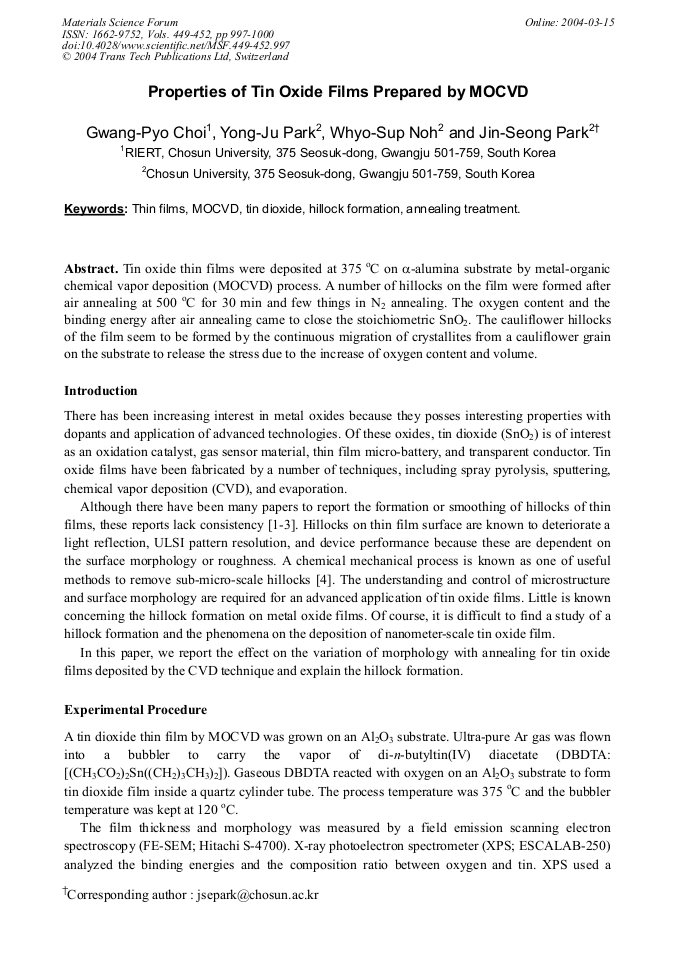

Article Preview

Tin oxide thin films were deposited at 375 °C on α-alumina substrate by metal-organic chemical vapor deposition (MOCVD) process. A number of hillocks on the film were formed after air annealing at 500 °C for 30 min and few things in N2 annealing. The oxygen content and the binding energy after air annealing came to close the stoichiometric SnO2. The cauliflower hillocks of the film seem to be formed by the continuous migration of crystallites from a cauliflower grain on the substrate to release the stress due to the increase of oxygen content and volume.



Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi




G. P. Choi et al., "Properties of Tin Oxide Films Prepared by MOCVD", Materials Science Forum, Vols. 449-452, pp. 997-1000, 2004

Online since:

March 2004




[1] M.L. Lopez, A.G. Cervantes, Z.R. Alvarez and I.H. Calderon: J. Crystal Growth Vol. 193 (1998) p.528.

[2] E. Iwamura, K. Takagi and T. Ohnishi: Thin Solid Films Vol. 349 (1999) p.191.

[3] E. Bourelle, M. Inagaki, Y. Kaburagi, Y. Tanabe, Y. Hishiyama, E. Yasuda and S. Kimura: Synthetic Metals Vol. 125 (2002) p.239.

DOI: 10.1016/s0379-6779(01)00537-9

[4] J.S. Kim, F. Cacialli, M. Granstrom, R.H. Friend, N. Johansson, W.R. Salaneck, R. Daik and W.J. Feast: Synth. Met. Vol. 101 (1999) p.111.

[5] R. Snyders, M. Wautelet, R. Gouttebaron, J.P. Dauchot and M. Hecq: Thin Solid Films Vol. 423 (2003) p.125.

[6] J.Y. Kim: The Effect of Cu-, Sn-, V-, and Ti- underlays on the Stability of Gold Thin Films During Isothermal Annealing (Thesis of doctor’ degree , University of Florida 1988) p.151.

[7] Z.A. Ansari, S.G. Ansari, T. Ko, and J. H . Oh: Sensors and Actuators B Vol. 87 (2002) p.105.

Fetching data from Crossref.
This may take some time to load.
