Microstructure and Texture Evolution during Continuous Dynamic Recrystallization at Warm Deformation of Titanium

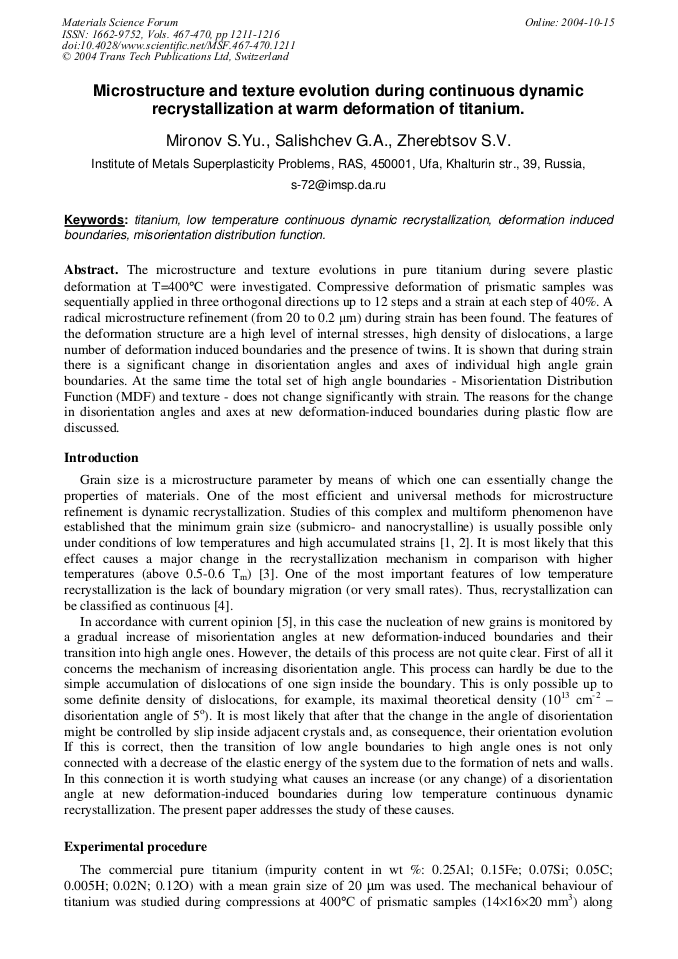

The microstructure and texture evolutions in pure titanium during severe plastic deformation at T=400°C were investigated. Compressive deformation of prismatic samples was sequentially applied in three orthogonal directions up to 12 steps and a strain at each step of 40%. A radical microstructure refinement (from 20 to 0.2 µm) during strain has been found. The features of the deformation structure are a high level of internal stresses, high density of dislocations, a large number of deformation induced boundaries and the presence of twins. It is shown that during strain there is a significant change in disorientation angles and axes of individual high angle grain boundaries. At the same time the total set of high angle boundaries - Misorientation Distribution Function (MDF) and texture - does not change significantly with strain. The reasons for the change in disorientation angles and axes at new deformation-induced boundaries during plastic flow are discussed.
B. Bacroix, J.H. Driver, R. Le Gall, Cl. Maurice, R. Penelle, H. Réglé and L. Tabourot
S.Y. Mironov et al., "Microstructure and Texture Evolution during Continuous Dynamic Recrystallization at Warm Deformation of Titanium", Materials Science Forum, Vols. 467-470, pp. 1211-1216, 2004
