Micro-Scale OIM Study on the Recrystallization Process of Cold Rolled α-Fiber Single Crystal

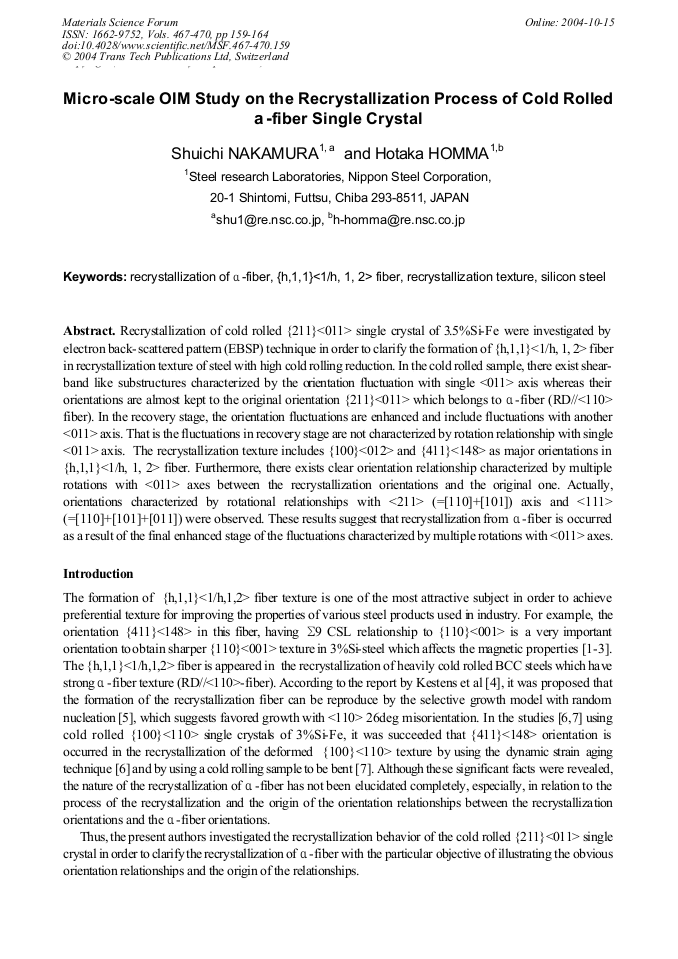

Article Preview

Recrystallization of cold rolled {211}<011> single crystal of 3.5%Si-Fe were investigated by electron back-scattered pattern (EBSP) technique in order to clarify the formation of {h,1,1}<1/h, 1, 2> fiber in recrystallization texture of steel with high cold rolling reduction. In the cold rolled sample, there exist shearband like substructures characterized by the orientation fluctuation with single <011> axis whereas their orientations are almost kept to the original orientation {211}<011> which belongs to a-fiber (RD//<110> fiber). In the recovery stage, the orientation fluctuations are enhanced and include fluctuations with another <011> axis. That is the fluctuations in recovery stage are not characterized by rotation relationship with single <011> axis. The recrystallization texture includes {100}<012> and {411}<148> as major orientations in {h,1,1}<1/h, 1, 2> fiber. Furthermore, there exists clear orientation relationship characterized by multiple rotations with <011> axes between the recrystallization orientations and the original one. Actually, orientations characterized by rotational relationships with <211> (=[110]+[101]) axis and <111> (=[110]+[101]+[011]) were observed. These results suggest that recrystallization from a-fiber is occurred as a result of the final enhanced stage of the fluctuations characterized by multiple rotations with <011> axes.



Materials Science Forum (Volumes 467-470)

Edited by:

B. Bacroix, J.H. Driver, R. Le Gall, Cl. Maurice, R. Penelle, H. Réglé and L. Tabourot




S. Nakamura and H. Homma, "Micro-Scale OIM Study on the Recrystallization Process of Cold Rolled α-Fiber Single Crystal", Materials Science Forum, Vols. 467-470, pp. 159-164, 2004

Online since:

October 2004




[1] J. Harase and R. Shimizu: Acta Metall. Vol. 38 (1990), p.1395.

[2] Y. Ushigami, S. Nakamura, S. Takebayashi and S. Suzuki: Mater. Sci. Forum, vol. 408-412 (2002), p.973; S. Nakamura, Y. Ushigami, S. Takebayashi and S. Suzuki: ibid., p.1293.

DOI: https://doi.org/10.4028/www.scientific.net/msf.408-412.1293

[3] H. Homma and B. Hutchinson: Acta Mater. Vol. 51 (2003), p.3795.

[4] L. Kestens, N. Yoshinaga, D. Vanderschueren and B.C. De Cooman: proceedings of the 4th International Conference on Recrystallization and Related Phenomena, edited by T. Sakai and H.G. Suzuki (1999), p.745.

[5] L. Kestens and J.J. Jonas: Metall. and Mater. Trans. A, vol. 27A (1996), p.155.

[6] T. Toge, M. Muraki, M. Komatsubara and T. Obara: ISIJ Int., vol. 38 (1998), p.524.

[7] H. Homma, N. Yoshinaga, M. Sugiyama and T. Kubota: Materia Japan vol. 40 (2001), p.650.

[8] W.G. Burgers and P.C. Louwerse: Z. Phys. vol. 67 (1931), p.605.
