Simulation of Spherulite Growth during Polymer Crystallization by Use of a Cellular Automaton

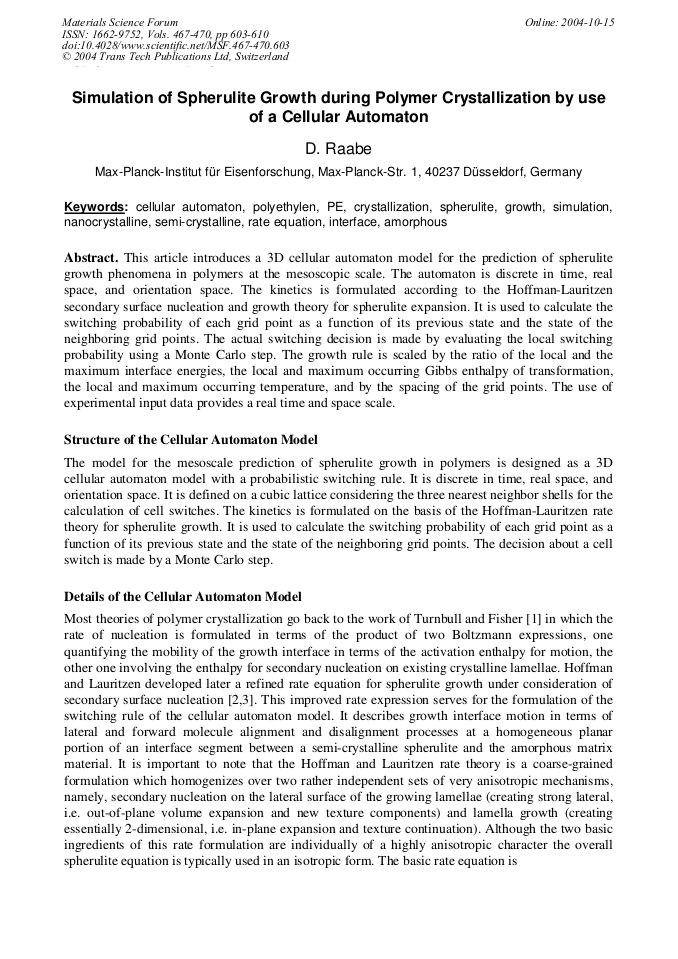

Article Preview

This article introduces a 3D cellular automaton model for the prediction of spherulite growth phenomena in polymers at the mesoscopic scale. The automaton is discrete in time, real space, and orientation space. The kinetics is formulated according to the Hoffman-Lauritzen secondary surface nucleation and growth theory for spherulite expansion. It is used to calculate the switching probability of each grid point as a function of its previous state and the state of the neighboring grid points. The actual switching decision is made by evaluating the local switching probability using a Monte Carlo step. The growth rule is scaled by the ratio of the local and the maximum interface energies, the local and maximum occurring Gibbs enthalpy of transformation, the local and maximum occurring temperature, and by the spacing of the grid points. The use of experimental input data provides a real time and space scale.



Materials Science Forum (Volumes 467-470)

Edited by:

B. Bacroix, J.H. Driver, R. Le Gall, Cl. Maurice, R. Penelle, H. Réglé and L. Tabourot




D. Raabe, "Simulation of Spherulite Growth during Polymer Crystallization by Use of a Cellular Automaton", Materials Science Forum, Vols. 467-470, pp. 603-610, 2004

Online since:

October 2004





[1] Turnbull D, Fisher JC. J Chem Phys 1949, 17: 71.

[2] Lauritzen JI, Hoffman JD. J. Res. Natl. Bur. Stand. 64 (1960) 73.

[3] Hoffman JD, Davis GT, Lauritzen JI, in Treatise of Solid State Chemistry, N. B. Hanney editor, Plenum Press. New York. 1976. vol. 3, chapter 7, page 497.

[4] Hoffman JD, Miller RL, Polymer 1997, 38: 3151.

[5] Snyder CR, Marand H, Mansfield ML Macromolecules 1996, 29: 7508.

[6] Snyder CR, Marand H, Macromolecules 1997, 30: 2759.

[7] Raabe, D., Philosophical Magazine A 79 (1999) 2339.

[8] Raabe, D., Annual Review of Materials Research 32 (2002) 53.

[9] Raabe, D., Acta Materialia, in press.
