Study on Technology of Flexible Forming of Sheet Metal Based on Laser Shock Waves

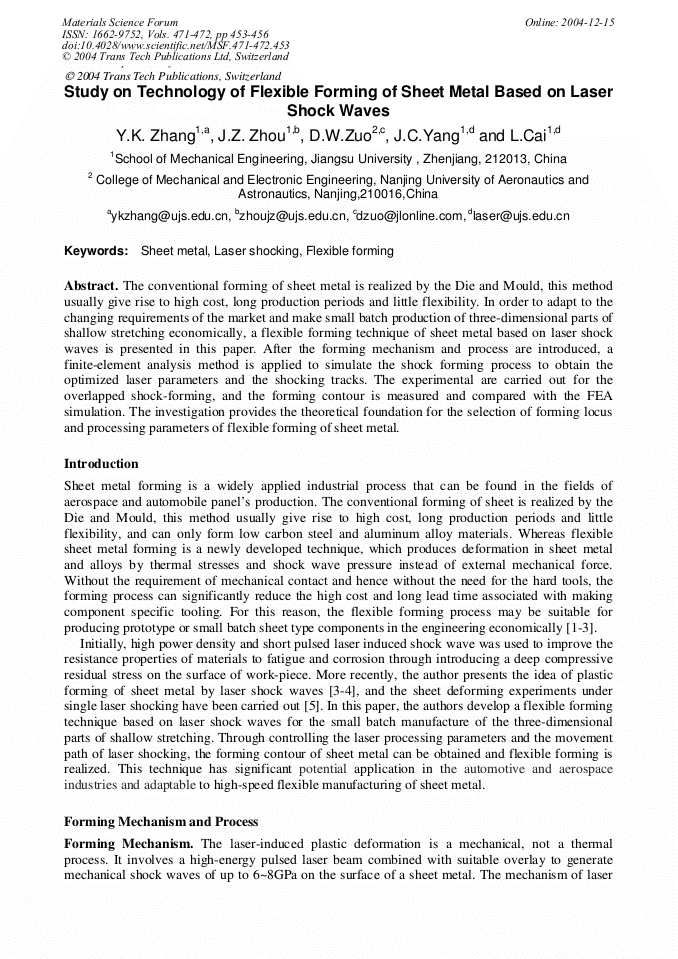

Article Preview

The conventional forming of sheet metal is realized by the Die and Mould, this method usually give rise to high cost, long production periods and little flexibility. In order to adapt to the changing requirements of the market and make small batch production of three-dimensional parts of shallow stretching economically, a flexible forming technique of sheet metal based on laser shock waves is presented in this paper. After the forming mechanism and process are introduced, a finite-element analysis method is applied to simulate the shock forming process to obtain the optimized laser parameters and the shocking tracks. The experimental are carried out for the overlapped shock-forming, and the forming contour is measured and compared with the FEA simulation. The investigation provides the theoretical foundation for the selection of forming locus and processing parameters of flexible forming of sheet metal.



Materials Science Forum (Volumes 471-472)

Edited by:

Xing Ai, Jianfeng Li and Chuanzhen Huang




Y. K. Zhang et al., "Study on Technology of Flexible Forming of Sheet Metal Based on Laser Shock Waves", Materials Science Forum, Vols. 471-472, pp. 453-456, 2004

Online since:

December 2004




[1] C. Hindman and K.B. Ousterthout: J. of Mater. Proc. Techn. Vol. 99 (2000), p.38.

[2] M.S. Shim and J. Park: J. of Mater. Proc. Techn. Vol. 113 (2001), p.654.

[3] J.Z. Zhou, Y.K. Zhang and J.C. Yang: China Mech. Eng. Vol. 13 (22) (2002), p. (1923).

[4] Y.K. Zhang, J.Z. Zhou and M. Zhou: Method and Apparatus for Laser Shock Precisely Forming of Sheet Metal, Patent: ZL01134063(CN).

[5] J.Z. Zhou, J.C. Yang, Y.K. Zhang et al: J. of Mater. Proc. Techn. Vol. 129 (2002), p.243.

[6] A. Fazal and M. Arif: J. of Mater. Proc. Techn. Vol. 136 ( 2003), p.120.
