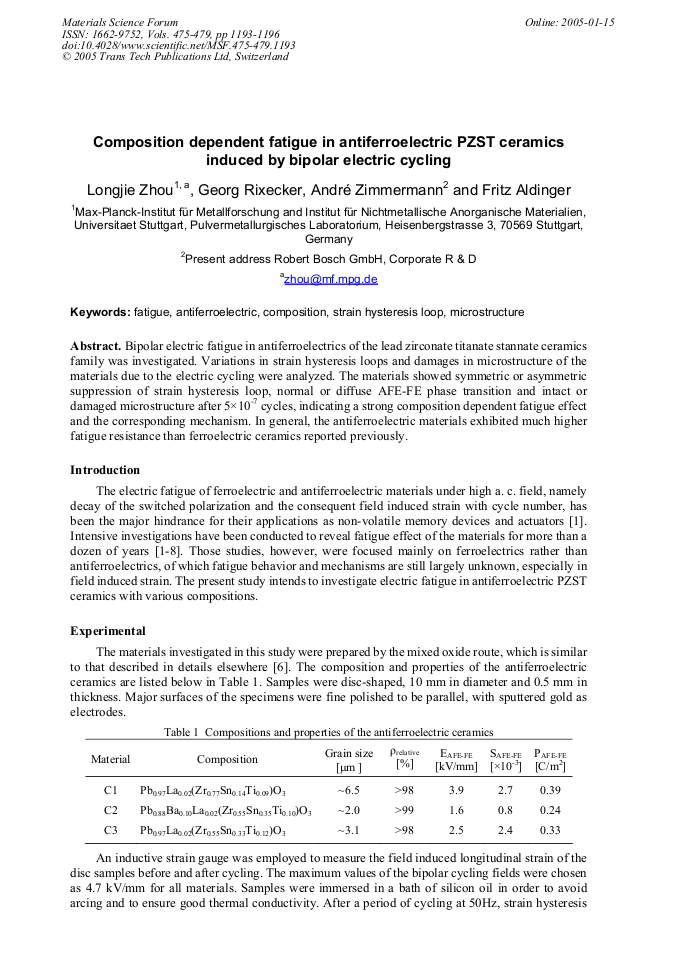

Composition Dependent Fatigue in Antiferroelectric PZST Ceramics Induced by Bipolar Electric Cycling


Article Preview

Bipolar electric fatigue in antiferroelectrics of the lead zirconate titanate stannate ceramics family was investigated. Variations in strain hysteresis loops and damages in microstructure of the materials due to the electric cycling were analyzed. The materials showed symmetric or asymmetric suppression of strain hysteresis loop, normal or diffuse AFE-FE phase transition and intact or damaged microstructure after 5×10-7 cycles, indicating a strong composition dependent fatigue effect and the corresponding mechanism. In general, the antiferroelectric materials exhibited much higher fatigue resistance than ferroelectric ceramics reported previously.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




L. J. Zhou et al., "Composition Dependent Fatigue in Antiferroelectric PZST Ceramics Induced by Bipolar Electric Cycling", Materials Science Forum, Vols. 475-479, pp. 1193-1196, 2005

Online since:

January 2005




[1] Q.Y. Jiang and L.E. Cross: J. Mater. Sci. Vol. 28 (1993), p.4536.

[2] Q. Jiang, E. C. Subbarao and L. E. Cross: J. Appl. Phys., Vol. 75 (1994), p.7433.

[3] W. Fan and S. Leppavuori: J. Appl. Phys. Vol. 82 (1997), p.1293.

[4] D. Wang, Y. Fotinich and G.P. Carman: J. Appl. Phys. Vol. 83 (1998), p.5342.

[5] W. Pan, C. Yue and O. Tosyali: J. Am. Ceram. Soc. Vol. 75 (1992), p.1534.

[6] L. Zhou, A. Zimmermann, Y. Zeng and F. Aldinger, J. Mat. Sci., Vol. 39 (2004), p.2675.

[7] J. Nuffer, D. C. Lupascu, J. Rödel, Acta Materialia, Vol. 48 (2000), p.3783.

[8] E. L. Colla et. al. Appl. Phys. Lett. Vol. 72 (1998), p.2763.
