Creep Resistance of Zr-Sn-Nb-Fe-Cr Alloy

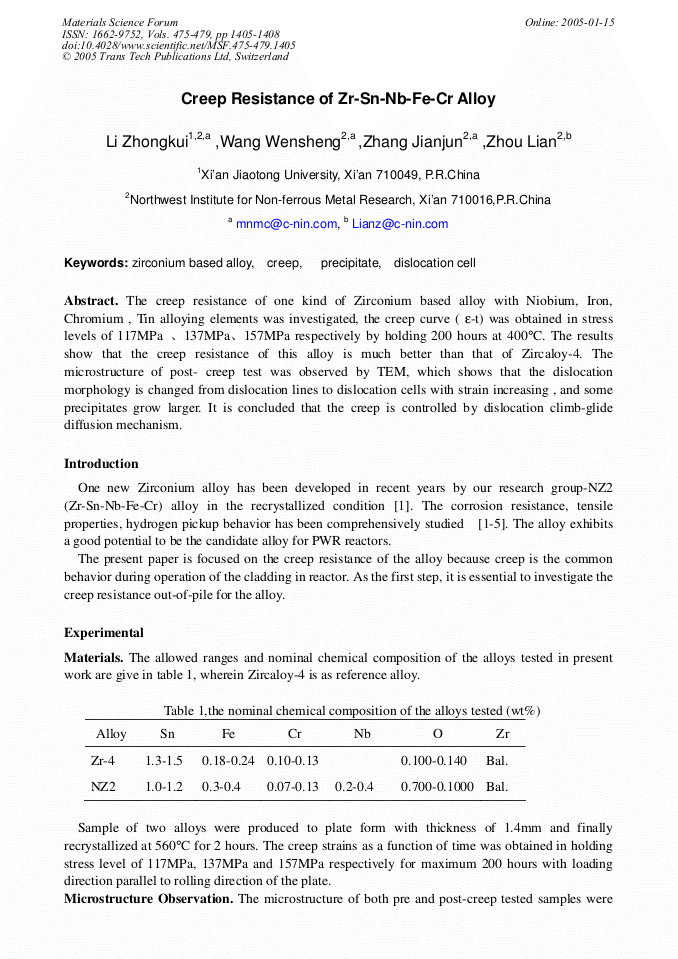

Article Preview

The creep resistance of one kind of Zirconium based alloy with Niobium, Iron, Chromium , Tin alloying elements was investigated, the creep curve ( e-t) was obtained in stress levels of 117MPa 、137MPa、157MPa respectively by holding 200 hours at 400°C. The results show that the creep resistance of this alloy is much better than that of Zircaloy-4. The microstructure of post- creep test was observed by TEM, which shows that the dislocation morphology is changed from dislocation lines to dislocation cells with strain increasing , and some precipitates grow larger. It is concluded that the creep is controlled by dislocation climb-glide diffusion mechanism.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




Z. Li et al., "Creep Resistance of Zr-Sn-Nb-Fe-Cr Alloy", Materials Science Forum, Vols. 475-479, pp. 1405-1408, 2005

Online since:

January 2005




[1] Li Zhongkui, Liu Jianzhang , Zhou Lian, et. al.: proceedings of the Fifth China-Japan Symposium on Materials for Advance Energy System and Fission & Fusion Engineering (1998), p.52.

[2] Li Zhongkui, Liu Jianzhang, Li Peizhi , et al.: Acta, Metallurgical Sinica, Vol. 12, No. 5 (1999), p.974.

[3] Li ZhongKui, Liu Jianzhang, Li Cong, et al.: Proceedings of International Conference on Engineering and technological Science 2000, Session 3, Advanced Materials, Vol, 1, (2000), p.395.

[4] Li Zhongkui, Zhou Lian , Liu Jianzhang, et al.: Rare Metal Materials and Engineering, Vol. 30, Suppl. (2001), p.52.

[5] Li Zhongkui, Zhou Lian, Liu Jianzhang, et al.: Rare Metal Materials and Engineering, Vol. 30, Suppl (2001), p.68.

[6] Matsuo. Y., J. Nucl. Sci. Tech. Vol. 24, No. 2 (1981), p.111.

[7] Franklin, D.G. Lucas, G.E. Bement , A.L.: Creep of Zirconium Alloys in Nuclear Rectors, ASTM STP 815 (ASTM Publications, America 1983).

[8] Limback, M., Andersson, T.: Zirconium in the Nuclear Industry, Eleventh International Symposium, ASTM STP 1295 (1996), p.448.

[9] Stele, H., Steinberg, E., Tenckhoff, E.: Zirconium in the Nuclear Industry, ASTM STP 633 (1977), p.486.

[10] Herb, B., Ruhumann, H. Konig. A.: Zirconium in the Nuclear Industry , Twelfth International Symposium, ASTM STP 1354 (2000), p.482.
