Fabrication and Properties of Lead-Free Sn-Ag-Cu-Ga Solder Alloy

Abstract:

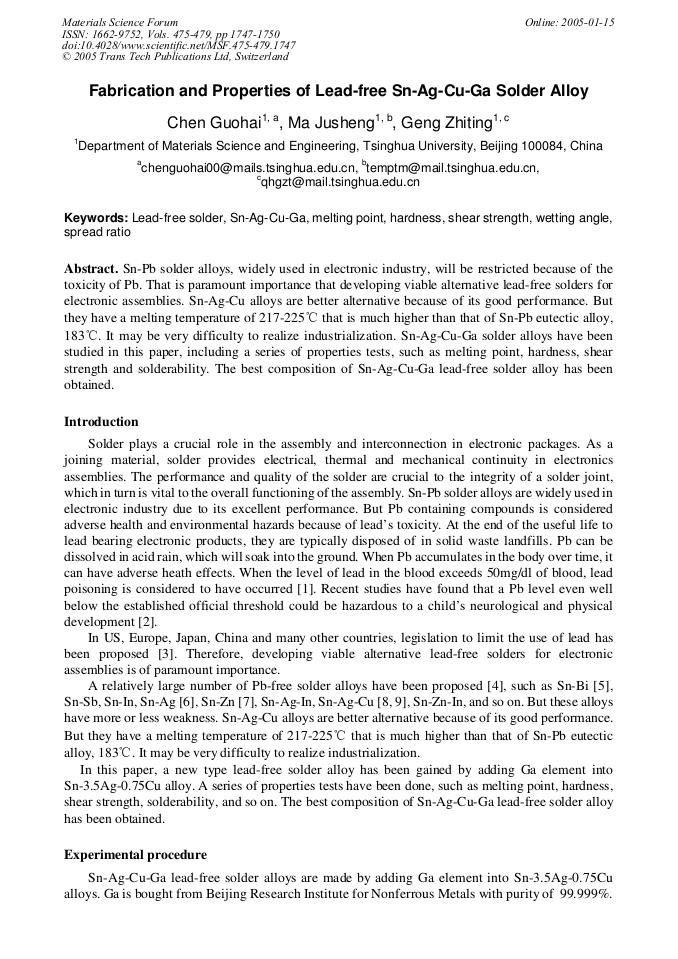

Article Preview

Sn-Pb solder alloys, widely used in electronic industry, will be restricted because of the toxicity of Pb. That is paramount importance that developing viable alternative lead-free solders for electronic assemblies. Sn-Ag-Cu alloys are better alternative because of its good performance. But they have a melting temperature of 217-225°C that is much higher than that of Sn-Pb eutectic alloy, 183°C. It may be very difficulty to realize industrialization. Sn-Ag-Cu-Ga solder alloys have been studied in this paper, including a series of properties tests, such as melting point, hardness, shear strength and solderability. The best composition of Sn-Ag-Cu-Ga lead-free solder alloy has been obtained.

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie

Pages:

1747-1750

Citation:

G. Chen et al., "Fabrication and Properties of Lead-Free Sn-Ag-Cu-Ga Solder Alloy", Materials Science Forum, Vols. 475-479, pp. 1747-1750, 2005

Online since:

January 2005

Export:

Price:

$38.00

[1] D. Napp: Proceedings of the 27th International SAMPE Technical Conference (Albuquerque, NM, 9-12 Oct. 1995), p.342.

[2] Mulugeta Abtewa, Guna Selvaduray: Materials Sci. and Engineering, Vol. 27 (2000), pp.95-141.

[3] Niels Warburg: SMT China, No. 5/6 (2003), p.28.

[4] K. Zeng, K.N. Tu: Materials Sci. and Engineering R, Vol. 38 (2002), pp.55-105.

[5] S. Kikuchi, M. Nishimura, K. Suetsugu, T. Ikari, K. Matsushige: Materials Sci. and Engineering A319-321, (2001), pp.475-479.

[6] Cao Yu, Yi Dan-qing, et. al: Sichuan Nonferrous Metals, Vol. 3 (2001), pp.5-12.

[7] Johan Liu: Lead Free Solders and Soldering for Interconnect in Electronics Manufacturing (The Fifth International IEEE Symposiumon High Density Packaging and Component Failure Analysisin Manufacturing, Invited Talk, 2002).

[8] F.A. Stam, E. Davitt: Microelectronics Reliability, Vol. 41 (2001), pp.1815-1822.

[9] W. Peng: Lead-free electronic assembly based on Sn-Ag-Cu solders (Helsinki University of Technology, Helsinki, Finland, 2001).
