Numerical Analysis of Deformation and Damage in Copper Alloy Sheet

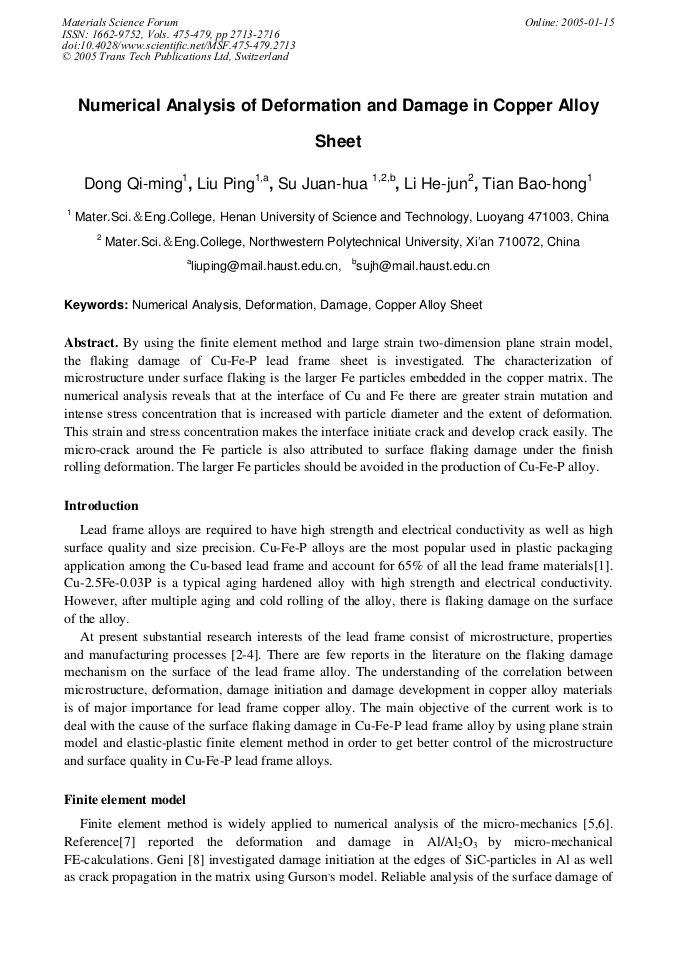

Article Preview

By using the finite element method and large strain two-dimension plane strain model, the flaking damage of Cu-Fe-P lead frame sheet is investigated. The characterization of microstructure under surface flaking is the larger Fe particles embedded in the copper matrix. The numerical analysis reveals that at the interface of Cu and Fe there are greater strain mutation and intense stress concentration that is increased with particle diameter and the extent of deformation. This strain and stress concentration makes the interface initiate crack and develop crack easily. The micro-crack around the Fe particle is also attributed to surface flaking damage under the finish rolling deformation. The larger Fe particles should be avoided in the production of Cu-Fe-P alloy.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




Q. M. Dong et al., "Numerical Analysis of Deformation and Damage in Copper Alloy Sheet", Materials Science Forum, Vols. 475-479, pp. 2713-2716, 2005

Online since:

January 2005




[1] Y.W. Cao: A Study on Copper Alloys with High Strength and High Electrical Conductivity for Lead Frame (Beijing: Tsinghua University, China 1999).

[2] P. Liu, B.X. Kang and X.G. Cao: Materials Science and Engineering Vol. A265 (1999), p.262.

[3] J.H. Su, et al.: Journal of Materials Science and Technology Vol. 19 (2003), p.529.

[4] F.X. Huang, J.S. Ma: Scripta materialia Vol. 48 (2003), p.97.

[5] K. Gall, et al.: Mechanics of Materials Vol. 32 (2000), p.277.

[6] S. Schmauder, D. Uhlmann and G. Zies: Computational Materials Science Vol. 25 (2002), p.174.

[7] E. Soppa, et al.: Computational Materials Science Vol. 28 (2003), p.574.

[8] M. Geni,M. Kikuchi: Acta Metall. Mater. Vol. 46 (1998), p.3125.

[9] W. Yang:. Macro/micro-mechanics of Rupture ( National Defence Industry Press, China 2001).
