Research on Ultra-High Strength Al-11Zn-2.9Mg-1.7Cu Alloy Prepared by Spray Forming Process

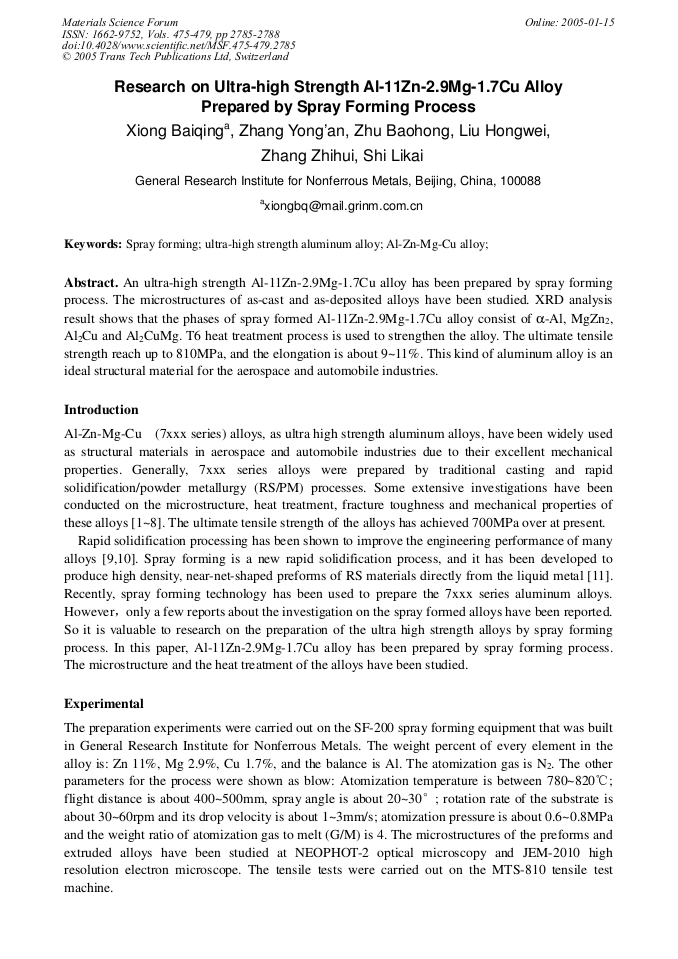

Article Preview

An ultra-high strength Al-11Zn-2.9Mg-1.7Cu alloy has been prepared by spray forming process. The microstructures of as-cast and as-deposited alloys have been studied. XRD analysis result shows that the phases of spray formed Al-11Zn-2.9Mg-1.7Cu alloy consist of a-Al, MgZn2, Al2Cu and Al2CuMg. T6 heat treatment process is used to strengthen the alloy. The ultimate tensile strength reach up to 810MPa, and the elongation is about 9~11%. This kind of aluminum alloy is an ideal structural material for the aerospace and automobile industries.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




B. Q. Xiong et al., "Research on Ultra-High Strength Al-11Zn-2.9Mg-1.7Cu Alloy Prepared by Spray Forming Process", Materials Science Forum, Vols. 475-479, pp. 2785-2788, 2005

Online since:

January 2005




[1] J.K. Park, A.J. Ardell:Metallurgical Transactions, Vol. A15 (1984), p.1531.

[2] S.R. Ortner, C.R.M. Grnvenor and B.A. Shollock:Scripta metal., Vol. 22 (1988), p.839.

[3] J.F. Nie, B.C. Muddle and I.J. Polmear: Materials Science Forum, Vol. 217-222 (1996), p.1255.

[4] J. Lankford: Fatigue and Fracture of Engineering Materials and Structures, Vol. 5 (1982), p.233.

[5] E. Donnelly, D. Nelson: International Journal of Fatigue, Vol. 24 (2002), p.1175.

[6] K. Hono, N. Sano and T. Sakurai: Surf. Sci., Vol. 266 (1993), p.350.

[7] Stiller K.K., Warren, P.J., Hansen, V., Angenete,J. and Gjonnes: J., Mater. Sci. Eng. A, Vol. 270 (1999), p.55.

[8] L.K. Berg, J. Gjonnes,V. Hansen, V. Hanse, et al. : Acta mater., Vol. 49 (2001), p.3443.

[9] S.K. Das and L.A. Davis:Materials science and engineering, Vol. 98 (1988), p.1.

[10] A. Lawley:the international journal of powder metallurgy & powder technology, Vol. 13, No. 3 (1977), p.169.

[11] A.R.E. Singer: J. Met. Mater., Vol. 4 (1970), p.246.
