The Investigation on Aluminium Alloys Automobile Wheel with Low-Titanium Content Produced by Electrolysis

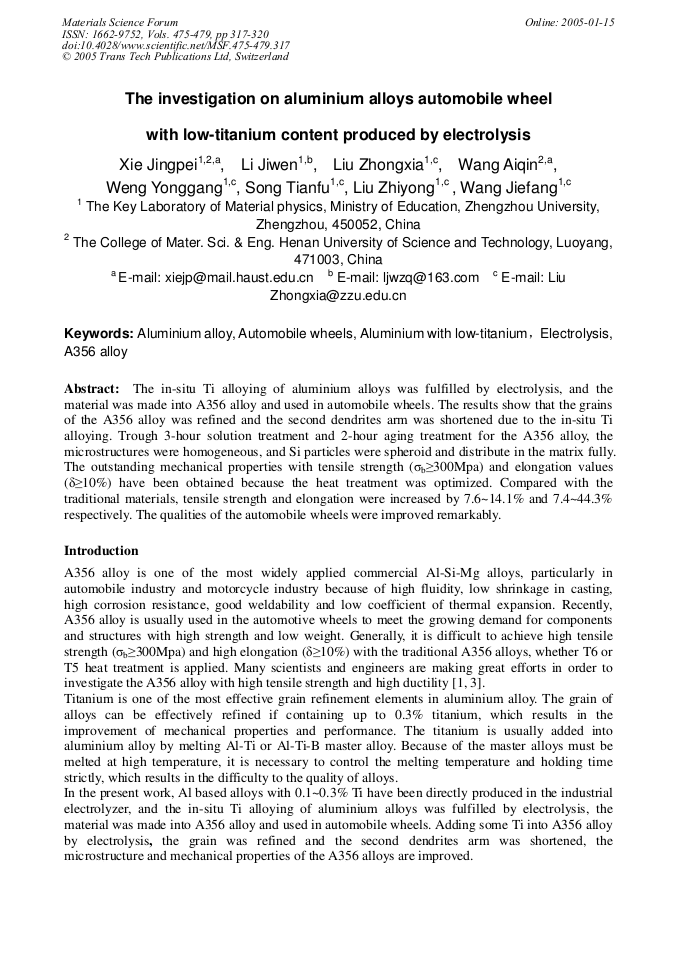

Article Preview

The in-situ Ti alloying of aluminium alloys was fulfilled by electrolysis, and the material was made into A356 alloy and used in automobile wheels. The results show that the grains of the A356 alloy was refined and the second dendrites arm was shortened due to the in-situ Ti alloying. Trough 3-hour solution treatment and 2-hour aging treatment for the A356 alloy, the microstructures were homogeneous, and Si particles were spheroid and distribute in the matrix fully. The outstanding mechanical properties with tensile strength (σb≥300Mpa) and elongation values (δ≥10%) have been obtained because the heat treatment was optimized. Compared with the traditional materials, tensile strength and elongation were increased by 7.6~14.1% and 7.4~44.3% respectively. The qualities of the automobile wheels were improved remarkably.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




J. P. Xie et al., "The Investigation on Aluminium Alloys Automobile Wheel with Low-Titanium Content Produced by Electrolysis", Materials Science Forum, Vols. 475-479, pp. 317-320, 2005

Online since:

January 2005




[1] Zhang D.L.: Effect of a short solution treatment time on microstructure and mechanical properties of modified Al-7wt. %Si-0. 3wt. %Mg alloy. Journal of Light Metals, Volume: 2, February (2002), p.38.


[2] E. Ogris, A. Wahlen, H. Lüchinger: On the silicon spheroidization in Al-Si alloys. Journal of Light Metals, Volume 2, November (2002), p.12.


[3] Huang Jirong: The effects of aging and pressure pouring on the properties of ZL101A-T6. Aircraft manufacture technology, Volume 6 ( 2003),p.28.

[4] Ruyao Wang, Weihua Lu and L. M. Hogan: Self-modification in direct electrolytic Al-Si alloys (DEASA) and its structural inheritance, Materials Science and Engineering A, Volume 348, May (2003), p.18.
