Improvement of Adhesion of Cubic Boron Nitride Films: Effect of Interlayer and Deposition Parameters

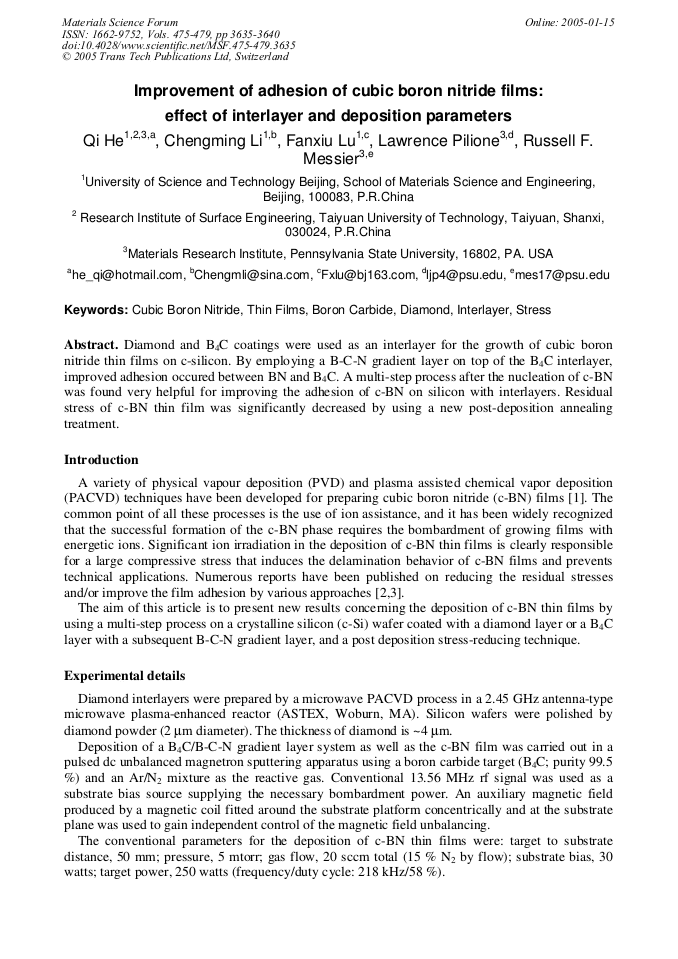

Article Preview

Diamond and B4C coatings were used as an interlayer for the growth of cubic boron nitride thin films on c-silicon. By employing a B-C-N gradient layer on top of the B4C interlayer, improved adhesion occured between BN and B4C. A multi-step process after the nucleation of c-BN was found very helpful for improving the adhesion of c-BN on silicon with interlayers. Residual stress of c-BN thin film was significantly decreased by using a new post-deposition annealing treatment.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




Q. He et al., "Improvement of Adhesion of Cubic Boron Nitride Films: Effect of Interlayer and Deposition Parameters", Materials Science Forum, Vols. 475-479, pp. 3635-3640, 2005

Online since:

January 2005




[1] P.B. Mirkarimi, K.F. McCarty and D.L. Medlin: Mater. Sci. Eng. Vol. 12 (1997), p.47.

[2] J. Ullmann1, A.J. Kellock and J.E.E. Baglin: Thin Solid Films Vol. 341 (1999), p.238.

[3] C. Fitz, A. Kolitsch, and W. Möller: Appl. Phys. Lett. Vol. 80 (2002), p.55.

[4] K.K. Chattopadhyay, A.N. Banerjee and S. Kundoo: Mater. Lett. Vol. 57 (2003), p.1459.

[5] C. A. Davis: Thin Solid Films Vol. 226 (1993), p.30.

[6] H. Windischmann: J. Vac. Sci. Technol. Vol. A9 (1991), p.2431.

[7] P. Sigmund: Sputtering by Particle Bombardment (Springer, Berlin 1981).

[8] M. Murakawa, S. Watanabe and S. miyake: Diamond Films Technol. Vol. 1 (1991), p.55.

[9] N. Tanabe, M. Iwaki: Nucl. Instrum. Methods Vol. B80/81 (1993), p.1349.

[10] S. Ulrich, J. Schwan, W. Donner and H. Ehrhardt: Diamond Relat. Mater. Vol. 5 (1996), p.548.

[11] A. Klett, R. Freudenstein and M.F. Plass: Surf. Coat. Technol. Vol. 125 (2000), p.190.

[12] D. Litvinov, R. Clarke: Appl. Phys. Lett. Vol. 71 (1997), p. (1969).

[13] S. Khizrove, D. Litvinov: Appl. Phys. Lett. Vol. 79 (2001), p.353.

[14] A. Klett, R. Freudenstein and M. F. Plass: Surf. Coat. Technol. Vol. 116-119 (1999), p.86.

[15] D. J. Kester, R. Messier: J. Appl. Phys. Vol. 72 (1992), p.504.

[16] H. Walter, K. Bewilogua and A. Schütze: Diamond Relat. Mater. Vol. 8 (1999), p.110.
