Localized Deformation of Equal Channel Angular Extruded Aluminum

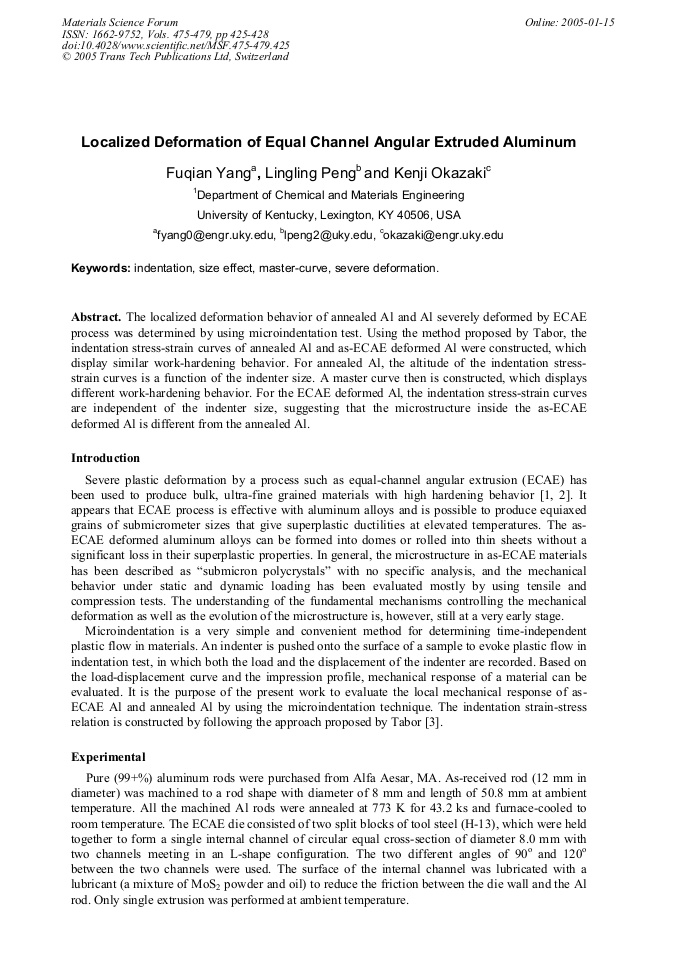

Article Preview

The localized deformation behavior of annealed Al and Al severely deformed by ECAE process was determined by using microindentation test. Using the method proposed by Tabor, the indentation stress-strain curves of annealed Al and as-ECAE deformed Al were constructed, which display similar work-hardening behavior. For annealed Al, the altitude of the indentation stressstrain curves is a function of the indenter size. A master curve then is constructed, which displays different work-hardening behavior. For the ECAE deformed Al, the indentation stress-strain curves are independent of the indenter size, suggesting that the microstructure inside the as-ECAE deformed Al is different from the annealed Al.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




F. Yang et al., "Localized Deformation of Equal Channel Angular Extruded Aluminum", Materials Science Forum, Vols. 475-479, pp. 425-428, 2005

Online since:

January 2005




[1] Y. Iwahashi, Z. Horita, M. Nemoto and T.G. Langdon: Acta Mater. 46 (1998), p.3317.

[2] M.A. Muňoz-Morris, C. Garcia and D.G. Morris: Scripta Mater. 48 (2003), p.213.

[3] D. Tabor: Hardness of Metals (Clarendon Press, Oxford 1951).

[4] G.E. Dieter: Mechanical Metallurgy, 2 nd Edition (McGraw-Hill, Inc. 1976).

[5] Y. Bergström: Mater. Sci. Eng. 9 (1972), p.101.

[6] H. Yoshinaga, S. Matsuno and H. Kurishita: Trans. JIM. 26 (1985) p.423.

[7] M.A. Meyers and K.K. Chawla, Mechanical behavior of materials, (Prentice-Hall, Inc. 1999) Figure 4 . Dependence of the initial dislocation density on the indenter radius 0 2 4 6 8 10024681012 dislocation density (10 11 cm-2) r -1/2 (mm -1/2 ) Annealed Al.
