Effect of Rolling Conditions on Microstructure and Mechanical Properties of AZ31 Mg Alloy

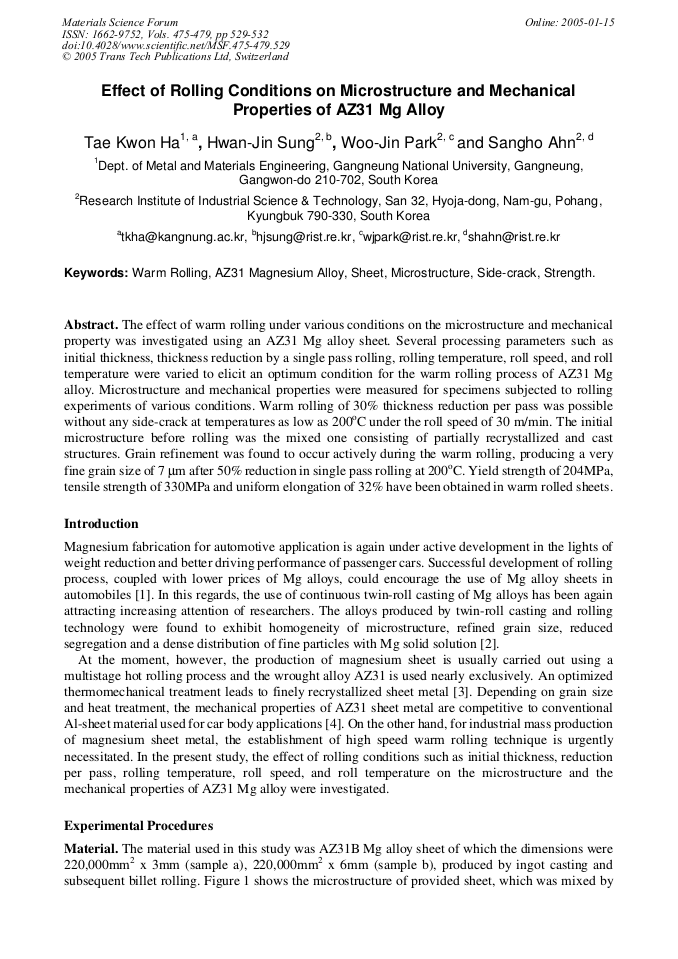

Article Preview

The effect of warm rolling under various conditions on the microstructure and mechanical property was investigated using an AZ31 Mg alloy sheet. Several processing parameters such as initial thickness, thickness reduction by a single pass rolling, rolling temperature, roll speed, and roll temperature were varied to elicit an optimum condition for the warm rolling process of AZ31 Mg alloy. Microstructure and mechanical properties were measured for specimens subjected to rolling experiments of various conditions. Warm rolling of 30% thickness reduction per pass was possible without any side-crack at temperatures as low as 200oC under the roll speed of 30 m/min. The initial microstructure before rolling was the mixed one consisting of partially recrystallized and cast structures. Grain refinement was found to occur actively during the warm rolling, producing a very fine grain size of 7 µm after 50% reduction in single pass rolling at 200oC. Yield strength of 204MPa, tensile strength of 330MPa and uniform elongation of 32% have been obtained in warm rolled sheets.



Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie




T. K. Ha et al., "Effect of Rolling Conditions on Microstructure and Mechanical Properties of AZ31 Mg Alloy", Materials Science Forum, Vols. 475-479, pp. 529-532, 2005

Online since:

January 2005




[1] R. E. Brown: Proceedings of 59th Annual World Magnesium Conference (Inter. Magnesium Association, VA, USA 2002), p.25.

[2] S. S. Park, Y. S. Park, and N. J. Kim: Met. Mater. Int., Vol. 8 (2002), p.551.

[3] L. Chabbi, W. Lehnert, and R. Kawalla: Magnesium Alloys and Their Applications, Ed. K. U. Kainer (Wiley-VCH-Verlag, Weinheim 2000), p.590.

[4] M. Avedesian and H. Baker: ASM Specialty Handbook Magnesium and Magnesium Alloys, (ASM International 1999).

[5] J. A. Chapman and D. V. Wilson: J. Inst. Metals, Vol. 91 (1962), p.39. (a) (b) (c) (a) (b) (c) (a)(a) (b)(b) (c)(c).
