Microstructure and Properties of Directionally Solidified NbSi2/ Nb5Si3 Composites

Abstract:

Article Preview

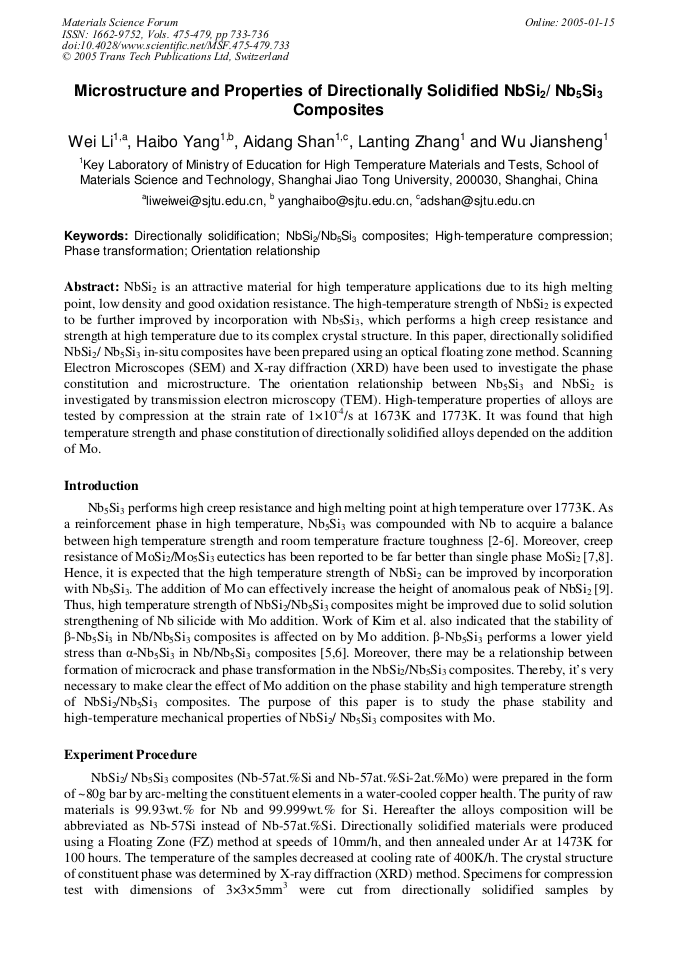

NbSi2 is an attractive material for high temperature applications due to its high melting point, low density and good oxidation resistance. The high-temperature strength of NbSi2 is expected to be further improved by incorporation with Nb5Si3, which performs a high creep resistance and strength at high temperature due to its complex crystal structure. In this paper, directionally solidified NbSi2/ Nb5Si3 in-situ composites have been prepared using an optical floating zone method. Scanning Electron Microscopes (SEM) and X-ray diffraction (XRD) have been used to investigate the phase constitution and microstructure. The orientation relationship between Nb5Si3 and NbSi2 is investigated by transmission electron microscopy (TEM). High-temperature properties of alloys are tested by compression at the strain rate of 1×10-4/s at 1673K and 1773K. It was found that high temperature strength and phase constitution of directionally solidified alloys depended on the addition of Mo.

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie

Pages:

733-736

Citation:

W. Li et al., "Microstructure and Properties of Directionally Solidified NbSi2/ Nb5Si3 Composites", Materials Science Forum, Vols. 475-479, pp. 733-736, 2005

Online since:

January 2005

Export:

Price:

$38.00

[1] M.G. Mendiratta, D.M. Dimiduk: Scripta Metallurgica et Materialia Vol. 1 (1991), p.237.

[2] M.G. Mendiratta, D.M. Dimiduk: Metall. Trans. A Vol. 1 (1993), p.501.

[3] M.R. Jackson, B.P. Bewlay: R.G. Rowe: JOM Vol. 48(1996), p.39.

[4] B.P. Bewlay, M.R. Jackson, H.A. Lipsitt: Metall. Mater. Trans. Vol. 1 (1996), p.3801.

[5] W-Y. Kim, H. Tanaka, and S. Hanada: Intermetallics Vol. 1 (2002), p.625.

[6] W. -Y. Kim, H. Tanaka, and A. Kasama: Intermetallics Vol. 9 (2001), p.521.

[7] D.P. Mason and D.C. Van Aken: Scripta Metallurgica et Materialia Vol. 28 (1993), p.183.

[8] D.P. Mason , D.C. Van Aken and J.F. Mansfield: Acta Metal. Mater. Vol. 43(1995), p.1189.

[9] Y. Umakoshi, T. Nakano, E. Yanagisawa, T. Takezoe, A. Negishi: Mat. Sci. Eng. A, Vol. 239-240 (1997), p.102.

[10] M.E. Schlesinger, H. Okamoto, and A.B. Gokhale: J. Phase Equil. Vol. 14(1993), p.502.

[11] P.B. Fernandes, G.C. Coelho, F. Ferreira, C.A. Nunes, B. Sundman: Intermetallics, Vol. 10 (2002), p.993.

[12] F. Chu, D.J. Thoma, K. Mcclellan, P. Peralta, Y. He: Intermetallics. Vol. 7(1999).
