Optical Activity of Deuterated Analog of L-Arginine Phosphate Single Crystals

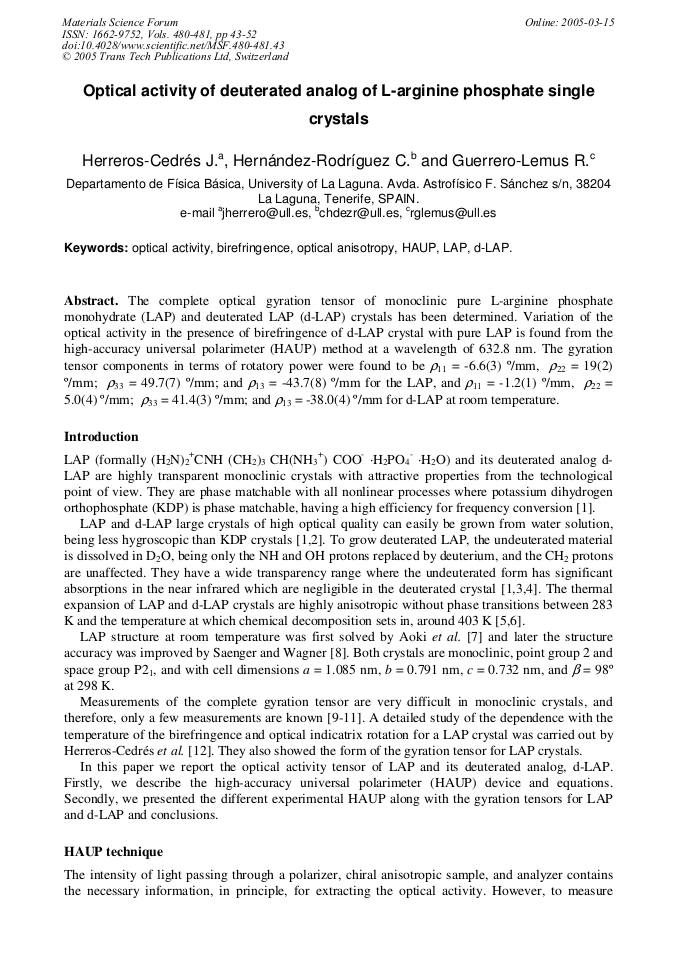

Article Preview

The complete optical gyration tensor of monoclinic pure L-arginine phosphate monohydrate (LAP) and deuterated LAP (d-LAP) crystals has been determined. Variation of the optical activity in the presence of birefringence of d-LAP crystal with pure LAP is found from the high-accuracy universal polarimeter (HAUP) method at a wavelength of 632.8 nm. The gyration tensor components in terms of rotatory power were found to be r11 = -6.6(3) º/mm, r22 = 19(2) º/mm; r33 = 49.7(7) º/mm; and r13 = -43.7(8) º/mm for the LAP, and r11 = -1.2(1) º/mm, r22 = 5.0(4) º/mm; r33 = 41.4(3) º/mm; and r13 = -38.0(4) º/mm for d-LAP at room temperature.



Materials Science Forum (Volumes 480-481)

Edited by:

A. Méndez-Vilas




J. Herreros-Cedrés et al., "Optical Activity of Deuterated Analog of L-Arginine Phosphate Single Crystals", Materials Science Forum, Vols. 480-481, pp. 43-52, 2005

Online since:

March 2005




[1] D. Eimerl, S. Velsko, L. Davis, F. Wang, G. Loiacono and G. Kennedy: IEEE J. Quantum Electron. 25 (1989), p.179.

DOI: https://doi.org/10.1109/3.16261

[2] A.M. Petrosyan, R.P. Sukiasyan, H.A. Karapetyan, S.S. Terzyan and R.S. Feigelson: J. Cryst. Growth. 213 (2000) , p.103.

[3] A. Yokotani, T. Sasaki, K. Yoshida and S. Nakai: Appl. Phys. Lett. 55 (1989) , p.2692.

[4] G. Dhanaraj, M.R. Srinivasan and H.L. Bhat: J. Raman Spectrosc. 22 (1991), p.177.

[5] G. Dhanaraj, M.R. Srinivasan, H.L. Bhat, H.S. Jayanna and S.V. Subramanyan: J. Appl. Phys. 72 (1992), p.3464.

[6] B. A. Fuchs, C. K. Syn and S.P. Velsko: Appl. Opt. 28 (1989), p.4465.

[7] K. Aoki, K. Nagamo and Y. Iitaka: Acta. Cryst. B27 (1971), p.11.

[8] W. Saenger and K.G. Wagner: Acta. Cryst. B28 (1972), p.2237.

[9] D. Mucha D, K. Stadnicka, W. Kaminsky and A.M. Glazer: J. Phys.: Condens. Matter. 9 (1997), p.10829.

[10] T. Ashai, M. Takahashi and J. Kobayashi: Acta Cryst. A53 (1997), p.763.

[11] W. Kaminsky: Rep. Prog. Phys. 63 (2000), p.1575.

[12] J. Herreros-Cedrés, C. Hernández-Rodríguez, B. González-Díaz and R. Guerrero-Lemus: Appl. Phys. B 77 (2003), p.607.

DOI: https://doi.org/10.1007/s00340-003-1327-z

[13] J. Kobayashi and Y. Uesu: J. Appl. Cryst. 16 (1983), p.204.

[14] J. Kobayashi, Y. Uesu and H. Takehara: J. Appl. Cryst. 16 (1983), p.212.

[15] P. Gómez P and C. Hernández: J. Opt. Soc. Am. B 15 (1998), p.1147.

[16] J.R.L. Moxon and A.R. Renshaw: J. Phys.: Condens. Matter. 2 (1990), p.6807.

[17] J. Kobayashi, H. Kumoni and K. Saito: J. Appl. Cryst. 19 (1986), p.377.

[18] C. Hernández-Rodríguez, P. Gómez-Garrido and S. Veintemillas: J. Appl. Cryst. 33 (2000), p.938.

[19] J.F. Nye: Physical Properties of Crystals (2 nd ed. Clarendon Press, Oxford 1985).

[20] W. Kaminsky: Z. Kristallogr. Suppl. 12 (1997), p.183.
