Detection Properties of CdZnTe Semiconductor for Diagnostic X-Ray Spectroscopic Applications

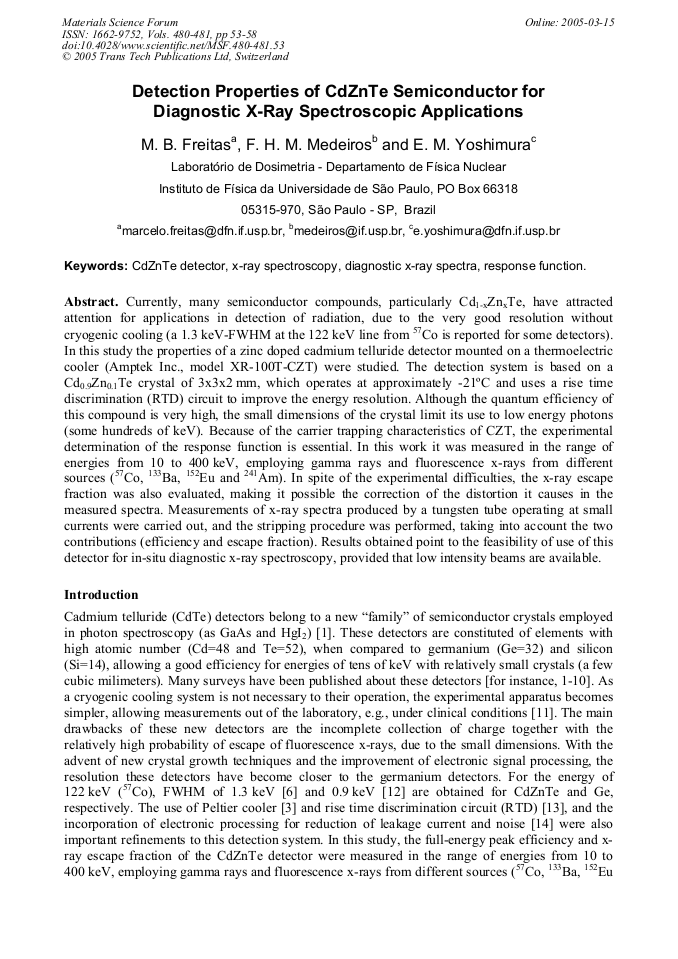

Article Preview

Currently, many semiconductor compounds, particularly Cd1-xZnxTe, have attracted attention for applications in detection of radiation, due to the very good resolution without cryogenic cooling (a 1.3 keV-FWHM at the 122 keV line from 57Co is reported for some detectors). In this study the properties of a zinc doped cadmium telluride detector mounted on a thermoelectric cooler (Amptek Inc., model XR-100T-CZT) were studied. The detection system is based on a Cd0.9Zn0.1Te crystal of 3x3x2 mm, which operates at approximately -21°C and uses a rise time discrimination (RTD) circuit to improve the energy resolution. Although the quantum efficiency of this compound is very high, the small dimensions of the crystal limit its use to low energy photons (some hundreds of keV). Because of the carrier trapping characteristics of CZT, the experimental determination of the response function is essential. In this work it was measured in the range of energies from 10 to 400 keV, employing gamma rays and fluorescence x-rays from different sources (57Co, 133Ba, 152Eu and 241Am). In spite of the experimental difficulties, the x-ray escape fraction was also evaluated, making it possible the correction of the distortion it causes in the measured spectra. Measurements of x-ray spectra produced by a tungsten tube operating at small currents were carried out, and the stripping procedure was performed, taking into account the two contributions (efficiency and escape fraction). Results obtained point to the feasibility of use of this detector for in-situ diagnostic x-ray spectroscopy, provided that low intensity beams are available.



Materials Science Forum (Volumes 480-481)

Edited by:

A. Méndez-Vilas




M.B. Freitas et al., "Detection Properties of CdZnTe Semiconductor for Diagnostic X-Ray Spectroscopic Applications", Materials Science Forum, Vols. 480-481, pp. 53-58, 2005

Online since:

March 2005




[1] McGregor, D. S. and Hermon, H., Nucl. Instr. and Meth. A395, 101 (1997).

[2] Di Castro, E., Pani, R., Pellegrini, R. and Bacci, C., Phys. Med. Biol. 29(9), 1117 (1984).

[3] Khusainov, A. Kh., Nucl. Instr. and Meth. A322, 335 (1992).

[4] Conti, M. et al., Nucl. Instr. and Meth. A322, 591 (1992).

[5] Eisen, Y., Nucl. Instr. and Meth. A380, 431 (1996).

[6] Becker, P. H. B., Espectrometria de feixes de raios X com detector de telureto de cádmio e zinco. Master thesis (in Portuguese). Instituto Militar de Engenharia (IME), Rio de Janeiro (1997).


[7] Dardenne, Y. X. et al., Nucl. Instr. and Meth. A422, 159 (1999).

[8] Miyajima, S., Sakuragi, H. and Matsumoto, M., Nucl. Instr. and Meth. A485, 533 (2002).

[9] Miyajima, S., Imagawa, K., and Matsumoto, M., Med. Phys. 29(7), 1421 (2002).

[10] Miyajima, S., Med. Phys. 30(5), 771 (2003).

[11] Matsumoto, M., Yamamoto, A., Honda, I., Taniguchi, A. and Kanamori, H., Med. Phys. 27(7), 1490 (2000).

[12] Debertin, K. and Helmer, R., G., Gamma and x-ray spectrometry with semiconductor detectors. (North-Holland , Netherlands, 1988).

[13] Ritcher, M. and Siffert, P., Nucl. Instr. and Meth. A322, 529 (1992).

[14] Redus, R. et al., Nucl. Instr. and Meth. A353, 59 (1994).

[15] Milner, W. T., VAXPAK programs notes - private comunications, ORNL - OAK Ridge National Laboratory, USA (1986).

[16] Seelenntag, W. W. and Panzer, W., Phys. Med. Biol. 24(4), 767 (1979).

[17] Seuntjens, J., Thierens, H., Van der Plaetsen, A. and Segaert, O., Phys. Med. Biol. 32(5), 595 (1987).
