Large Area DPB Free (111) β-SiC Thick Layer Grown on (0001) α-SiC Nominal Surfaces by the CF-PVT Method

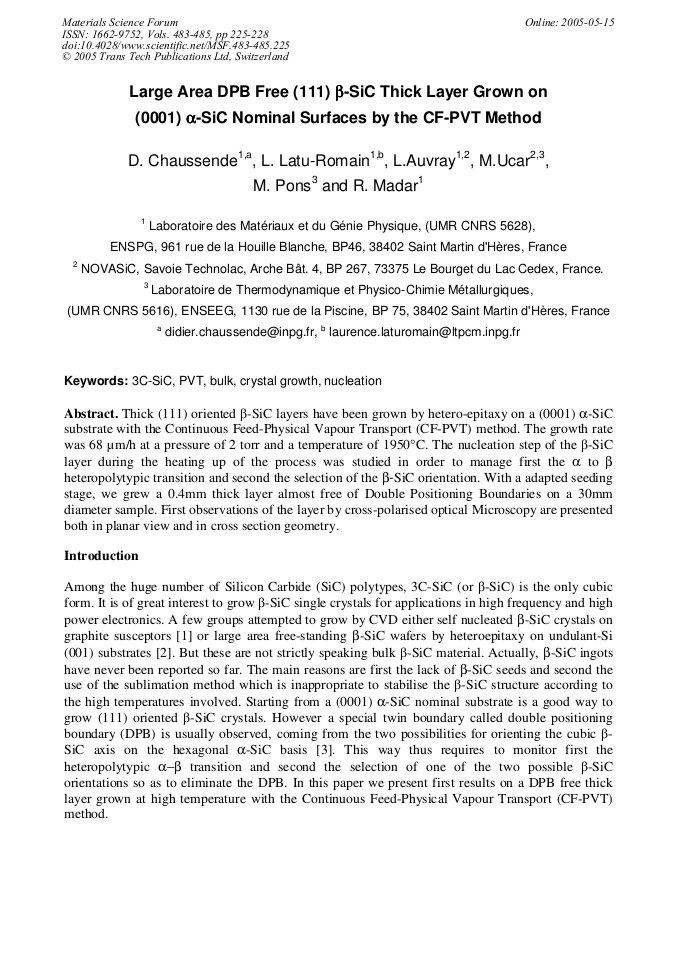

Article Preview

Thick (111) oriented β-SiC layers have been grown by hetero-epitaxy on a (0001) a-SiC substrate with the Continuous Feed-Physical Vapour Transport (CF-PVT) method. The growth rate was 68 µm/h at a pressure of 2 torr and a temperature of 1950°C. The nucleation step of the β-SiC layer during the heating up of the process was studied in order to manage first the a to b heteropolytypic transition and second the selection of the b-SiC orientation. With a adapted seeding stage, we grew a 0.4mm thick layer almost free of Double Positioning Boundaries on a 30mm diameter sample. First observations of the layer by cross-polarised optical Microscopy are presented both in planar view and in cross section geometry.



Materials Science Forum (Volumes 483-485)

Edited by:

Dr. Roberta Nipoti, Antonella Poggi and Andrea Scorzoni




D. Chaussende et al., "Large Area DPB Free (111) β-SiC Thick Layer Grown on (0001) α-SiC Nominal Surfaces by the CF-PVT Method", Materials Science Forum, Vols. 483-485, pp. 225-228, 2005

Online since:

May 2005




[1] S.N. Gorin, L.M. Ivanova, Phys. Stat. Sol. (b) 202 (1997) p.221.

[2] H. Nagasawa, K. Yagi, Phys. Stat. Sol. (b) 202 (1997) p.335.

[3] H.S. Kong, B.L. Liang, J.T. Glass, G.A. Rozgonyi, K.L. More, Journal of Applied Physics 63(8) (1988) p.2645.

[4] D. Chaussende, F. Baillet, L. Charpentier, E. Pernot, M. Pons, and R. Madar, Journal of the Electrochemical Society 150 (2003) p. G653.


[5] D. Chaussende, P. Chaudouet, L. Auvray, R. Madar, Materials Science Forum 457-460 (2004) p.387.

[6] L. Latu-Romain, D. Chaussende, P. Chaudouët, F. Robaut, G. Berthomé, M. Pons and R. Madar, Proceeding of the 14th International Conference on Crystal Growth (2004) August 9-13, Grenoble.


[7] H.N. Jayatirtha, M.G. Spencer, C. Taylor, W. Greg, Journal of Crystal Growth 174 (1997) p.662.
