Study of Carbon in Thermal Oxide Formed on 4H-SiC by XPS


Article Preview

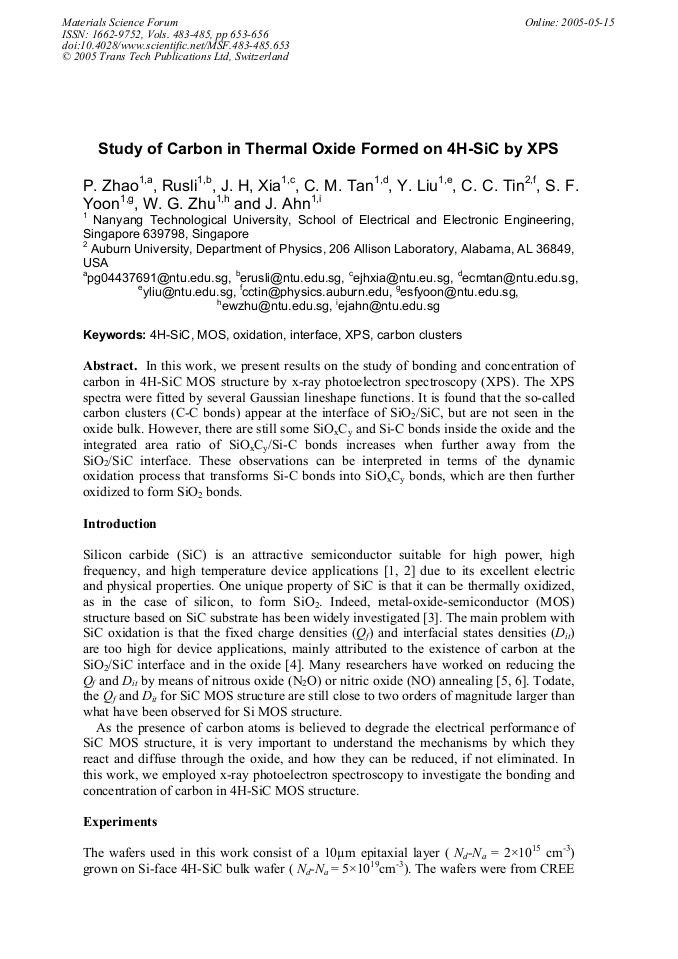

In this work, we present results on the study of bonding and concentration of carbon in 4H-SiC MOS structure by x-ray photoelectron spectroscopy (XPS). The XPS spectra were fitted by several Gaussian lineshape functions. It is found that the so-called carbon clusters (C-C bonds) appear at the interface of SiO2/SiC, but are not seen in the oxide bulk. However, there are still some SiOxCy and Si-C bonds inside the oxide and the integrated area ratio of SiOxCy/Si-C bonds increases when further away from the SiO2/SiC interface. These observations can be interpreted in terms of the dynamic oxidation process that transforms Si-C bonds into SiOxCy bonds, which are then further oxidized to form SiO2 bonds.



Materials Science Forum (Volumes 483-485)

Edited by:

Dr. Roberta Nipoti, Antonella Poggi and Andrea Scorzoni




P. Zhao et al., "Study of Carbon in Thermal Oxide Formed on 4H-SiC by XPS", Materials Science Forum, Vols. 483-485, pp. 653-656, 2005

Online since:

May 2005




[1] J. B. Casady, R. W. Johnson: Solid-State Electronics Vol. 39 (1996), p.1049.

[2] W. J. Choyke, G. Pensl: MRS BULL. March (1997), p.25.

[3] J. A. Cooper, Jr: phys. stat. sol. (a) Vol. 162 (1997), p.305.

[4] M. Bassler, G. Pensl, V. Afanasev: Diam. Rela. Mater. Vol. 6 (1997), p.1472.

[5] H. F. Li, S. Dimitrijey, H. B. Harrison: Appl. Phys. Lett. Vol. 70 (1997), p. (2028).

[6] G. Y. Chung, C. C. Tin, J. R. Williams: Appl. Phys. Lett. Vol. 76 (2000), p.1713.

[7] Y. Hijikata, H. Yaguchi, M. Yoshikawa, S. Yoshida: Appl. Surf. Sci. Vol. 184 (2001), p.161.
