Influences of Fiber Orientation on the Progressive Damage in Glass Reinforced Hybrid Composite

Abstract:

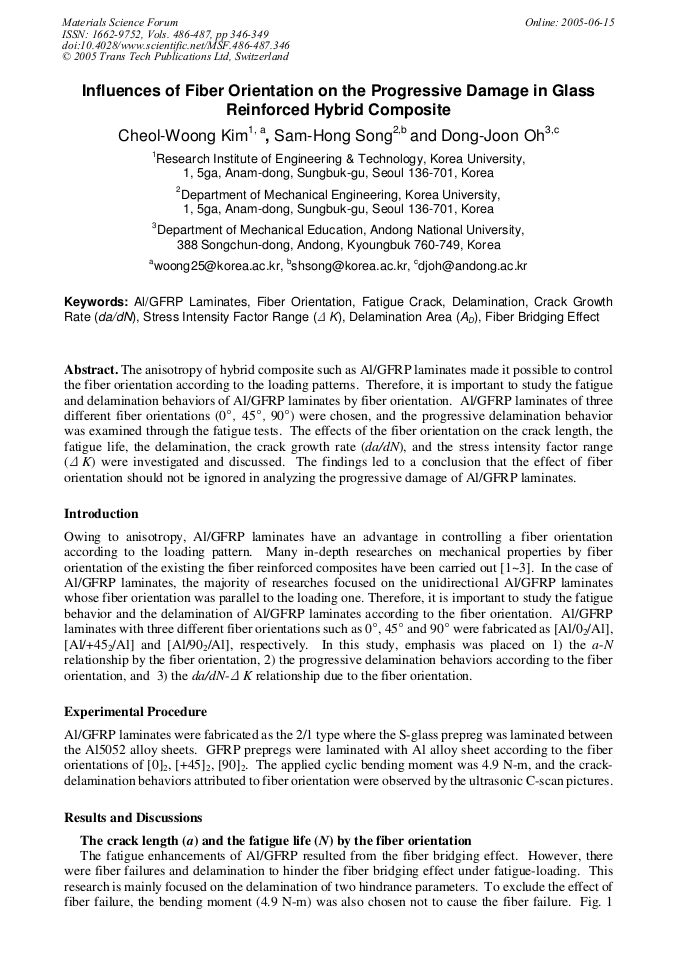

Article Preview

The anisotropy of hybrid composite such as Al/GFRP laminates made it possible to control the fiber orientation according to the loading patterns. Therefore, it is important to study the fatigue and delamination behaviors of Al/GFRP laminates by fiber orientation. Al/GFRP laminates of three different fiber orientations (0°, 45°, 90°) were chosen, and the progressive delamination behavior was examined through the fatigue tests. The effects of the fiber orientation on the crack length, the fatigue life, the delamination, the crack growth rate (da/dN), and the stress intensity factor range ( ΔK) were investigated and discussed. The findings led to a conclusion that the effect of fiber orientation should not be ignored in analyzing the progressive damage of Al/GFRP laminates.

Info:

Periodical:

Materials Science Forum (Volumes 486-487)

Edited by:

Hyung Sun Kim, Sang-Yeop Park, Bo Young Hur and Soo Wohn Lee

Pages:

346-349

Citation:

C. W. Kim et al., "Influences of Fiber Orientation on the Progressive Damage in Glass Reinforced Hybrid Composite", Materials Science Forum, Vols. 486-487, pp. 346-349, 2005

Online since:

June 2005

Export:

Price:

$38.00

[1] N. S. Choi and A. J. Kinloch, Delamination Behavior of Multidirectional Laminates Under the Mode I Loading, Transaction of the KSME, A, Vol. 22, No. 3 (1998), p.611~623.

[2] Carl R. Lopper, Jr. and Junyoung Park, On the Mechanism of Formation of Widmanstatten Graphite in Flake Graphite Cast Irons, Metals and Materials International, Vol. 9, No. 4 (2003), p.327~336.

DOI: https://doi.org/10.1007/bf03027184

[3] Sam-Hong Song and Cheol-Woong Kim, Analysis of Delamination Behavior on the Stacking Sequence of Prosthetic Foot Keel in Glass Fiber Reinforced Laminates, Transaction of the KSME, A, Vol. 27, No. 4 (2003), p.623~631.

DOI: https://doi.org/10.1007/bf02984360

[4] Marissen R., Fatigue Crack Growth in ARALL; A Hybrid Aluminum-Aramid Composite Material: Crack Growth Mechanism and Quantitative Prediction of the Crack Growth Rate, Ph. D. Thesis, Delft University of Technology (1988), the Netherlands.

DOI: https://doi.org/10.1007/978-3-642-84792-9_10

[5] Takamatsu T., Matsumura T., Ogura N., Shimokawa T., Kakuta Y., Fatigue Crack Growth Properties of a GLARE3-5/4 Fiber/Metal Laminates, Engineering Fracture Mechanics, Vol. 63 (1999), p.253~272.

DOI: https://doi.org/10.1016/s0013-7944(99)00021-1
