Orientation Dependence of Ductility of Mg Single Crystals at Elevated Temperature

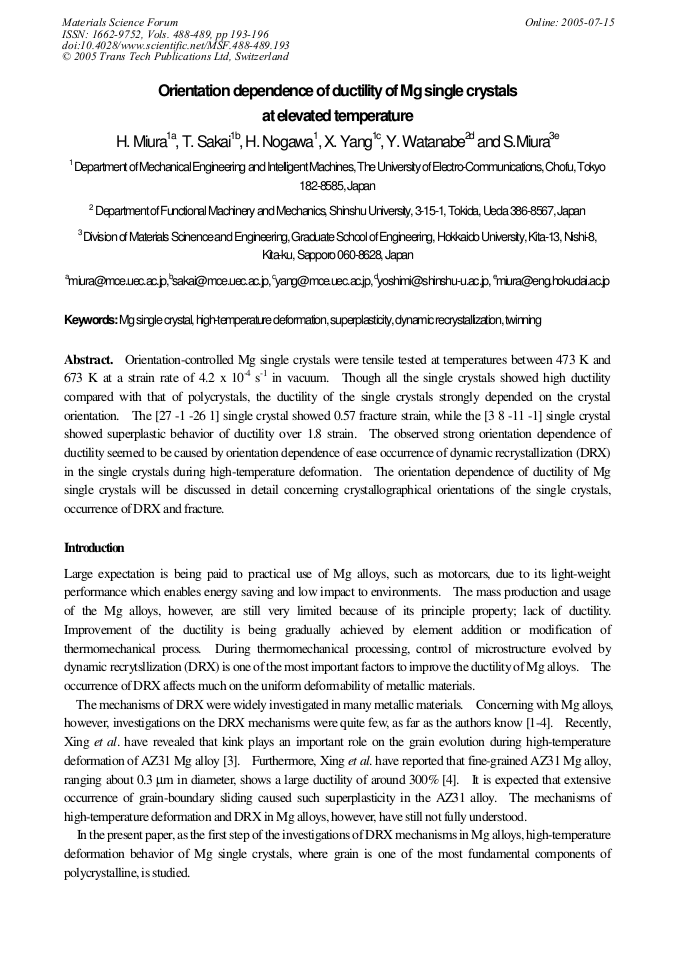

Article Preview

Orientation-controlled Mg single crystals were tensile tested at temperatures between 473 K and 673 K at a strain rate of 4.2 x 10-4 s-1 in vacuum. Though all the single crystals showed high ductility compared with that of polycrystals, the ductility of the single crystals strongly depended on the crystal orientation. The [27 -1 -26 1] single crystal showed 0.57 fracture strain, while the [3 8 -11 -1] single crystal showed superplastic behavior of ductility over 1.8 strain. The observed strong orientation dependence of ductility seemed to be caused by orientation dependence of ease occurrence of dynamic recrystallization (DRX) in the single crystals during high-temperature deformation. The orientation dependence of ductility of Mg single crystals will be discussed in detail concerning crystallographical orientations of the single crystals, occurrence of DRX and fracture.



Materials Science Forum (Volumes 488-489)

Edited by:

W.Ke, E.H.Han, Y.F.Han, K.Kainer and A.A.Luo




H. Miura et al., "Orientation Dependence of Ductility of Mg Single Crystals at Elevated Temperature", Materials Science Forum, Vols. 488-489, pp. 193-196, 2005

Online since:

July 2005




[1] O. Stidikov and R. Kaibyshev, Mater. Trans. Vol. 42 (2001), p. (1928).

[2] A. Takara, Y. Nishikawa, H. Watanabe, H. Somekawa, T. Mukai and K. Higashi, Mater. Trans. Vol. 45 (2004), p.2377.

[3] X. Yang, H. Miura and T. Sakai, Mater, Trans., Vol. 44 (2003), p.197.

[4] J. Xing, X. Yang, H. Miura and T. Sakai, Proc. Inter. Nat. Conf. on Mg, Beijin, Mater. Sci. Forum (2004) in press.

[5] H. Yoshinaga and R. Horiuchi, Trans. JIM., Vol. 13 (1962), p.220.

[6] X. Yang, H. Miura and T. Sakai, Mater. Trans. Vol. 43 (2002), p.2400. Fig. 4 Crystal rotation during tensile deformation of the single Crystals of A and B. T.D. is the tensile direction.
