Preparation Technologies and Applications of Strontium-Magnesium Master Alloys

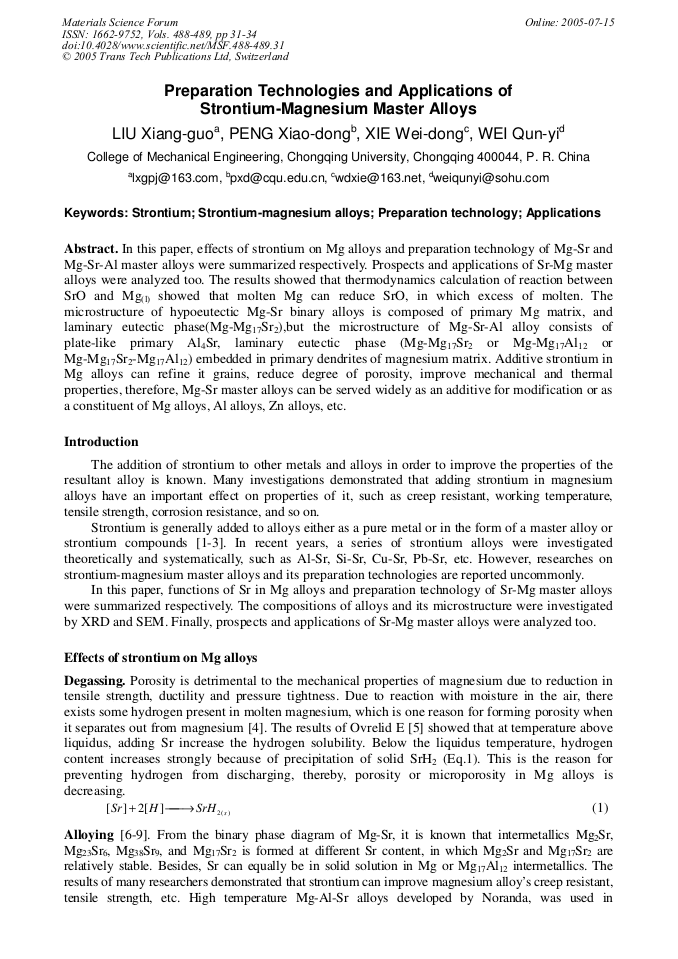

Article Preview

In this paper, effects of strontium on Mg alloys and preparation technology of Mg-Sr and Mg-Sr-Al master alloys were summarized respectively. Prospects and applications of Sr-Mg master alloys were analyzed too. The results showed that thermodynamics calculation of reaction between SrO and Mg(l) showed that molten Mg can reduce SrO, in which excess of molten. The microstructure of hypoeutectic Mg-Sr binary alloys is composed of primary Mg matrix, and laminary eutectic phase(Mg-Mg17Sr2),but the microstructure of Mg-Sr-Al alloy consists of plate-like primary Al4Sr, laminary eutectic phase (Mg-Mg17Sr2 or Mg-Mg17Al12 or Mg-Mg17Sr2-Mg17Al12) embedded in primary dendrites of magnesium matrix. Additive strontium in Mg alloys can refine it grains, reduce degree of porosity, improve mechanical and thermal properties, therefore, Mg-Sr master alloys can be served widely as an additive for modification or as a constituent of Mg alloys, Al alloys, Zn alloys, etc.



Materials Science Forum (Volumes 488-489)

Edited by:

W.Ke, E.H.Han, Y.F.Han, K.Kainer and A.A.Luo




X. G. Liu et al., "Preparation Technologies and Applications of Strontium-Magnesium Master Alloys", Materials Science Forum, Vols. 488-489, pp. 31-34, 2005

Online since:

July 2005




[1] Nussbaum R. P: US Patent 5, 147, 603 (1992).

[2] Gruzleski: US Patent 5, 143, 564 (1992).

[3] Pekguleryuz: US Patent 6, 322, 644 (2001).

[4] Shabestari S G, Miresmaeili S M, Boutorabi S M A: J. Mater. Sci. Vol. 38 (2002), p. (1901).

[5] Ovrelid E, Floistad G B, Rosenqvist T: Scandinavian Journal Metall. Vol. 27 (1998), p.133.

[6] Pekguleryuz M O, Baril E, Labelle P, et al: J. Advanced Mater. Vol. 35 (3) (2003), p.32.

[7] Baril E, Labelle P, Pekguleryuz M O: JOM Vol. 55(11) (2003), p.34.

[8] Forakis P, Richard E, Argo D: TMS Annual Meeting: Magnesium Technology 2002, Seattle, USA, p.49.

[9] Argo D, Lefebvre M: TMS Annual Meeting: Magnesium Technology 2003, San Diego, USA, p.15.

[10] YE Da-lun, HU Jian-hua: Practical Thermodynamic Data Handbook of Inorganic Substance (Metallurgical Industry Press, China 2002).

[11] Langlais J. Strontium Extraction by Aluminothermic Reduction (Ph. D Thesis of McGill University, Montreal, Canada 1991).

[12] YU Jue-qi, YI Wen-zhi, CHEN bang-di et al: Phase Diagram Album of Binary Alloys (Science and Technology Press of Shanghai, China 1987) Fig. 5 Microstructure of Mg-Sr-Al ternary alloy prepared by mixture method b a ×100.
