The Effects of Grain Size on Ductility of AZ31 Magnesium Alloy

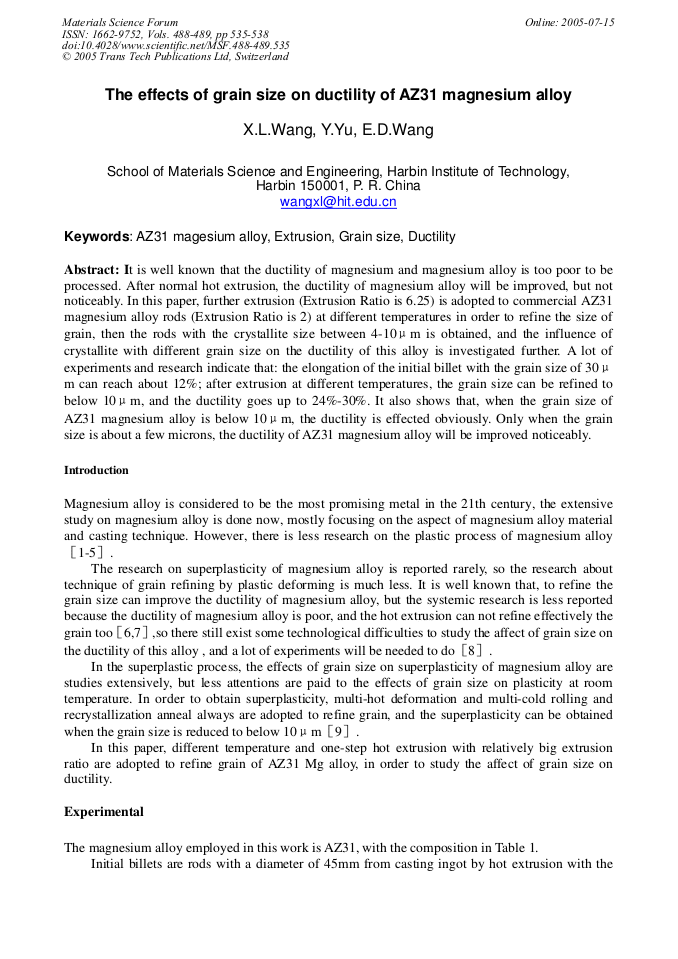

Article Preview

It is well known that the ductility of magnesium and magnesium alloy is too poor to be processed. After normal hot extrusion, the ductility of magnesium alloy will be improved, but not noticeably. In this paper, further extrusion (Extrusion Ratio is 6.25) is adopted to commercial AZ31 magnesium alloy rods (Extrusion Ratio is 2) at different temperatures in order to refine the size of grain, then the rods with the crystallite size between 4-10μm is obtained, and the influence of crystallite with different grain size on the ductility of this alloy is investigated further. A lot of experiments and research indicate that: the elongation of the initial billet with the grain size of 30μ m can reach about 12%; after extrusion at different temperatures, the grain size can be refined to below 10μm, and the ductility goes up to 24%-30%. It also shows that, when the grain size of AZ31 magnesium alloy is below 10μm, the ductility is effected obviously. Only when the grain size is about a few microns, the ductility of AZ31 magnesium alloy will be improved noticeably.



Materials Science Forum (Volumes 488-489)

Edited by:

W.Ke, E.H.Han, Y.F.Han, K.Kainer and A.A.Luo




X.L. Wang et al., "The Effects of Grain Size on Ductility of AZ31 Magnesium Alloy", Materials Science Forum, Vols. 488-489, pp. 535-538, 2005

Online since:

July 2005




[1] B.L. Mordike,T. ebert:Material Science and Engineering, A302(2001), p.37.

[2] YU Kun, LI Wen-xian, WANG Ri-chu , MA Zhang-qing: The Chinese Journal of Nonferrous Metals: 13(2) (2003), p.277.

[3] CahnR W, Shi Chang-xu, KE Jun: Beijing: Science Press, (1999), p.101.

[4] Kojima Y: Mater. Sci. Forum Vol. 350-351 ( 2000), p.3.

[5] Froes F H., Eliezer D, Aghion E: JOM 1998(9), p.30.

[6] Tsutomu Murai, Shin-ichi Matsuoka, Susuma Miyamoto, Yoshinari Oki: Journal of Materials Processing Technology Vol. 141 (2003), p.207.

[7] Toshiji Mudai, Masashi Yamanoi, Hiroyuki Watanabe, and Kenji Higashi: Scripta Materialia Vol. 45 (2001), p.89.


[8] Margam chandrasekaran, Yong Ming Shyan John: Materials science and Engineering, Vol. 381 (2004), p.308.

[9] Tien-Chan Chang, Jian-Yi Wang, Chia-Ming O, Shyong Lee: Journal of Materials Processing Technology, 140(2003).
