Study of Grain Refinement and SiC Nanoparticle Reinforced Magnesium Alloys


Article Preview

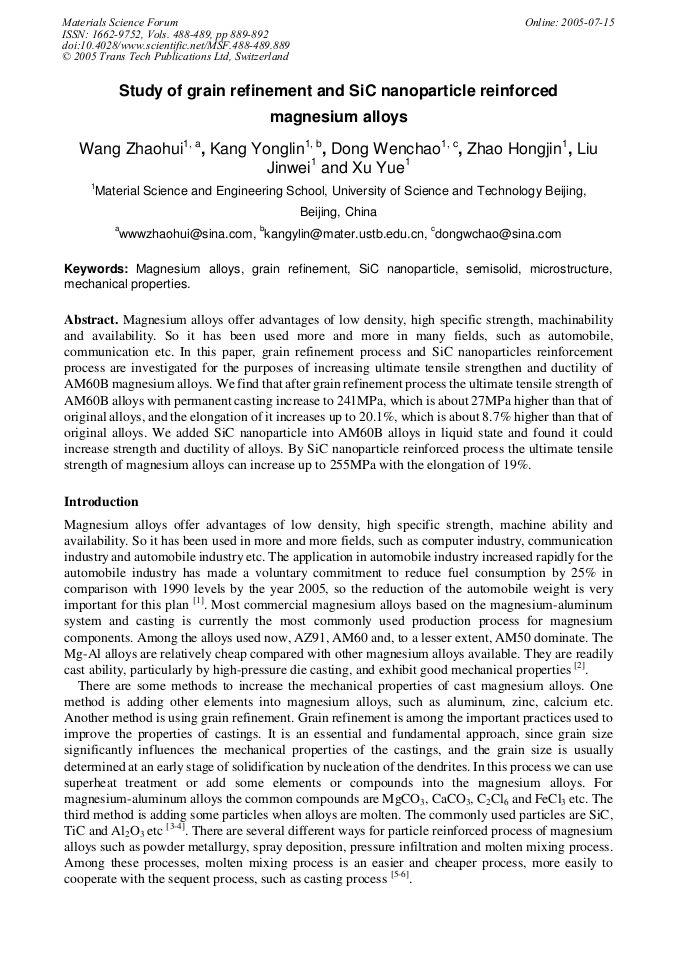

Magnesium alloys offer advantages of low density, high specific strength, machinability and availability. So it has been used more and more in many fields, such as automobile, communication etc. In this paper, grain refinement process and SiC nanoparticles reinforcement process are investigated for the purposes of increasing ultimate tensile strengthen and ductility of AM60B magnesium alloys. We find that after grain refinement process the ultimate tensile strength of AM60B alloys with permanent casting increase to 241MPa, which is about 27MPa higher than that of original alloys, and the elongation of it increases up to 20.1%, which is about 8.7% higher than that of original alloys. We added SiC nanoparticle into AM60B alloys in liquid state and found it could increase strength and ductility of alloys. By SiC nanoparticle reinforced process the ultimate tensile strength of magnesium alloys can increase up to 255MPa with the elongation of 19%.



Materials Science Forum (Volumes 488-489)

Edited by:

W.Ke, E.H.Han, Y.F.Han, K.Kainer and A.A.Luo




Z. H. Wang et al., "Study of Grain Refinement and SiC Nanoparticle Reinforced Magnesium Alloys", Materials Science Forum, Vols. 488-489, pp. 889-892, 2005

Online since:

July 2005




[1] H. Friedrich, S. Schumann, Materials processing technology. Vol. 117 (2001), p.276.

[2] Arne K. Dahle, Young C. Lee and Mark D. Nave, et al., Light Metals, Vol. 1 (2001), p.61.

[3] T.W. Hong, S.K. Kim and H.S. Ha, et al., Mater. Sci. Tech., Vol 16 (2000), p.887.

[4] Q.C. Jiang, X.L. Li and H.Y. Wang, Scripta Materialia, Vol 48 (2003), p.713.

[5] D.J. Lloyd, International Material Reviews, Vol 39 (1994), p.1.

[6] H. Ferkel, B.L. mordike, Material Science and Engineering, Vol A298 (2001), p.193.

[45] [50] [55] [60] [65] [0] 0. 1 0. 3 0. 5 1 SiC nanoparticle addition /vol. % Hardness /HB Fig. 5 Dependence of Ball hardness on SiC nanoparticles addition.

[50] 100 150 200 250 300.

[5] [10] [15] [20] [25] [30] δδδδ σσσσ UTSUTSUTSUTS Elongation /% Ultimate tensile strength /MPa.

0. 1 0. 3 0. 5 1. 0 nanoparticle volume fraction /vol. % Fig. 4 Dependence of σUTS and δ on SiC nanoparticles addition.
