Stress Relaxation on Polished Cross-Sections of Al2O3/ZrO2 FGM Discs Measured by Raman Spectroscopy

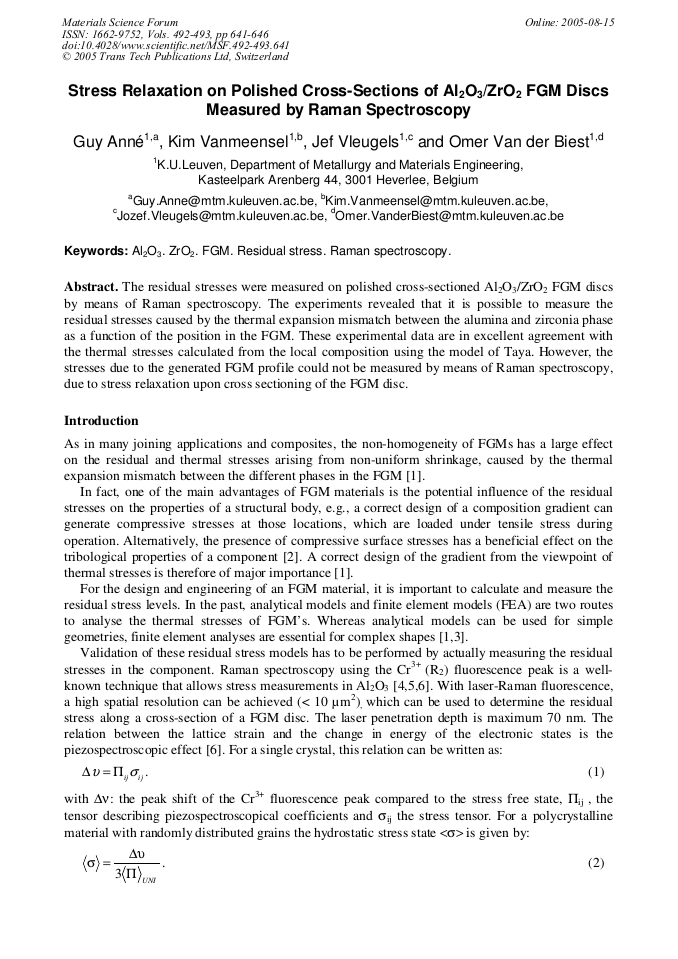

Article Preview

The residual stresses were measured on polished cross-sectioned Al2O3/ZrO2 FGM discs by means of Raman spectroscopy. The experiments revealed that it is possible to measure the residual stresses caused by the thermal expansion mismatch between the alumina and zirconia phase as a function of the position in the FGM. These experimental data are in excellent agreement with the thermal stresses calculated from the local composition using the model of Taya. However, the stresses due to the generated FGM profile could not be measured by means of Raman spectroscopy, due to stress relaxation upon cross sectioning of the FGM disc.



Materials Science Forum (Volumes 492-493)

Edited by:

Omer Van der Biest, Michael Gasik, Jozef Vleugels




G. Anné et al., "Stress Relaxation on Polished Cross-Sections of Al2O3/ZrO2 FGM Discs Measured by Raman Spectroscopy ", Materials Science Forum, Vols. 492-493, pp. 641-646, 2005

Online since:

August 2005




[1] T. L. Becker, R.M. Cannon and R.O. Ritchie: Mechanics of Materials Vol. 32 (2000), p.85.

[2] F. Toschi, C. Melandri, P. Pinasco, E. Roncari, S. Guicciardi and G. de Portu: J. Am. Ceram. Soc. Vol. Vol. 86 (2003), p.1547.

[3] Z.M. Yang, Z.G. Zhou and L.M. Zhang: Mater. Sci. & Eng. Vol. A358 (2003), p.214.

[4] Q. Ma and D. Clarke: J. Am. Ceram. Soc. Vol. 76 (1993), p.1433.

[5] E. Merlani, C. Schmid and V. Sergo: J. Am. Ceram. Soc. Vol. 84 (2001), p.2962.

[6] J. He and D. Clarke: J. Am. Ceram. Soc. Vol. 78 (1995), p.1347.

[7] G. Anné, S. Put, J. Vleugels and O. Van Der Biest: Continuously graded Al2O3/ZrO2 discs made by EPD. In Electrophoretic Deposition: Fundamentals and Applications, eds. A.R. Boccaccini, O. Van der Biest and J. Talbot, The Electrochemical Society, Vol 2002-21, (2002).


[8] J. Vleugels, G. Anné, S. Put and O. Van der Biest: Mater. Sci. Forum Vol. 423-425 (2003), p.171.

[9] M. Taya, S. Hayashi and A. Kobayashi: J. Am. Ceram. Soc. Vol. 73 (1990), p.1382.

[10] S. Suresh and A. Mortenson: Fundamentals of functionally graded materials, The University Press, Cambridge, (1998), pp.100-102.

[11] S. Suresh, A.E. Giannakopoulos and M. Olsson: J. Mech. Phys. Solids Vol. 42 (1994), p.979.
