Microstructure of Al2O3-Fe FGM Obtained by Modified Slip-Casting Method

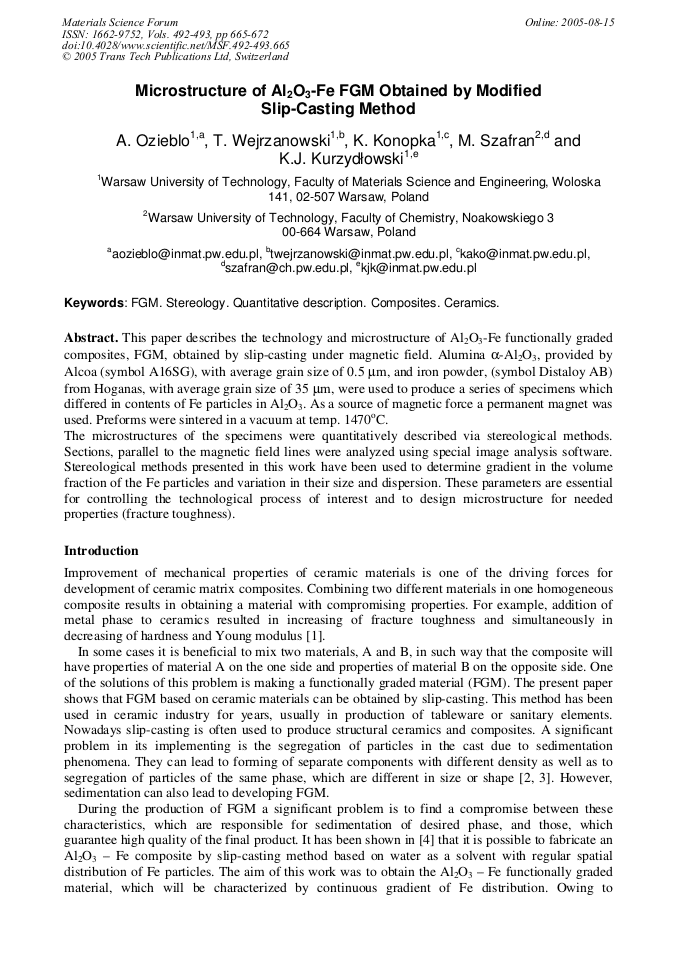

Article Preview

This paper describes the technology and microstructure of Al2O3-Fe functionally graded composites, FGM, obtained by slip-casting under magnetic field. Alumina a-Al2O3, provided by Alcoa (symbol A16SG), with average grain size of 0.5 µm, and iron powder, (symbol Distaloy AB) from Hoganas, with average grain size of 35 µm, were used to produce a series of specimens which differed in contents of Fe particles in Al2O3. As a source of magnetic force a permanent magnet was used. Preforms were sintered in a vacuum at temp. 1470oC. The microstructures of the specimens were quantitatively described via stereological methods. Sections, parallel to the magnetic field lines were analyzed using special image analysis software. Stereological methods presented in this work have been used to determine gradient in the volume fraction of the Fe particles and variation in their size and dispersion. These parameters are essential for controlling the technological process of interest and to design microstructure for needed properties (fracture toughness).



Materials Science Forum (Volumes 492-493)

Edited by:

Omer Van der Biest, Michael Gasik, Jozef Vleugels




A. Ozieblo et al., "Microstructure of Al2O3-Fe FGM Obtained by Modified Slip-Casting Method", Materials Science Forum, Vols. 492-493, pp. 665-672, 2005

Online since:

August 2005




[1] P.A. Trusty, J.A. Yeomans: Journal of the European Ceramic Society vol. 17 (1997).

[2] K. Darcovich , L. Be´ra , K. Shinagawa: Materials Science and Engineering A341 (2003).

[3] L. Drenchev, J. Sobczak, N. Sobczak: Colloids and Surfaces A: Physicochemical and Engineering Aspects 197 (2002), p.203.

DOI: https://doi.org/10.1016/s0927-7757(01)00893-7

[4] A. Oziębło, K. Konopka, T. Wejrzanowski, M. Szafran, K. J. Kurzydłowski: Microstructure of the Al2O3-Fe composite obtained by ceramic slip casting. Materials Week 2002, Munich, Germany (2002).

DOI: https://doi.org/10.4028/www.scientific.net/msf.492-493.665

[5] K. Batorski. Autopuzzle Special Computer software for image processing (2004).

[6] T. Wejrzanowski: Special Computer program for image analysis MicroMeter (2001).
