Determination of an ODF from Diffraction Measurements Based on Optimal Smoothing Splines

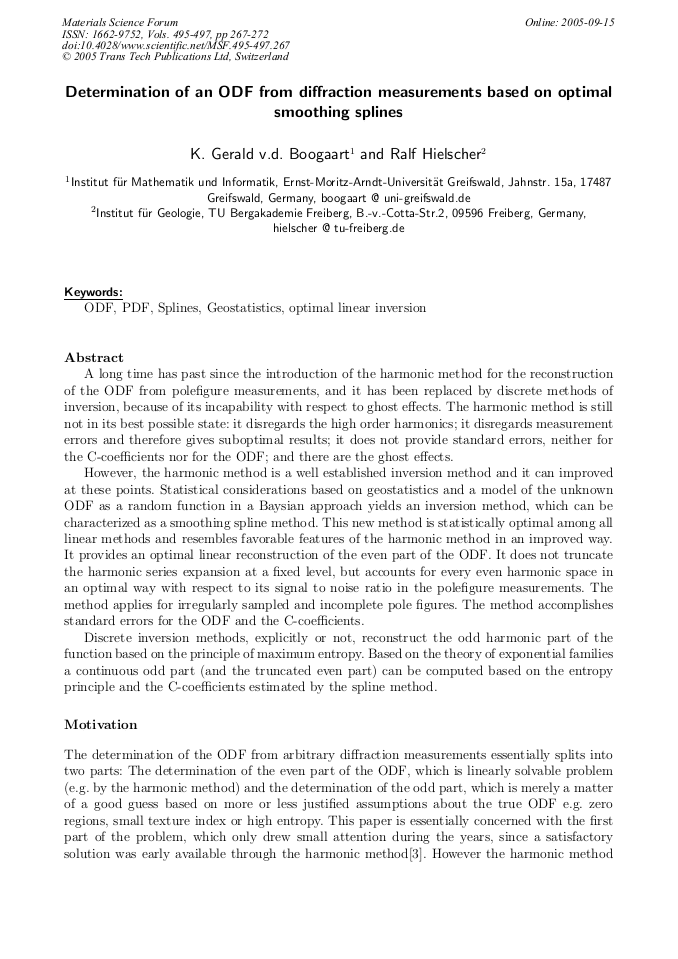

Article Preview

A long time has past since the introduction of the harmonic method for the reconstruction of the ODF from polefigure measurements, and it has been replaced by discrete methods of inversion, because of its incapability with respect to ghost effects. The harmonic method is still not in its best possible state: it disregards the high order harmonics; it disregards measurement errors and therefore gives suboptimal results; it does not provide standard errors, neither for the C-coefficients nor for the ODF; and there are the ghost effects. However, the harmonic method is a well established inversion method and it can improved at these points. Statistical considerations based on geostatistics and a model of the unknown ODF as a random function in a Baysian approach yields an inversion method, which can be characterized as a smoothing spline method. This new method is statistically optimal among all linear methods and resembles favorable features of the harmonic method in an improved way. It provides an optimal linear reconstruction of the even part of the ODF. It does not truncate the harmonic series expansion at a fixed level, but accounts for every even harmonic space in an optimal way with respect to its signal to noise ratio in the polefigure measurements. The method applies for irregularly sampled and incomplete pole figures. The method accomplishes standard errors for the ODF and the C-coefficients. Discrete inversion methods, explicitly or not, reconstruct the odd harmonic part of the function based on the principle of maximum entropy. Based on the theory of exponential families a continuous odd part (and the truncated even part) can be computed based on the entropy principle and the C-coefficients estimated by the spline method.



Materials Science Forum (Volumes 495-497)

Edited by:

Paul Van Houtte and Leo Kestens




K.G. van den Boogaart and R. Hielscher, "Determination of an ODF from Diffraction Measurements Based on Optimal Smoothing Splines ", Materials Science Forum, Vols. 495-497, pp. 267-272, 2005

Online since:

September 2005




[1] Boogaart, K.G. v. d., H. Schaeben: Singular value decomposition of the ODF-PDF projection operator, pp.1363-1368 in Szpunar, J.A. (Editor). 1999. Proceedings of the Twelfth International Conference on Textures of Materials (ICOTOM-12). August 9-13, 1999, Montreal, Quebec, Canada, NRC Research Press, Ottawa, Ontario, Canada. Volume 2, (1999).

[2] Boogaart, K.G. v. d., M. Drobniewski: Kriging the strain tensor based on geodetic, geotechnic and geological observations, Terra Nostra Schriften der Alfred Wegener-Stiftung, 8th Annual Conference of the International Association for Mathematical Geology 15. -20. Sept. 2002, 3/2002, pp.243-248, (2002).

[3] Bunge, H. -J. Mathematische Methoden der Texturanalyse Akademie-Verlag, Berlin, (1969).

[4] Hielscher, R., J. Beckmann, S. Bernstein, K.G. van den Boogaart, J. Prestin, H. Schaeben: PDF-to-ODF Inversion by Approximation with Spherical Radial Basis Functions, Proceedings of ICOTOM 14, 2005, to appear.


[5] Leonhard, T., J.S.J. Hsu: Bayesian Methods, An Analysis for statisticians and interdisciplinary researchers, Cambridge Series in Statistics and Probability, Cambridge, (1999).

[6] Schaeben, H.: Diskrete mathematische Methoden zur Berechnung und Interpretation von kristallographischen Orientierungsdichten, Aachen, erschienen bei DGM Informationsgesselschaft mbH (1994).

[7] Wackernagel, Hans: Multivariate Geostatistics, an introduction with applications, 2nd, completely revised edition, Springer Verlag, Berlin, (1998).

[8] Whaba, Grace: Spline models for observational data Regional conference series in applied mathematics, 1990. This article was processed using the LATEX macro package with TTP style.
