Magnetic Properties and Microstructure of a FeCo Ferritic Steel after Severe Plastic Deformation

Abstract:

Article Preview

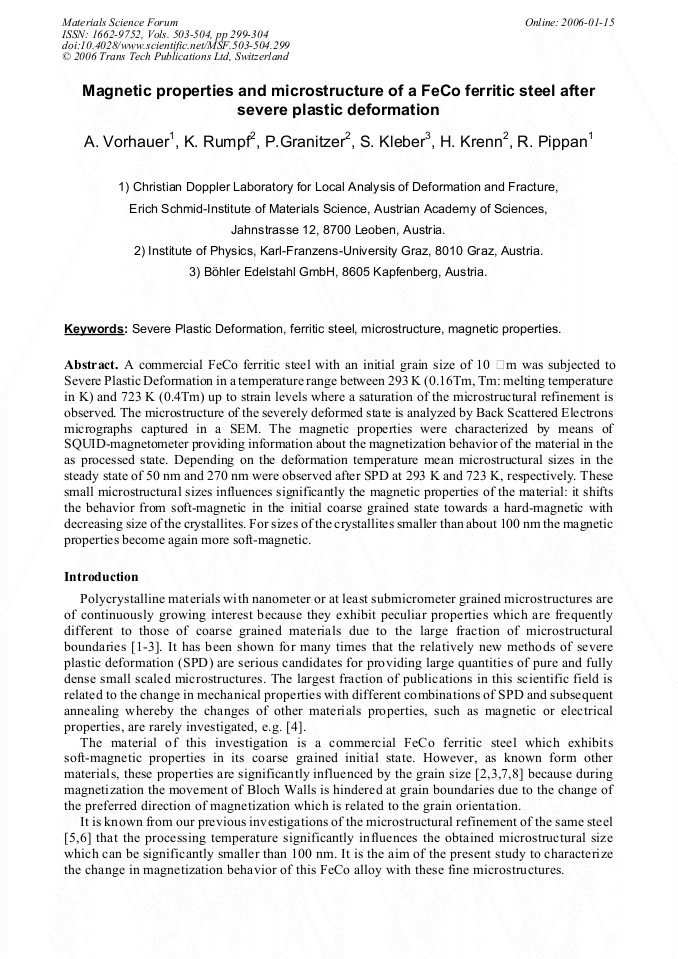

A commercial FeCo ferritic steel with an initial grain size of 10 μm was subjected to Severe Plastic Deformation in a temperature range between 293 K (0.16Tm, Tm: melting temperature in K) and 723 K (0.4Tm) up to strain levels where a saturation of the microstructural refinement is observed. The microstructure of the severely deformed state is analyzed by Back Scattered Electrons micrographs captured in a SEM. The magnetic properties were characterized by means of SQUID-magnetometer providing information about the magnetization behavior of the material in the as processed state. Depending on the deformation temperature mean microstructural sizes in the steady state of 50 nm and 270 nm were observed after SPD at 293 K and 723 K, respectively. These small microstructural sizes influences significantly the magnetic properties of the material: it shifts the behavior from soft-magnetic in the initial coarse grained state towards a hard-magnetic with decreasing size of the crystallites. For sizes of the crystallites smaller than about 100 nm the magnetic properties become again more soft-magnetic.

Info:

Periodical:

Materials Science Forum (Volumes 503-504)

Edited by:

Zenji Horita

Pages:

299-304

DOI:

10.4028/www.scientific.net/MSF.503-504.299

Citation:

A. Vorhauer et al., "Magnetic Properties and Microstructure of a FeCo Ferritic Steel after Severe Plastic Deformation", Materials Science Forum, Vols. 503-504, pp. 299-304, 2006

Online since:

January 2006

Export:

Price:

$35.00

[1] R.Z. Valiev, R.K. Islamgaliev, I.V. Alexandrov: Progress in Materials Science, Vol. 45 (2000), pp.103-189.

[2] G. Herzer, Scripta Metallurgica et Materialia, Vol. 33 (1995), pp.1741-1756.

[3] R. Grössinger, R. Sato, D. Holzer, M. Dahlgren, Advanced Engineering Materials 5 (2003) 285-290.

[4] G.F. Korznikova, A.V. Korzinkova, L.A. Syutina, Kh. Ya. Mulyukov, J. of Magn. Mat. 196-197 (1999), pp.207-208.

[5] A. Vorhauer, S. Kleber, R. Pippan, Proc. of Symp. of Ultrafine grained materials III, TMS (2004), pp.629-634.

[6] A. Vorhauer, S. Kleber, R. Pippan, Influence of processing temperature on micorstructural and mechanical properties of high alloyed single phase steels subjected to severe plastic deformation, accepted for publication in Materials Science and Engineering A (2005).

DOI: 10.1016/j.msea.2005.08.119

[7] R.Z. Valiev, G.F. Korznikova, Kh. Mulyukov, R.S. Mishra, A.K. Mukherjee, Phil. Mag. B 75 (1997) p.803.

[8] H. Gleiter, Nanostruct. Mater. 1 (1992) 1.

[9] A. Vorhauer, R. Pippan, Scripta Mat. 51 (2004) 921- 925.

[10] H.P. Stüwe, Advanced Engineering Materials 5 (2003) 291-294.

[11] H.J. McQueen, E. Evangelista, M.E. Kassner, Zeitschrift f. Metallkunde 82 (1991) 336-345.

[12] E. Nes, K. Marthinsen, Y. Brechet, Scripta Mat. 47 (2002) 607-611.

[13] H.J. McQueen, W. Blum, Mat. Sci. Eng. A290 (2000) 95-107.

[14] P. Cicek, B.P. Wynne, Mat. Sci. Eng. A230 (1997) 88-94.

In order to see related information, you need to Login.
