Low Carbon Low Alloy Submicro-Steel with Nano-Precipitation

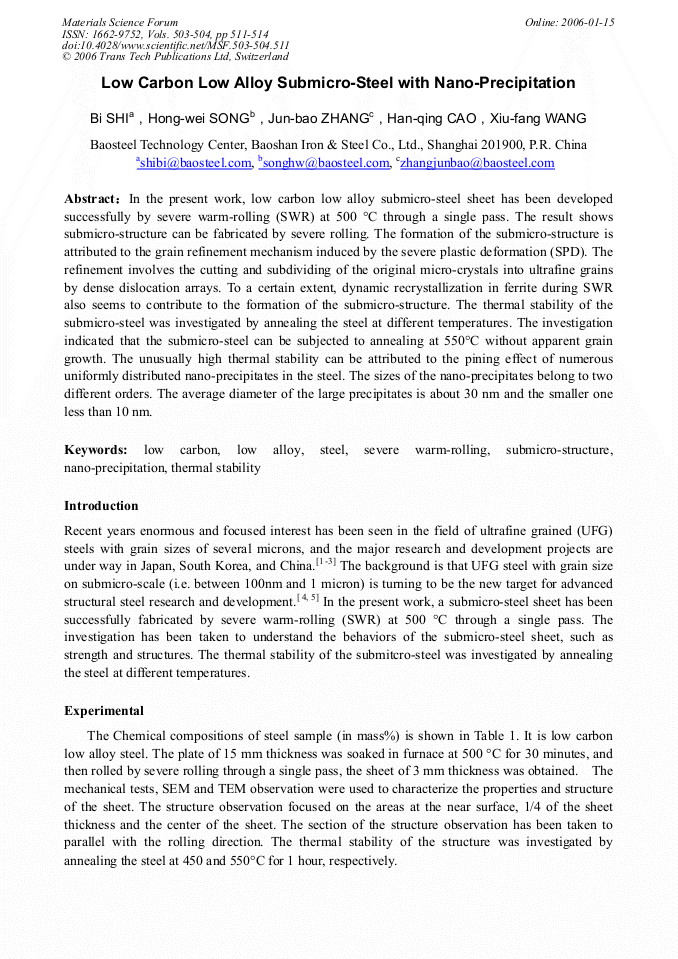

In the present work, low carbon low alloy submicro-steel sheet has been developed successfully by severe warm-rolling (SWR) at 500 °C through a single pass. The result shows submicro-structure can be fabricated by severe rolling. The formation of the submicro-structure is attributed to the grain refinement mechanism induced by the severe plastic deformation (SPD). The refinement involves the cutting and subdividing of the original micro-crystals into ultrafine grains by dense dislocation arrays. To a certain extent, dynamic recrystallization in ferrite during SWR also seems to contribute to the formation of the submicro-structure. The thermal stability of the submicro-steel was investigated by annealing the steel at different temperatures. The investigation indicated that the submicro-steel can be subjected to annealing at 550°C without apparent grain growth. The unusually high thermal stability can be attributed to the pining effect of numerous uniformly distributed nano-precipitates in the steel. The sizes of the nano-precipitates belong to two different orders. The average diameter of the large precipitates is about 30 nm and the smaller one less than 10 nm.
B. Shi et al., "Low Carbon Low Alloy Submicro-Steel with Nano-Precipitation", Materials Science Forum, Vols. 503-504, pp. 511-514, 2006
