Chemical-Assisted Mechanical Polishing of Diamond Film on Wafer

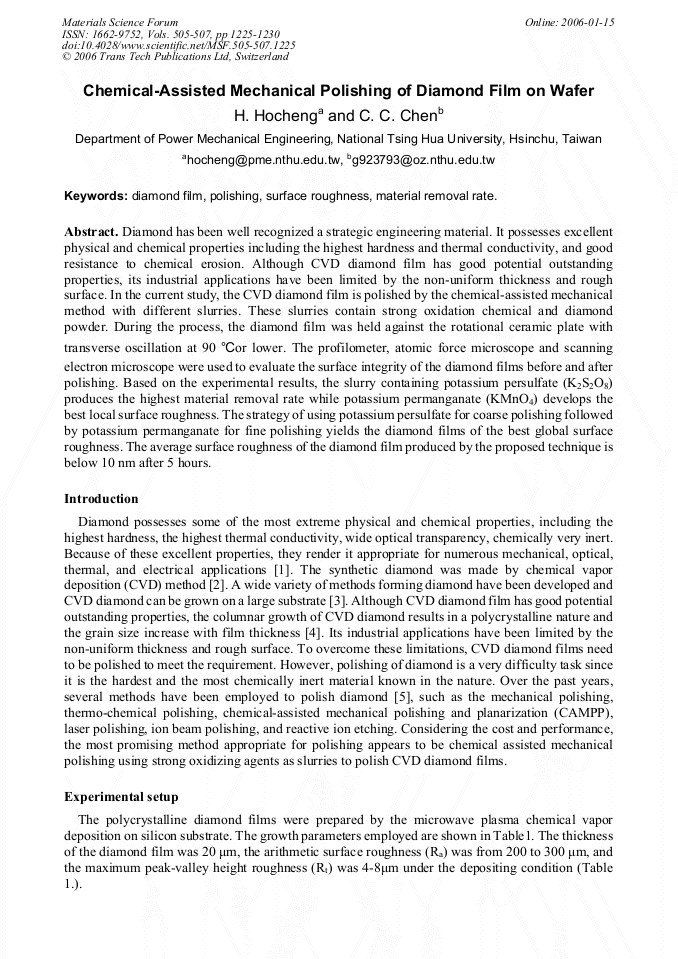

Article Preview

Diamond has been well recognized a strategic engineering material. It possesses excellent physical and chemical properties including the highest hardness and thermal conductivity, and good resistance to chemical erosion. Although CVD diamond film has good potential outstanding properties, its industrial applications have been limited by the non-uniform thickness and rough surface. In the current study, the CVD diamond film is polished by the chemical-assisted mechanical method with different slurries. These slurries contain strong oxidation chemical and diamond powder. During the process, the diamond film was held against the rotational ceramic plate with transverse oscillation at 90 °Cor lower. The profilometer, atomic force microscope and scanning electron microscope were used to evaluate the surface integrity of the diamond films before and after polishing. Based on the experimental results, the slurry containing potassium persulfate (K2S2O8) produces the highest material removal rate while potassium permanganate (KMnO4) develops the best local surface roughness. The strategy of using potassium persulfate for coarse polishing followed by potassium permanganate for fine polishing yields the diamond films of the best global surface roughness. The average surface roughness of the diamond film produced by the proposed technique is below 10 nm after 5 hours.



Materials Science Forum (Volumes 505-507)

Edited by:

Wunyuh Jywe, Chieh-Li Chen, Kuang-Chao Fan, R.F. Fung, S.G. Hanson,Wen-Hsiang Hsieh, Chaug-Liang Hsu, You-Min Huang, Yunn-Lin Hwang, Gerd Jäger, Y.R. Jeng, Wenlung Li, Yunn-Shiuan Liao, Chien-Chang Lin, Zong-Ching Lin, Cheng-Kuo Sung and Ching-Huan Tzeng




H. H. Cheng and C.C. Chen, "Chemical-Assisted Mechanical Polishing of Diamond Film on Wafer", Materials Science Forum, Vols. 505-507, pp. 1225-1230, 2006

Online since:

January 2006




[1] May, P. W., 2000, Diamond thin films, Phil. Trans. R. Soc. Lond. A, 358: 473-495.

[2] Jeng, D. G., Tuan, H. S., Salat, R. F., Fricano, G. J., 1990, Oriented cubic nucleations and local epitaxy during diamond growth on silicon {100} substrates, Appl. Phys. Lett., 56: 1968-(1970).


[3] Bachmann, P. K., van Enckevort, W., 1992, Diamond deposition technologies, Diamond Relat. Mater., 1: 1021-1034.


[4] Graebner, J. E., Jin, S., Kamlott, G. W., Herb, J. A., Gradinier, C. F., 1992, Unusually high thermal conductivity in diamond films, Appl. Phys. Lett., 60: 1576-1578.


[5] Malshe, A. P., Park, B. S., Brown, W. D., Naseem, H. A., 1999, A review of techniques for polishing and planarizing chemically vapor-deposited (CVD) diamond films and substrates Diamond Relat. Mater., 8 : 1198-1213.


[6] Lide, D. R., 2002, CRC handbook of chemistry and physics, CRC Press, Cleveland.
