Prevention of Seizure in Deep Drawing Using Plastic Die

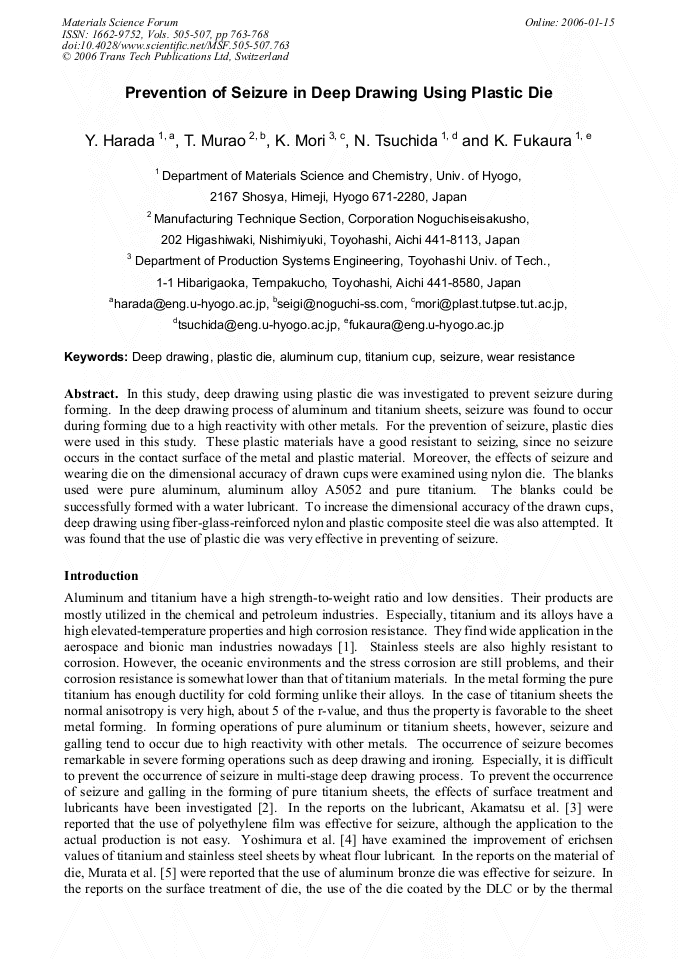

Article Preview

In this study, deep drawing using plastic die was investigated to prevent seizure during forming. In the deep drawing process of aluminum and titanium sheets, seizure was found to occur during forming due to a high reactivity with other metals. For the prevention of seizure, plastic dies were used in this study. These plastic materials have a good resistant to seizing, since no seizure occurs in the contact surface of the metal and plastic material. Moreover, the effects of seizure and wearing die on the dimensional accuracy of drawn cups were examined using nylon die. The blanks used were pure aluminum, aluminum alloy A5052 and pure titanium. The blanks could be successfully formed with a water lubricant. To increase the dimensional accuracy of the drawn cups, deep drawing using fiber-glass-reinforced nylon and plastic composite steel die was also attempted. It was found that the use of plastic die was very effective in preventing of seizure.



Materials Science Forum (Volumes 505-507)

Edited by:

Wunyuh Jywe, Chieh-Li Chen, Kuang-Chao Fan, R.F. Fung, S.G. Hanson,Wen-Hsiang Hsieh, Chaug-Liang Hsu, You-Min Huang, Yunn-Lin Hwang, Gerd Jäger, Y.R. Jeng, Wenlung Li, Yunn-Shiuan Liao, Chien-Chang Lin, Zong-Ching Lin, Cheng-Kuo Sung and Ching-Huan Tzeng




Y. Harada et al., "Prevention of Seizure in Deep Drawing Using Plastic Die", Materials Science Forum, Vols. 505-507, pp. 763-768, 2006

Online since:

January 2006




[1] D. Iijima, T. Yoneyama, H. Doi, H. Hamanaka, N. Kurosaki, Biomaterials, 24 (2003), p.1519.

[2] S. Kataoka, J. Kihara, T. Aizawa, J. Japan Society for Technology of Plasticity, 34-385 (1993), p.210.

[3] T. Akamatsu, S. Ukita, K. Miyasaka, S. Meng, Tetsu-to-Hagane, The Iron and Steel Institute of Japan, 79-9 (1993), p.1122.

[4] H. Yoshimura, T. Hayashi, J. Katayama, E. Fuwa, J. Japan Society for Technology of Plasticity, 40-457 (1999), p.134.

[5] Y. Murata, J. Titanium and Zirconium, 40-2 (1992), p.81.

[6] T. Sato, M. Goto, Y. Maeda, Transaction of the Japan Society of Mechanical Engineers, 66-643 (2000), p.1002.

[7] Y. Harada, K. Mori, T. Murao, M. Imai, Y. Furukawa, F. Okubo, J. Japan Society for Technology of Plasticity, 45-520 (2004), p.336.
