Marangoni Convection and Fragmentation in LASER Treatment

Abstract:

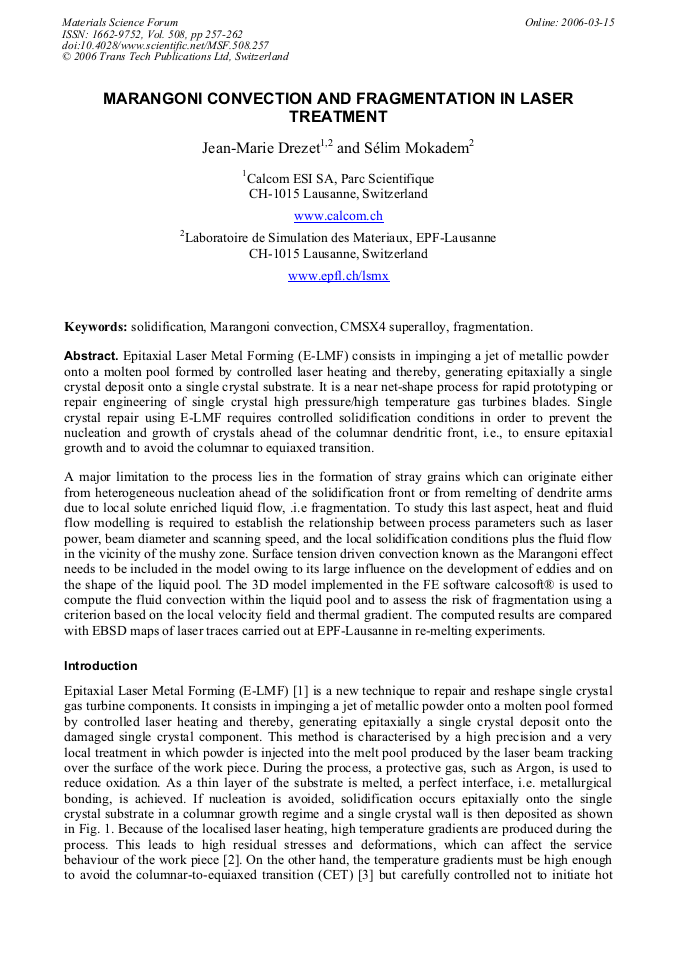

Article Preview

Epitaxial Laser Metal Forming (E-LMF) consists in impinging a jet of metallic powder onto a molten pool formed by controlled laser heating and thereby, generating epitaxially a single crystal deposit onto a single crystal substrate. It is a near net-shape process for rapid prototyping or repair engineering of single crystal high pressure/high temperature gas turbines blades. Single crystal repair using E-LMF requires controlled solidification conditions in order to prevent the nucleation and growth of crystals ahead of the columnar dendritic front, i.e., to ensure epitaxial growth and to avoid the columnar to equiaxed transition. A major limitation to the process lies in the formation of stray grains which can originate either from heterogeneous nucleation ahead of the solidification front or from remelting of dendrite arms due to local solute enriched liquid flow, .i.e fragmentation. To study this last aspect, heat and fluid flow modelling is required to establish the relationship between process parameters such as laser power, beam diameter and scanning speed, and the local solidification conditions plus the fluid flow in the vicinity of the mushy zone. Surface tension driven convection known as the Marangoni effect needs to be included in the model owing to its large influence on the development of eddies and on the shape of the liquid pool. The 3D model implemented in the FE software calcosoft® is used to compute the fluid convection within the liquid pool and to assess the risk of fragmentation using a criterion based on the local velocity field and thermal gradient. The computed results are compared with EBSD maps of laser traces carried out at EPF-Lausanne in re-melting experiments.

Info:

Periodical:

Edited by:

A Roósz, M. Rettenmayr and Z. Gácsi

Pages:

257-262

DOI:

10.4028/www.scientific.net/MSF.508.257

Citation:

J. M. Drezet and S. Mokadem, "Marangoni Convection and Fragmentation in LASER Treatment", Materials Science Forum, Vol. 508, pp. 257-262, 2006

Online since:

March 2006

Export:

Price:

$38.00

[1] M. Gäumann et al., Materials for Advanced Power Engineering, J. Lecomte-Beckeers et al. (eds. ), Germany, (1998).

[2] J. -M. Drezet et al., MCWASP IX, Eds. Sahm, Hansen Conley, Shaker Verlag, Aachen 2000, 806-813.

[3] M. Gäumann, C. Bezençon, P. Canalis and W. Kurz. Acta mater. vol. 49, 2001 pp.1051-1062.

[4] M. Rappaz, J. -M. Drezet and M. Gremaud: A New Hot Tearing Criterium, Met. Trans., vol. 30A, Feb. 1999, p.449.

[5] S. Mokadem et al., Solidification and microstructures: a symposium in honour of W. Kurz, Eds. Rappaz et al., p.67.

[6] D. Rosenthal, Trans. ASME 11 (1946), p.849.

[7] A. F. A Hoadley. M. Rappaz and M. Zimmermann, Met. Trans., 22B, Feb. 1991, pp.101-109.

[8] C. Chan, J. Mazunder and M. M. Chen: Met. Trans., 15A, Dec. 1984, pp.2175-2184.

[9] C. Limmaneevichitr and S. Kou, Welding research supplement, May 2000, pp.126-135 and August 2000, pp.231-237.

[10] J. -M. Drezet et al., Journal de Physique IV, (2004).

[11] calcosoft®, user manual, Calcom SA, http: /www. calcom. ch, CH-1015 Lausanne, Switzerland.

[12] T. Campanella et al., accepted for Met. Trans. A.

[13] M. -C. Flemings, Solidification processing, (1974).

[14] V. Pavlyk and U. Dilthey, Math. Modelling of Weld Phenomena V, 2003, Eds. H. Cerjak, pp.153-163.
