The Cavitation Behavior of Fe-Cr-C-Si-Ni Alloys


Article Preview

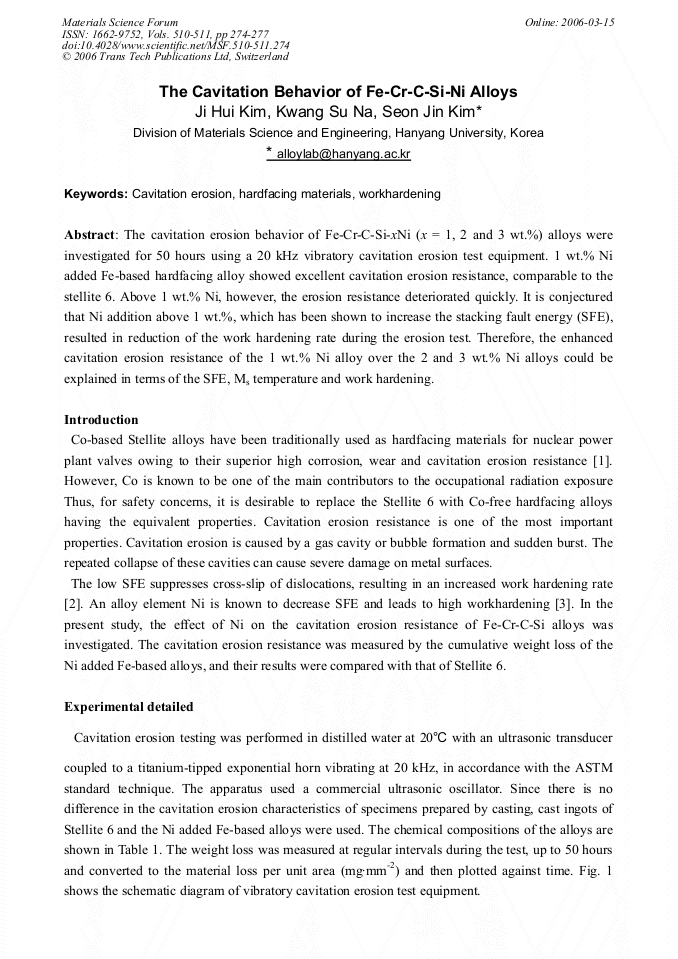

The cavitation erosion behavior of Fe-Cr-C-Si-xNi (x = 1, 2 and 3 wt.%) alloys were investigated for 50 hours using a 20 kHz vibratory cavitation erosion test equipment. 1 wt.% Ni added Fe-based hardfacing alloy showed excellent cavitation erosion resistance, comparable to the stellite 6. Above 1 wt.% Ni, however, the erosion resistance deteriorated quickly. It is conjectured that Ni addition above 1 wt.%, which has been shown to increase the stacking fault energy (SFE), resulted in reduction of the work hardening rate during the erosion test. Therefore, the enhanced cavitation erosion resistance of the 1 wt.% Ni alloy over the 2 and 3 wt.% Ni alloys could be explained in terms of the SFE, Ms temperature and work hardening.



Materials Science Forum (Volumes 510-511)

Edited by:

Hyung Sun Kim, Yu Bao Li and Soo Wohn Lee






J. H. Kim et al., "The Cavitation Behavior of Fe-Cr-C-Si-Ni Alloys", Materials Science Forum, Vols. 510-511, pp. 274-277, 2006

Online since:

March 2006




[1] K.C. Antony, J. Metals, p.52~60.

[2] H. Ocken, Nuclear Tech. Vol. 68, 18~28.

[3] Z. Nishiyama and Y. Shinmomura, J. Jpn. Inst. Met. 12, No. 2/3, 9; No. 5.

[4] S. Vaidya, S. Mahajan, C. M. Preece, Metall. Trans, Vol. 11, 1139~1438.

[5] E.K. Ohriner, T. Wada, E.P. Whelan, H. Ocken, Metall. Trans, A Vol. 22A, 983~991.

[6] Izumiyama, B. E. Protheroe, Wear, Vol. 81, 311~318.

[7] R. Kumar and A.G. Quarrell, J. Iron Steel Inst. Vol. 187, 195~225.

[8] M. Tayal, K. Mukherjee, J. Mater. Sci. 29 (1994) p.5699~5702.

In order to see related information, you need to Login.
